| Marketing Description |

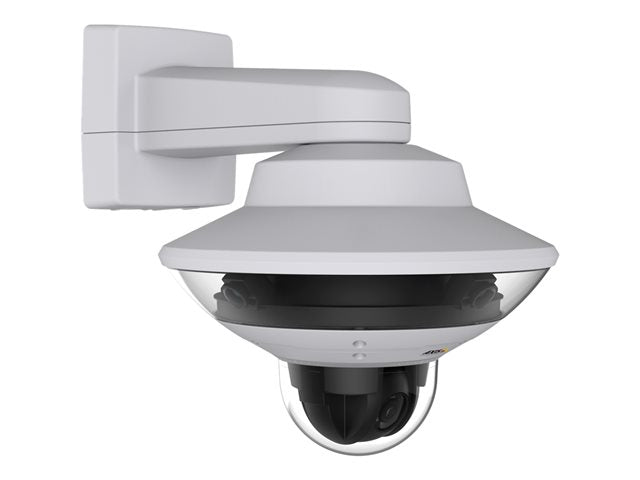

| AXIS Q6000-E Mk II is ideal for city surveillance applications such as monitoring of public squares and parking lots and other open areas. It features four 2-megapixel sensors to provide a complete 360° field of view over large areas. AXIS Q6000-E Mk II is designed for integration with any AXIS Q60-E camera, creating a solution that goes from overview to detail in a single click. In other words, AXIS Q6000-E Mk II gives you the big picture while AXIS Q60-E lets you capture every detail with great precision simultaneously. |
| Product Features |
-
Zero in on problem areas
AXIS Q6000-E Mk II also give you the option of replacing the standard lens in one or more sensors with either a 6 mm or 16 mm tiltable lens and upgrading the resolution to HDTV 1080p. Then you can use that sensor to focus on an area of particular interest.
-
Sharp images, low bandwidth
AXIS Q6000-E Mk II also features Axis' Zipstream technology, which significantly lowers bandwidth and storage requirements while preserving high-quality images and forensic detail.
-
Quick and easy installation
Any AXIS Q60-E is quickly and easily mounted inside the AXIS Q6000-E Mk II. There's no need for extra mounting brackets or other extra equipment because the two cameras use the same brackets and network cable. Power over Ethernet is supplied to both cameras through AXIS Q6000-E Mk II, which simplifies installation even more.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Width |
38.9 cm |
| Depth |
38.9 cm |
| Height |
30.8 cm |
| Weight |
3.55 kg |
| Localisation |
Argentina, Australia, Japan, Korea, Brazil, United Kingdom, United States, European Union |
| Camera |
| Type |
Colour - pan / tilt - outdoor |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1440 |
| Video Modes |
720p, 1080p |
| Exposure Range |
4 sec - 1/45500 sec |
| Minimum Illumination |
0.3 lux - colour - F2.0 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1 GB |
| Flash Memory |
256 MB |
| Features |
Manual exposure, sharpness control, white balance, colour control, progressive scanning, brightness control, temperature warning, contrast control, AXIS Video Hosting System (AVHS), heater, ONVIF support, built-in cooling fan, auto backlight compensation, Privacy Mask Function, active tampering alarm, password protection, 360° monitoring, shock detection |
| Image Sensor |
| Type |
4x2MP CMOS 4 x 1/2.8" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
1.37 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
152 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
2 x LAN - RJ-45 |
| Supported Memory Cards |
SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous |
| Compliant Standards |
C-Tick, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 62262 IK10, EN 50121-4, EN 50581, KN24, KN22 Class A, IEC 60950-22, EN 60950-22, UL 60950-22 |
| Power |
| Power Requirements |
High PoE |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% (non-condensing) |
