| Marketing Description |

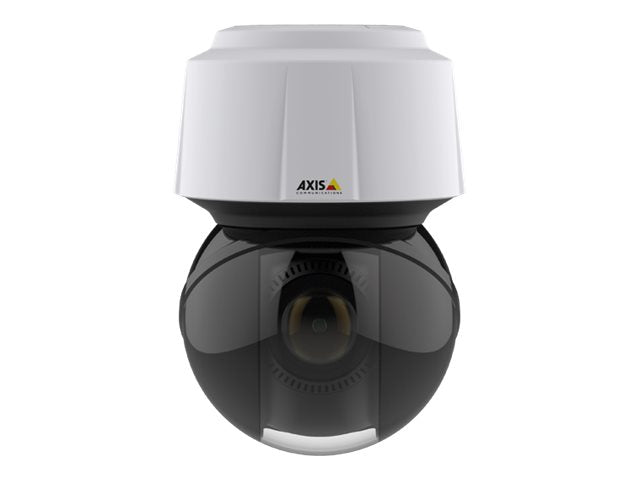

| Axis Q6128-E is a compact, outdoor-ready PTZ dome, offering 4K resolution, 12x optical zoom and autofocus. The 4K resolution provides more detail than the standard HDTV 1080p resolution, improving the video quality significantly. To save bandwidth, you can view live video in HDTV 1080p while recording in 4K for forensic purposes. Quick and precise pan makes it easy to change viewing position and follow fast moving objects. The camera is ideal for sports stadiums, squares, street junctions, open parking places and large open areas in shopping malls. Axis Q6128-E also offers Electronic Image Stabilization, giving smoother video in windy conditions. |
| Product Features |
-
Axis’ Sharpdome technology
Axis’ Sharpdome technology provides full scene fidelity and perfect image quality in all directions - above as well as below the horizon - making AXIS Q6128-E suitable also for uneven terrain. The Sharpdome technology includes Axis’ unique Speed Dry function that gives clear images in rainy weather. It can also simplify dome cleaning, allowing for more efficient methods such as high pressure cleaning.
-
Optimized for maximum reliability
AXIS Q6128-E is designed for reliable, weatherproof installation with built-in protection against dust, strong water jets, rain, snow and sunlight. The camera features defogging and is protected by shock detection that sends an alarm if someone tries to vandalize it.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Width |
16.5 cm |
| Depth |
16.5 cm |
| Height |
25.6 cm |
| Weight |
3 kg |
| Localisation |
Europe |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom - outdoor - weatherproof |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
3840 x 2160 |
| Motion Detection |
Yes |
| Video Modes |
1080p, 4K/25p |
| Digital Zoom |
12 |
| Exposure Range |
1 sec - 1/10000 sec |
| Minimum Illumination |
0.45 lux - colour - F1.8 - 30 IRE
0.03 lux - B&W - F1.8 - 30 IRE |
| Digital Video Capture Resolution |
640 x 360, 3840 x 2160 |
| Frame Rate (max) |
25 frames per second |
| RAM |
1 GB |
| Flash Memory |
256 MB |
| Features |
Backlight Compensation (BLC), manual exposure, sharpness control, digital image freeze, white balance, colour control, progressive scanning, brightness control, image flip, Motion Detection Technology, infrared cut filter, defogger, Electronic Image Stabilizer (EIS), Text Caption Overlay, shock detection |
| Image Sensor |
| Type |
CMOS 1/2.3" |
| Lens Construction |
| Optical Zoom |
12 x |
| Focal Length |
3.9 mm - 46.8 mm |
| Lens Iris |
F/1.8-2.0 auto iris |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
6.2 - 70.7 |
| Vertical Field of View (degree) |
3.5 - 43.5 |
| Panning |
| Range (degree) |
360 |
| Speed (degree/sec) |
Up to 700 |
| Tilting |
| Range (degree) |
-90 to +20 |
| Speed (degree/sec) |
Up to 500 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous |
| Included Accessories |
AXIS High PoE Midspan (1 port), IP66-rated RJ45 connector kit |
| Compliant Standards |
C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, IEC 60529 IP66, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, KN24, IEC 60950-22, EN 60950-22, UL 60950-22 |
| Power |
| Power Requirements |
High PoE |
| Power Device |
Power injector - external AC 120/230 V |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-50 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
