| Marketing Description |

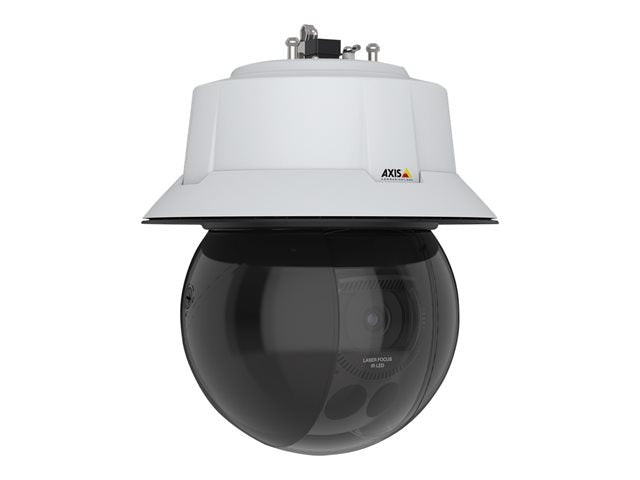

| Ideal for city surveillance, AXIS Q6315-LE offers a ½" sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather. |
| Product Features |
-
Robust environmental adaptability
Designed to withstand extreme temperatures ranging from -50°C to 50°C, ensuring reliable operation in any weather condition.
-
Advanced optical performance
Features a motorized zoom lens with a focal length range of 6.91 mm to 214.64 mm, P-Iris for precise iris control, and auto focus adjustment, delivering sharp and clear images across varying distances.
-
Comprehensive surveillance coverage
Equipped with pan, tilt, and zoom capabilities, along with a high-speed panning range of 360 degrees and tilting speed up to 500 degree/sec, this camera ensures wide area coverage and detailed surveillance.
-
Exceptional night vision
Infrared LEDs provide clear visibility up to 300 m in complete darkness, complemented by Lightfinder technology for enhanced low light performance and OptimizedIR for balanced illumination.
-
High-quality video output
Supports multiple digital video formats including H.265 and H.264, with a maximum resolution of 1920 x 1080 at 50 frames per second, ensuring detailed and smooth video capture.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Width |
23.9 cm |
| Depth |
23.9 cm |
| Height |
26.1 cm |
| Weight |
4.8 kg |
| Localisation |
Europe |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Digital Video Format |
MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Digital Zoom |
12 |
| Exposure Range |
1/2 sec - 1/111000 sec |
| Minimum Illumination |
0.06 lux - colour - F1.36 - 30 IRE
0.001 lux - B&W - F1.36 - 30 IRE
0.09 lux - colour - F1.36 - 50 IRE
0.008 lux - B&W - F1.36 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
300 m |
| Frame Rate (max) |
50 frames per second |
| RAM |
1024 MB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, digital image rotation, digital image freeze, white balance, colour control, progressive scanning, brightness control, Wide Dynamic Range (WDR), infrared cut filter, built-in IR illuminator, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, password protection, shock detection, Variable Bitrate (VBR), OptimizedIR, 300 preset positions, Forensic Capture (120 dB), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Sharpdome technology, laser focus, exposure control, IP address filtering, tour recording, guard tour, HTTPs encryption, event tracking, auto tracking 2.0, TPM 2.0 module, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, Nadir flip, Machine learning processing unit (MLPU) |
| Image Sensor |
| Type |
2 MP CMOS 1/2" |
| Lens Construction |
| Type |
Motorized zoom |
| Optical Zoom |
31 x |
| Focal Length |
6.91 mm - 214.64 mm |
| Lens Iris |
F/1.36-4.6 auto iris (P-Iris) |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
2 - 60.6 |
| Vertical Field of View (degree) |
1.1 - 36.5 |
| Panning |
| Range (degree) |
360 |
| Speed (degree/sec) |
Up to 550 |
| Tilting |
| Range (degree) |
-20 to +90 |
| Speed (degree/sec) |
Up to 500 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, SSH, QOS, CIFS, SRTP, SFTP, NTCIP, USGv6, MQTT |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous |
| Included Accessories |
AXIS High PoE Midspan (1 port), IP66-rated RJ45 connector kit |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, IEC 60825-1 Class 1, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, ISO 21207, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP66, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, FCC Part 15 Subpart B |
| Colour |
White |
| Power |
| Power Requirements |
High PoE |
| Power Device |
Power injector - external AC 100-240 V |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-50 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% (non-condensing) |
