| Marketing Description |

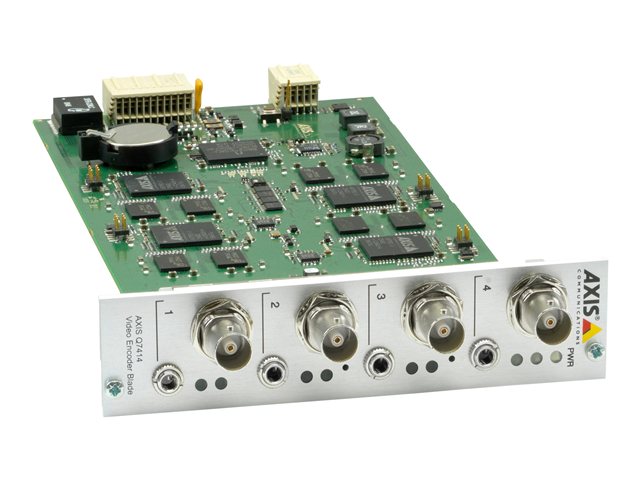

AXIS Q7414 Video Encoder Blade is a 4-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system.
AXIS Q7414 supports high performance H.264, with true multi-streaming from each channel. It can provide multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1. Motion JPEG is also supported for increased flexibility. |
| Product Features |
-
High-density video encoder rack solution
AXIS Q7414 Video Encoder Blade is a 4-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. When AXIS Q7414 blades are used with AXIS Q7900 rack, up to 56 analog cameras can be supported in one 4U, 19-inch rack.
-
Outstanding compression capabilities
AXIS Q7414 supports high performance H.264, with true multi-streaming from each channel. It can provide multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1. Motion JPEG is also supported for increased flexibility.
-
Intelligent video capabilities
AXIS Q7414 offers intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection. The encoder's external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.
-
Wide range of analog PTZ cameras supported
All Axis video encoders connect to analog Pan/Tilt/Zoom (PTZ) cameras to allow for easy operation across the IP network. Axis' open policy ensures simple and fast integration with most analog PTZ cameras on the market.
|
| General |
| Device Type |
Video server |
| Video Channels |
4 |
| Audio Channels |
4 |
| TV System |
NTSC/PAL |
| Image Resolution |
176x120 (NTSC), 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL) |
| Compression Format |
MJPEG, H.264 |
| Package Content |
Software, video server |
| Software Included (Y) |
Drivers & Utilities |
| Country Kits |
United Kingdom, United States, Europe |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1 |
| Warranty |
3 years |
| Video Server |
| Frame Rate |
25 fps (PAL), 30 fps (NTSC) |
| CPU |
4 x ARTPEC-3 |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
PTZ support, PAL/NTSC auto-sensing input, video motion detector |
| Networking |
| DDNS Support |
Yes |
| Web Server |
Yes |
| Network Interfaces |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, IGMP, QOS |
| Features |
E-mail alert, IP address filtering |
| Connections |
| Video Input Ports |
BNC x 4 |
| Audio Input Ports |
Mini-phone mono 3.5 mm x 4 |
| Camera Control Interface (PTZ) |
RS-422/485 |
| Network Port |
10/100/1000Base-T |
| Dimensions & Weight |
| Width |
12.9 cm |
| Depth |
25.5 cm |
| Height |
3 cm |
| Weight |
229 g |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
