| Marketing Description |

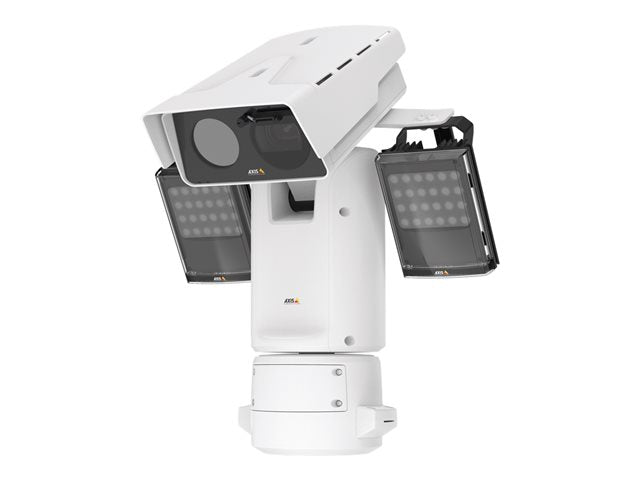

| Ideal for perimeter surveillance and border control, AXIS Q8752-E offers reliable thermal detection and visual identification with x32 integrated optical zoom in one bispectral camera. AXIS Q8752-E Zoom delivers 3x thermal zoom allowing you to detect a human as far as 3 km (3342 yards) according to Johnson's criteria. 35 mm thermal model is also available. It features Electronic Image Stabilization (EIS) on both channels and smooth PTZ operation. |
| Product Features |
-
Always see what you need to see
AXIS Q8752-E gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. You can assign color or shading to individual pixels based on their thermal energy and quickly highlight areas of interest within the scene. Electronic Image Stabilization (EIS) on both channels helps deliver smooth video even in situations where the camera is subject to vibrations. Furthermore, Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness.
-
Powerful analytics platform
This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. And, it's audio-ready, so it's easy to add audio capabilities by connecting a microphone. Built on a powerful analytics platform, it's easy to add custom-made third-party analytics. For instance, if you're exposed to incidents that involve aggressive behavior, gunshots, or breaking glass, AXIS Q8752-E can automatically alert you about potential and real incidents as they occur enabling quick, relevant responses.
-
Robust and secure
This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach. With IP66, NEMA 2TS, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it's possible to connect AXIS Q8752-E using fiber optic cabling to overcome distance and bandwidth limitations. This means you can install the camera in out-of-the-way locations, far from any server or switch with fewer cables and connectors required. Furthermore, with thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.
|
| General |
| Device Type |
Thermal / network surveillance camera |
| Audio Support |
Yes |
| Audio Formats |
LPCM, AAC-LC, ADPCM, G.711, OPUS |
| Camera Mount Type |
Wall mount, pole mount, corner mount |
| Connectivity Technology |
Wired |
| Width |
24.4 cm |
| Depth |
36 cm |
| Height |
58.2 cm |
| Weight |
14.7 kg |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom - outdoor |
| Digital Video Format |
MJPEG, H.264, H.265, MPEG-4, AVC, HEVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Digital Zoom |
12 |
| Exposure Range |
2 sec - 1/66500 sec |
| Minimum Illumination |
0.09 lux - colour - F1.4 - 30 IRE
0.008 lux - B&W - F1.4 - 30 IRE
0.06 lux - colour - F1.4 - 50 IRE
0.01 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution |
320 x 180, 1920 x 1080, 1080p |
| Frame Rate (max) |
30 frames per second |
| RAM |
2048 MB |
| Flash Memory |
512 MB |
| Features |
Zipstream technology, Lightfinder 2.0 technology, electronic image stabilisation, 35 mm thermal lens, infrared-cut filter, 256 preset positions, guard tour, on-screen directional indicator, saturation control, contrast control, brightness control, sharpness control, Forensic WDR, Forensic Capture (120 dB), white balance, tone correction, exposure control, exposure zone, defogging, compression, 32 preset positions, Electronic Image Stabilizer (EIS), simplex audio, echo reduction, noise reduction, password protection, IP address filtering, HTTPs encryption, Access Control, digest authentication, secure boot, TPM 2.0 module, tamper-detection, PTZ ready, text overlay, Pixel Counter Support, surge protection, Voltage Transient Protection, 30 fps on thermal mode, 384x total zoom |
| Image Sensor |
| Type |
2 MP CMOS 1/2.8" |
| Lens Construction |
| Optical Zoom |
32 x |
| Focal Length |
4.3 mm - 137.6 mm |
| Lens Iris |
F/1.4-4.0, f/1.2 (thermal) auto iris |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
2.4 - 58.5 |
| Vertical Field of View (degree) |
1.3 - 35 |
| Panning |
| Range (degree) |
360 |
| Speed (degree/sec) |
Up to 120 |
| Tilting |
| Range (degree) |
-90 to +45 |
| Speed (degree/sec) |
Up to 65 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
IPv4, ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MQTT, NTCIP, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2, SNMP 3, SOCKS, SRTP, SSH, SSL, TLS, UPnP, USGv6 |
| Expansion / Connectivity |
| Ports |
LAN - SFP
LAN - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Connector kit, torx bits T20 and T30 |
| Compliant Standards |
IEEE 802.1x, FIPS 140-2, IP66, IK10, NEMA Type 4X, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 35, EN 50121-4, EN 50498, EN 55032 Class A, EN 60068-2-1, EN 60068-2-14, EN 60068-2-2, EN 60068-2-27, EN 60068-2-6, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC 62262 IK10, IEC/EN 60529 IP66, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, ISO 21207 method B, KN32 Class A, KN35, MIL-STD 810G 501.5, MIL-STD 810G 502.5, MIL-STD 810G 505.5, MIL-STD 810G 506.5, MIL-STD 810G 509.5, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NIST SP500-267, VCCI Class A ITE |
| Colour |
White |
| Power |
| Power Requirements |
AC 20 V / DC 28 V |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
10 - 100% |
