| Marketing Description |

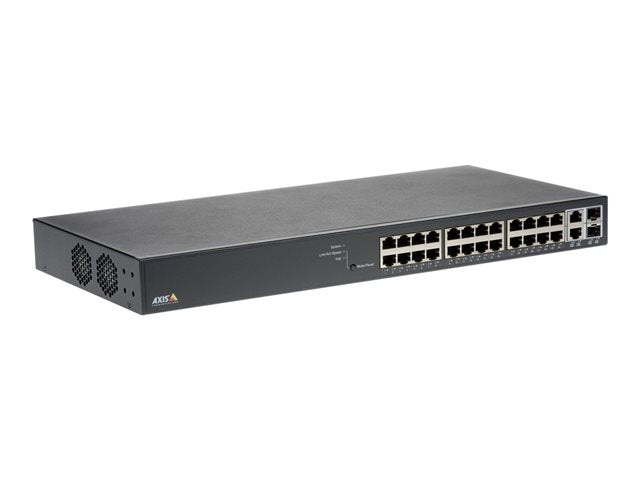

| AXIS T8524 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with a unique web graphic user interface with topology for easy overview and management of all devices in the system. |
| Product Features |
-
Robust performance
With a throughput of 38.7 Mpps and a switching capacity of 52 Gbps, the Axis T8524 PoE+ Network Switch ensures efficient data handling for high-demand networks.
-
Comprehensive connectivity
Featuring 24 PoE+ ports and 4 uplink ports, including 2 RJ-45 and 2 SFP slots, this switch offers versatile connection options for a wide range of devices.
-
Enhanced security
The switch supports 802.1x authentication, Access Control List (ACL) support, and HTTPS encryption, providing a secure network environment by protecting against unauthorized access.
-
High durability
Encased in a metal housing and equipped with 6 kV surge protection, the Axis T8524 is built to withstand harsh environments and ensure long-term reliability.
-
Efficient network management
Manageable via HTTP, HTTPS, SNMP, and SSH, this switch offers flexible options for network configuration and monitoring, making it easy to maintain optimal network performance.
|
| General |
| Device Type |
Switch - 24 ports - Managed |
| Enclosure Type |
Desktop, rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
370 W |
| Performance |
Throughput: 38.7 Mpps
Switching capacity: 52 Gbps |
| MAC Address Table Size |
8K entries |
| Jumbo Frame Support |
9216 bytes |
| Routing Protocol |
IGMP |
| Remote Management Protocol |
SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SMTP |
| Authentication Method |
Secure Shell (SSH) |
| Features |
DHCP support, ARP support, VLAN support, IP address filtering, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, LLDP support, NAC, 802.1x authentication, metal housing, administrator's password, BPDU, ICMP, 6KV Surge protection, NTP, LLDP-MED, UDP, HTTPS encryption |
| Compliant Standards |
IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, UPnP |
| Expansion / Connectivity |
| Interfaces |
24 x 1000Base-T RJ-45 PoE+ - 30 W
2 x 1000Base-T RJ-45 uplink
2 x 1000Base-X SFP uplink |
| Power |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Colour |
Black |
| Included Accessories |
4 rubber feet, 19" ear rack kit |
| Rack Mounting Kit |
Included |
| Compliant Standards |
SASO, EN55024, JATE, ICES-003 Class A, FCC Part 15 B Class A, VCCI Class A, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1 |
| Software / System Requirements |
| Software Included |
Axis Camera Management |
| Dimensions & Weight |
| Width |
44.2 cm |
| Depth |
21.1 cm |
| Height |
4.4 cm |
| Weight |
3.2 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-10 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 95% (non-condensing) |
| Compatibility Information |
| Designed For |
AXIS A1610-B, C1410, D3110, M3067-P, M3068-P, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, W400
AXIS Camera Station S1216 Recording Server, S1232, S1296 |
