| Marketing Description |
| lAXIS T8640 Ethernet over Coax Adaptor PoE+ is an ideal choice for installation of network cameras where coax cables are already present and may be very long or inaccessible. AXIS T8640 Ethernet over Coax Adaptor PoE+ enables IP-communication over existing coax video cabling and converts an analog system to digital. |
| Product Features |
-
Convert analog to digital
AXIS T8640 Ethernet over Coax Adaptor PoE+ is an ideal choice for installation of network cameras where coax cables are already present and may be very long or inaccessible. AXIS T8640 Ethernet over Coax Adaptor PoE+ enables IP-communication over existing coax video cabling and converts an analog system to digital.
-
Full-rate network connection

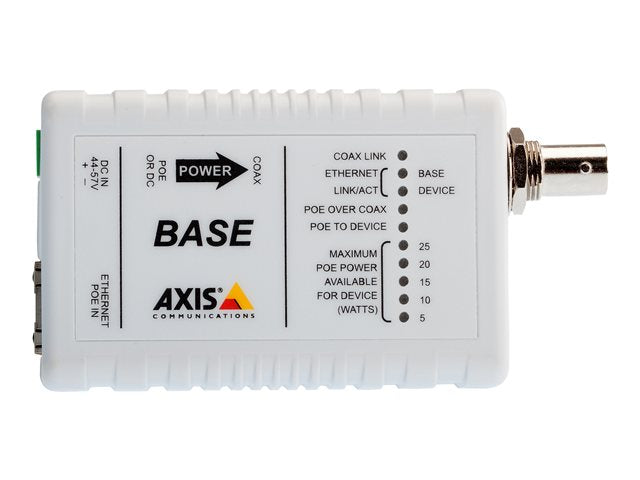

AXIS T8640 comprises AXIS T8641 Ethernet over Coax Base Unit PoE+ and AXIS T8642 Ethernet over Coax Device Unit PoE+. It can also be used in those installations that require PoE transmissions over 100 m. A full-rate network connection is delivered over maximum cable ranges of 500 m, which far exceed most recommended distances for analog video installation.
Easy to install
For ease of installation and guaranteed performance, AXIS T8640 features an intuitive LED display, which gives confirmation of network and power status via the cable, with no need to access remote equipment to check connections.
|
| General |
| Packaged Quantity |
2 (specifications are for single item) |
| Device Type |
Media converter |
| Form Factor |
External |
| Networking |
| Connectivity Technology |
Wired |
| Cabling Type |
10Base-T, 100Base-TX |
| Data Link Protocol |
10Mb LAN, 100Mb LAN |
| Data Transfer Rate |
100 Mbps |
| Status Indicators |
PoE, link/activity |
| Features |
Full duplex mode, wall mountable, DIN rail mountable |
| Compliant Standards |
IEEE 802.3af, IEEE 802.3at |
| Expansion / Connectivity |
| Interfaces |
1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
1 x network - BNC female |
| Miscellaneous |
| Compliant Standards |
EN55024, EN55022 Class A, EN55022 Class B, RoHS, WEEE, FCC CFR47 Part 15 B |
| Power |
| Power Over Ethernet (PoE) |
PoE |
| Dimensions & Weight |
| Width |
5.4 cm |
| Depth |
2.4 cm |
| Height |
10.4 cm |
| Weight |
140 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
50 °C |
| Compatibility Information |
| Designed For |
AXIS C1410, D3110, M3067-P, M3068-P, M3085-V, M3086-V, M5075-G, P1346 Network Camera, P1346 Network Camera (Barebone), P1346-E Network Camera, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, P5534 PTZ Dome Network Camera, P5534-E PTZ Dome Network Camera, Q1656, Q1656-B, Q1715, Q1942-E PT Mount, W400 |
