| Marketing Description |
| The ASR 900 Series is a modular aggregation platform that delivers cost-effective converged mobile, residential, and business services. You get redundancy, a shallow depth, low power consumption, and high service scale in routers packed with useful features and optimized for small aggregation and remote point-of-presence (POP) applications. |
| Product Features |
-
Broadband aggregation
Deliver a greatly enhanced broadband customer experience. This series supports broadband aggregation for voice, video, data, and mobility services. It supports thousands of subscribers, and QoS scales to a large number of queues per device.
-
Pre-aggregation for mobile applications
Deployed as a pre-aggregation platform for mobile backhaul, the series can aggregate cell sites and use MPLS as a transport for RAN backhaul traffic.
-
Timing services
Get the timing services required in today's converged access networks. The series offers integrated support for a variety of interfaces and can act as the source for network clocking for GPS and other interfaces.
-
Suitable for harsh environments
Because of its shallow depth and qualification for extended temperature ranges, the series can be deployed in small and harsh environments.
-
Metro Ethernet Aggregation
Built to meet service provider requirements for Carrier Ethernet aggregation, the series is optimized for remote central office and smaller sites that need a full-featured, modular, small-footprint, fully redundant aggregation platform.
|
| General |
| Device Type |

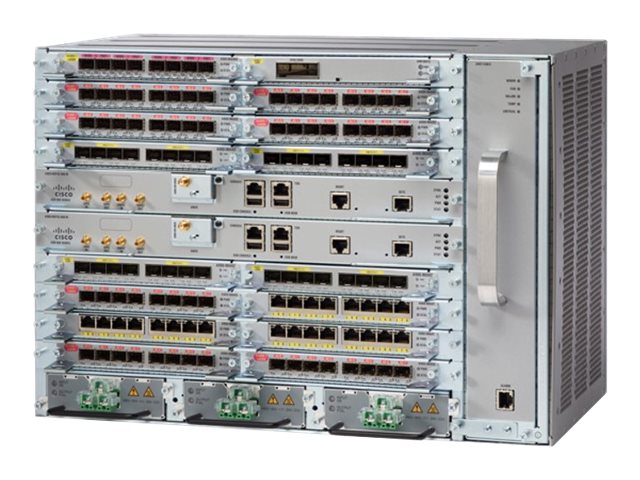

Modular expansion base - with 8 x ASR 9XX Carrier card for 2 IMA modules A9XX-2IMA-CARRIER |
| Enclosure Type |
Side to side airflow desktop, rack-mountable - modular - 7U |
| Connectivity Technology |
Wired |
| Features |
Quality of Service (QoS), fan tray, In-Service Software Upgrade (ISSU) |
| Compliant Standards |
NEBS level 3, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 50121-4, EN 55022 Class A, EN 300 386 |
| Expansion / Connectivity |
| Expansion Slots |
16 (total) / 16 (free) x expansion slot
2 (total) / 2 (free) x Route Switch Processor (RSP) |
| Installed Modules Qty (Max) |
0 (installed) / 18 (max) |
| Power |
| Power Device |
Internal power supply (not installed) |
| Power Redundancy |
Yes |
| Installed Qty |
3 (max) |
| Miscellaneous |
| Included Accessories |
Network cable |
| Rack Mounting Kit |
Included |
| MTBF |
1,585,000 hour(s) |
| Dimensions & Weight |
| Width |
31.04 cm |
| Depth |
44.3 cm |
| Height |
23.4 cm |
| Weight |
15.9 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
65 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
