| Marketing Description |
The Cisco Business 240AC Access Point multi-pack of three access points deliver high density MU-MIMO (4x4) wireless connectivity for small offices to get up and running quickly. Designed with simplicity, flexibility, and security in mind, the Cisco Business 240AC bundle provides superior performance and enhanced range for an optimal user experience.
Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network. |
| Product Features |
-
PERFORMANCE
Superior MU-MIMO (4x4) performance of three access points, each supporting up to 200 wireless devices and a maximum wireless coverage up to 3000 square feet
-
DEPLOYMENT

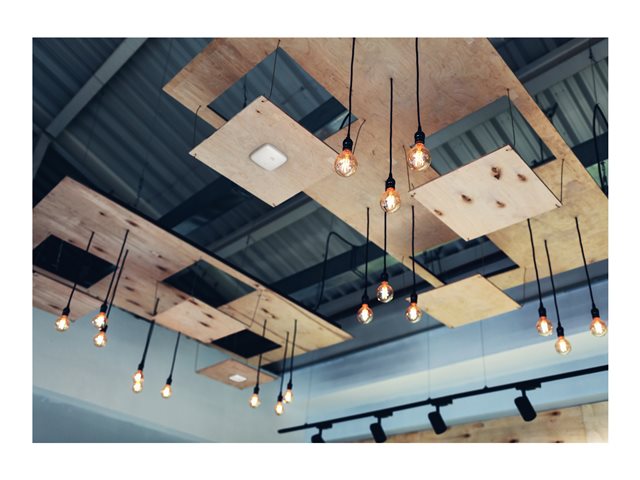

Flexible deployment wall or celling mount (brackets included) with Power over Ethernet (PoE) support
-
ENHANCED COVERAGE
Supports up to 25 mesh extenders while delivering a reliable user experience
-
SET UP IN MINUTES
Simplify management and monitor your network from the Cisco Business Mobile app or Web browser
-
ADVANCED SECURITY
Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
|
| General |
| Packaged Quantity |
3 (specifications are for single item) |
| Device Type |
Radio access point |
| Width |
17.8 cm |
| Depth |
17.8 cm |
| Height |
3.8 cm |
| Weight |
430 g |
| Processor / Memory / Storage |
| RAM |
1 GB |
| Flash Memory |
256 MB |
| Networking |
| Form Factor |
External |
| Connectivity Technology |
Wireless |
| Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band |
2.4 GHz, 5 GHz |
| Performance |
Maximum data rate (5 GHz): 1733 Mbps |
| Capacity |
Wireless clients per Wi-Fi radio: 200
Wireless clients: 400
VLANs supported: 16 |
| Status Indicators |
Status |
| Features |
VLAN support, manageable, DFS support, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, beamforming technology, Authentication, Authorization and Accounting (AAA), 4x4 MU-MIMO technology |
| Encryption Algorithm |
AES, TLS, PEAP, TTLS, WPA2, WPA3 |
| Authentication Method |
RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Compliant Standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Aerial |
| Antenna |
Internal |
| Antenna Qty |
2 |
| Directivity |
Omni-directional |
| Expansion / Connectivity |
| Interfaces |
2 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous |
| Compliant Standards |
EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, CECP, EN 62209-1, SRRC, CNS 13438, EN 50385, EN 61000-3-3:2013, CISPR 24:2010, EN 62209-2, EN 60601-1-1, EN 61000-3-2:2014, LP0002, RSS-247, NRCAN, KN32, EN 55032:2012+AC:2013 Class A, TCVN 7189, EN 55032:2015, ICES-003 issue 6 Class B, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 V3.1.1 (2017), EN 300 328 V2.1.1, EN 55035, AS/NZS 2772, EN 301 489-1 V2.1.1:2017, AS/NZS CISPR 32:2015, CISPR 32:2015, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017 |
| Power |
| Power Over Ethernet (PoE) Supported |
PoE+ |
| Power Consumption Operational |
13.2 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
