| Marketing Description |

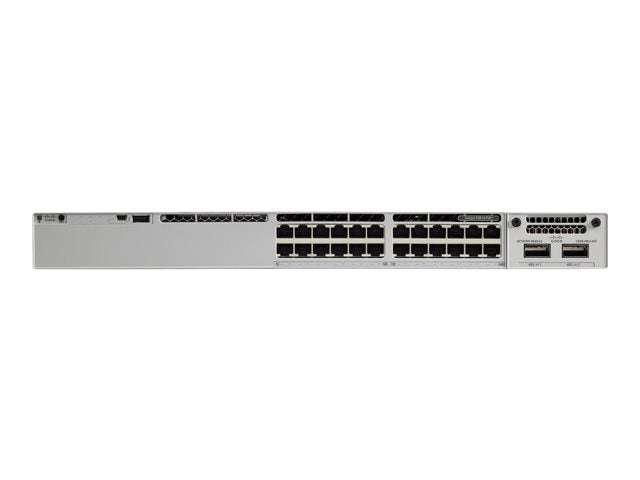

| The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud. |
| Product Features |
-
Cloud ready
Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
-
Optimized for mobility
Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.
|
| General |
| Device Type |
Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
10 Gigabit Ethernet |
| Ports |
24 x 100/1000/2.5G/5G/10GBase-T (UPOE) |
| Power Over Ethernet (PoE) |
UPOE |
| PoE Budget |
560 W |
| Performance |
Switching capacity: 640 Gbps
Switching capacity with stacking: 1.12 Tbps
Forwarding rate: 476.19 Mpps
Forwarding rate with stacking: 833.33 Mpps |
| Capacity |
IPv4 routing table entries: 64000
IPv6 routing table entries: 32000
Flexible NetFlow entries: 256000
VLAN IDs: 4094
Switched virtual interfaces (SVIs): 2000
QoS scale entries: 18000
ACL scale entries: 18000 |
| MAC Address Table Size |
64K entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm |
128-bit AES |
| Features |
Trunking, full duplex mode, WRED, STP support, ACL support, QoS, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, FTP client, 3 fans, CoPP, 64MB packet buffer, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM |
16 GB |
| Flash Memory |
16 GB |
| Status Indicators |
Status |
| Expansion / Connectivity |
| Interfaces |
24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
1 x USB 2.0 |
| Expansion Slots |
1 (total) / 1 (free) x Expansion Slot |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Provided |
1100 Watt |
| Voltage Required |
AC 120/230 V (50 - 60 Hz) |
| Miscellaneous |
| MTBF |
288.520 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements |
| Software Included |
Cisco Network Essentials |
| OS Required |
Cisco IOS Universal |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
51.3 cm |
| Height |
4.39 cm |
| Weight |
8.25 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
5 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 90% (non-condensing) |
