| Marketing Description |
The Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence. |
| Product Features |
-
Robust capacity
Designed to meet the demands of modern networks, the Cisco Catalyst 9300L offers impressive capacity with up to 32,000 IPv4 routes, 16,000 IPv6 routes, 8,000 multicast scale, and significant QoS and ACL scale entries, ensuring efficient traffic management and security.
-
Advanced networking
Equipped with Layer 3 advanced switching capabilities, the Cisco Catalyst 9300L supports a wide range of protocols and standards, including IEEE 802.1D/Q/p/s/w/x, 802.3/u/x/z, and more. Features like 802.1x authentication, MACsec support, and Flexible NetFlow (FNF) provide enhanced security and traffic analysis options.
-
High resilience
The device's support for hot-plug power supplies and dual power supply slots ensures uninterrupted operation and greater resilience in various operational environments. This, combined with a comprehensive range of compliant standards, makes the Cisco Catalyst 9300L a reliable choice for critical network infrastructure.
-
Efficient environmental adaptability
With its operational humidity range of 5 - 90% (non-condensing) and a wide temperature storage range from -40°C to 70°C, the Cisco Catalyst 9300L is built to withstand challenging environmental conditions, ensuring reliability and longevity.
-
Comprehensive remote management
Offering a variety of remote management protocols including CLI, NETCONF, RESTCONF, RMON 1/2, and SNMP 1/2c/3, the Cisco Catalyst 9300L enables efficient and flexible network management, catering to the needs of complex modern networks.
|
| General |
| Device Type |

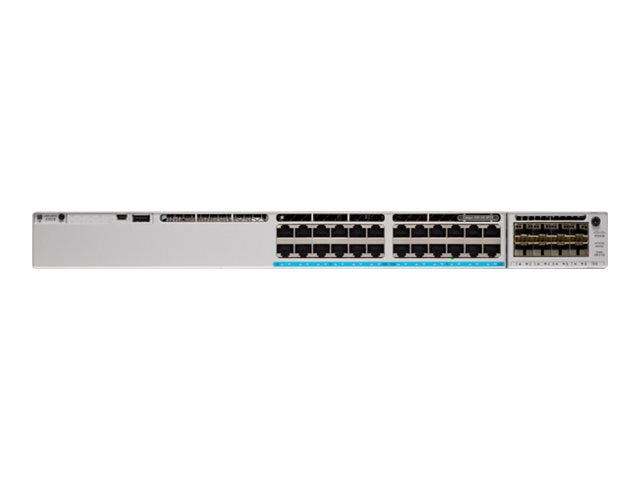

Switch - 24 ports - L3 - stackable |
| Enclosure Type |
Rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
| Performance |
Switching capacity with stacking: 448 Gbps
Switching capacity: 128 Gbps
Forwarding rate: 95.23 Mpps
Forwarding rate with stacking: 333.33 Mpps |
| Capacity |
IPv4 routes: 32000
IPv6 routes: 16000
Multicast scale: 8000
QoS scale entries: 5120
ACL scale entries: 5120
Routed ports: 416
VLANs supported: 4094
Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features |
QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, 16MB packet buffer, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| RAM |
8 GB |
| Flash Memory |
16 GB |
| Expansion / Connectivity |
| Interfaces |
24 x 1000Base-T RJ-45
4 x 10GBase-X SFP+ uplink |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Provided |
350 Watt |
| Voltage Required |
AC 120/230 V (50 - 60 Hz) |
| Miscellaneous |
| MTBF |
387,700 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
4.4 cm |
| Height |
40.9 cm |
| Weight |
6.78 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Humidity Range Operating |
5 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 90% (non-condensing) |
