| Marketing Description |

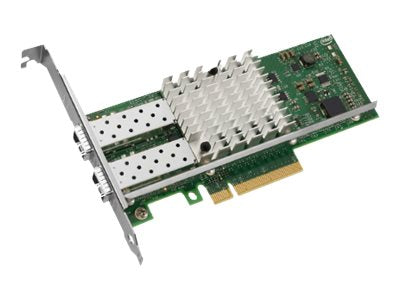

| Intel's family of adapters, the Intel Ethernet Converged Network Adapter X520 is the adapters for today's demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gbps connections. Customers require the rigorous requirements of running mission-critical applications in virtualized. |
| Product Features |
-
Best choice for virtualization
With more Virtual Machines (VMs) running on each multi-core increased, with each VM competing for of Intel Ethernet Converged Network Adapter X520 addresses networking bottlenecks in virtualized environments. The adapter enables network-intensive applications to achieve the performance expected in a virtualized environment.
-
Unified networking and storage
The family of Intel Ethernet X520 adapters lowers your data center total single fabric.
-
Reliable performance
The family of X520 adapters includes a number of advanced features that enable it to provide industry-leading performance and reliability.
|
| General |
| Device Type |
Network adapter - 2 ports |
| Form Factor |
Plug-in card - low profile |
| Interface (Bus) Type |
PCI Express 2.0 x8 |
| Networking |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet |
| Data Transfer Rate |
10 Gbps |
| Network / Transport Protocol |
TCP/IP, UDP/IP, IPSec, iSCSI |
| Remote Management Protocol |
SNMP, RMON |
| Status Indicators |
Port transmission speed, link OK, link/activity |
| Features |
Flow control, fault tolerance, load balancing, VLAN support, packet filtering, IPv6 support, Accelerated iSCSI, QoS, VMDq, IPv4 support, PXE support, RSS, SR-IOV, LACP |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as |
| Processor / Memory |
| Processor |
Intel 82599ES |
| Expansion / Connectivity |
| Expansion Slots |
2 (total) / 2 (free) x SFP+ |
| Compatible Slots |
1 x PCI Express 2.0 x8 - full-length, low-profile |
| Miscellaneous |
| Compliant Standards |
FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC |
| Dimensions & Weight |
| Depth |
14.55 cm |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
55 °C |
| Compatibility Information |
| Designed For |
Cisco UCS S3260 Storage Server |
