| Marketing Description |

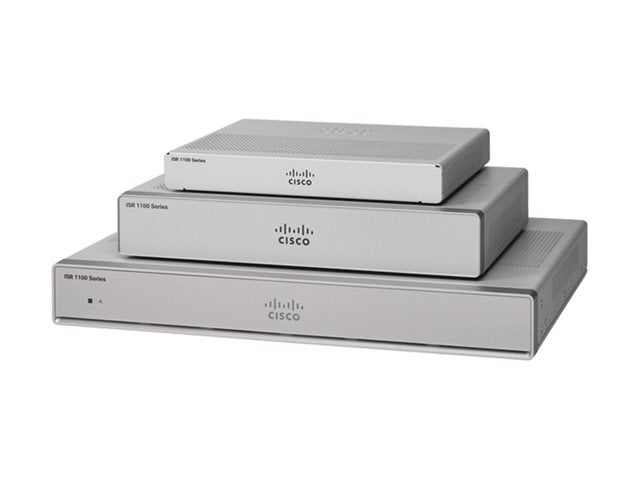

| The Cisco C1117-4PM Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors. |
| Product Features |
-
PORT COUNT
4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
-
CONNECTIVITY
VA-DSL (Annex M) WAN and WAN/SFP combo with integrated USB 3.0 AUX/console
-
SECURITY
Multi-layer, robust security, and high-performance VPNs encrypt all data from the WAN edge to the cloud
-
PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video, and wireless services
-
PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
|
| General |
| Device Type |
Router - 4-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Encryption throughput: 250 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol |
SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm |
DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method |
RADIUS |
| Features |
CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
| Compliant Standards |
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM |
4 GB |
| Flash Memory |
4 GB |
| Status Indicators |
Status |
| Communications |
| Type |
DSL modem |
| Digital Signaling Protocol |
ADSL2, VDSL2+ |
| Protocols & Specifications |
ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M |
| Expansion / Connectivity |
| Interfaces |
WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
LAN: 2 x 1000Base-T - RJ-45
LAN: 1 x 1000Base-T (PoE+) - RJ-45
LAN: 1 x 1000Base-T (PoE) - RJ-45
USB 3.0: 1 x console
WAN: 1 x VDSL2 / ADSL2+ |
| Power |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Dimensions & Weight |
| Width |
32.3 cm |
| Depth |
23 cm |
| Height |
4.2 cm |
| Weight |
2.59 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
65 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
