| Marketing Description |

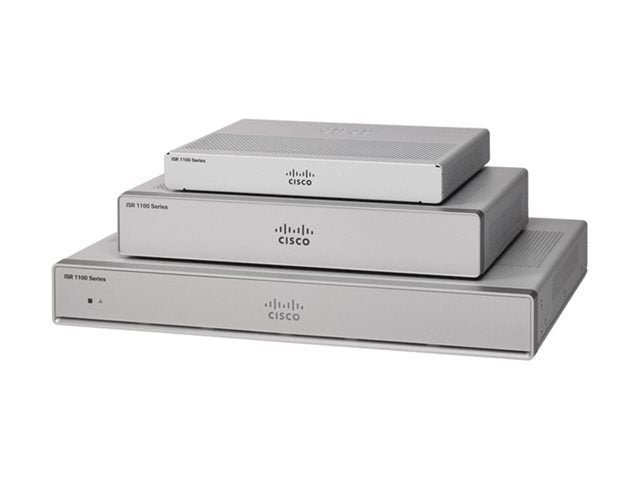

| The Cisco C1111-4PLTEEA Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors. |
| Product Features |
-
PORT COUNT
4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
-
CONNECTIVITY
LTE Advanced (CAT6) WAN, Gigabit WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
-
SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
-
PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
-
PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
|
| General |
| Device Type |
Router - 4-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Performance |
Crypto performance: 150 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DNS, L2TPv3 |
| Routing Protocol |
OSPF, RIP, IS-IS, RIP-1, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, PIM-SSM, IPv4-to-IPv6 Multicast, RSVP |
| Remote Management Protocol |
SNMP, RMON |
| Encryption Algorithm |
Triple DES, SHA, MD5, AES, WPA2, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 384-bit SHA-2, 256-bit SHA, 512-bit SHA, 748-bit AES, ECDSA 256-bit, ECDSA 384-bit |
| Authentication Method |
RADIUS |
| Features |
DHCP support, PoE, load balancing, MPLS support, VLAN support, Syslog support, IPv6 support, Dying Gasp support, CBWFQ, WRED, VRRP support, ACL support, QoS, DMVPN, SMS alert, BFD, IPv4 support, NetFlow, MRC, HSRP support, Call Home function support, IPFIX, GRE, automatic Internet Key Exchange, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, AVC, 3G MIB, failover protection, Field Programmable Gate Array, AES encryption, policy based routing, AAA, DFS, HQoS, L3VPN support, EEM, MHSRP, EVC, Cisco IPSLA, NBAR, MIP, dual SIM support |
| Compliant Standards |
IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, EN 300 386, IEEE 802.3at, CAN/CSA-C22.2 No. 60950-1, CB 60950-1, IEEE 802.1Q, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM |
4 GB |
| Flash Memory |
4 GB |
| Status Indicators |
WAN, 3G, LTE, GPS, link/speed, SIM status, Received Signal Strength Indication (RSSI) bar |
| Communications |
| Type |
Wireless cellular modem |
| Digital Signaling Protocol |
ADSL2, ADSL2+, VDSL2 |
| Mobile Communication Protocol |
UMTS, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE |
| Cellular Band |
TD-SCDMA 39 |
| Protocols & Specifications |
ITU G.992.5, ITU G.992.3 Annex A, ITU G.993.2, ITU-T G.992.1 |
| Internet of Things (IoT) |
| Communications Technology |
LTE Cat 6 |
| Expansion / Connectivity |
| Interfaces |
LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45
USB 3.0: 1 x console
WAN: 1 x 1000Base-T - SFP (mini-GBIC)
WAN: 1 x 1000Base-T - RJ-45
WAN: 1 x RJ-45
Antenna: 1 x GPS connector |
| Expansion Slots |
1 (total) / 1 (free) x SIM |
| Power |
| Power Device |
External power adapter |
| Voltage Required |
AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational |
66 Watt |
| Miscellaneous |
| Localisation |
North America, Europe |
| Software / System Requirements |
| OS Provided |
Cisco IOS XE Universal |
| Dimensions & Weight |
| Width |
32.3 cm |
| Depth |
24.4 cm |
| Height |
4.4 cm |
| Weight |
2.59 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 85% (non-condensing) |
