| Marketing Description |

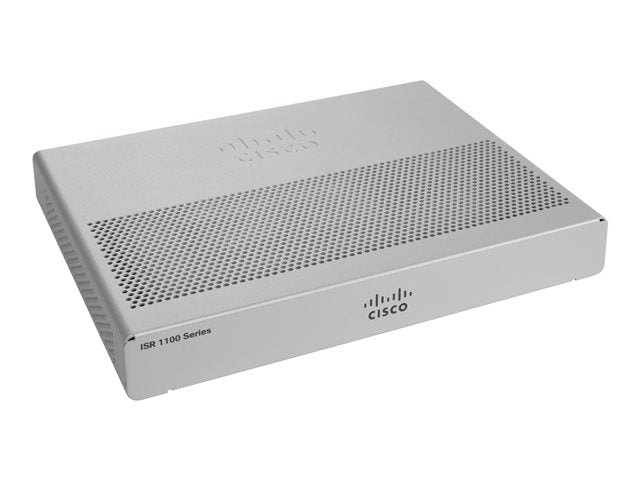

| The Cisco C1101-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors. |
| Product Features |
-
PORT COUNT
4-port managed Gigabit Ethernet switch
-
CONNECTIVITY
Gigabit WAN port with integrated USB 3.0 console
-
SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
-
PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
-
PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
|
| General |
| Device Type |
Router - 4-port switch (integrated) |
| Enclosure Type |
Rack-mountable |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Encryption throughput: 350 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol |
SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm |
DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method |
RADIUS |
| Features |
CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
| Compliant Standards |
IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM |
4 GB |
| Flash Memory |
4 GB |
| Expansion / Connectivity |
| Interfaces |
WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
LAN: 4 x 1000Base-T - RJ-45
USB 3.0: 1 x |
| Power |
| Power Device |
External power adapter - 30 Watt |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Consumption Operational |
30 Watt |
| Miscellaneous |
| Rack Mounting Kit |
Optional |
| Dimensions & Weight |
| Width |
19.05 cm |
| Depth |
15.24 cm |
| Height |
2.79 cm |
| Weight |
1.76 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 85% (non-condensing) |
