| Marketing Description |

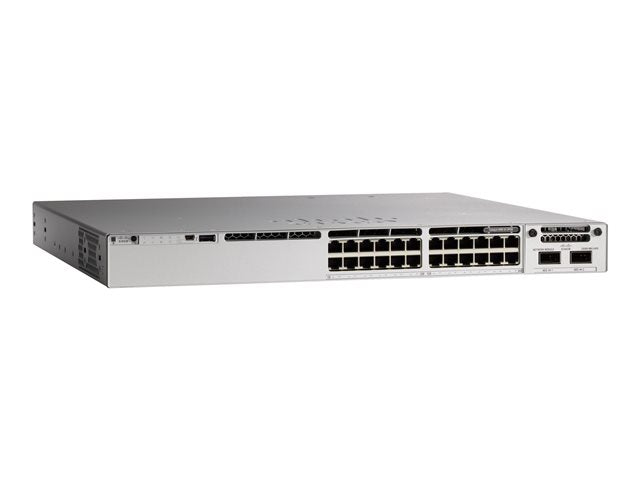

The Cisco Meraki Catalyst 9300-24U stands out as a formidable solution in the realm of hubs and switches, designed to meet the demands of modern networks. This rack-mountable Gigabit Ethernet switch is equipped with 24 UPOE ports, offering not only robust connectivity but also delivering up to 60 W of power per port to support high-power devices. Its impressive switching capacity of 208 Gbps and forwarding rate of 154.76 Mpps ensure swift data processing and traffic management, making it an ideal choice for businesses seeking to enhance their network's performance and reliability.
With advanced features such as Access Control List (ACL) support, VLAN support, and Quality of Service (QoS), the Cisco Meraki Catalyst 9300-24U provides enhanced network security, segmentation, and traffic prioritization. These capabilities, combined with the switch's stackable design, allow for significant scalability and flexibility in network configuration. Furthermore, the switch's energy-efficient design, certified by 80 PLUS Platinum, underscores its commitment to reducing operational costs and environmental impact. Whether for a small business or a large enterprise, the Cisco Meraki Catalyst 9300-24U is engineered to deliver superior performance, reliability, and manageability. |
| Product Features |
-
Enhanced connectivity
Equipped with 24 10/100/1000 (UPOE) ports and additional network stack device and management ports, this switch ensures versatile connectivity options for a wide range of devices, supporting up to 60 W of power over Ethernet on each port for high-power devices.
-
Robust performance
Boasting a switching capacity of 208 Gbps and a forwarding rate of 154.76 Mpps, the Cisco Meraki Catalyst 9300-24U delivers high-speed data processing and efficient traffic management, ensuring smooth and reliable network performance.
-
Advanced network features
Features such as Access Control List (ACL) support, VLAN support, and Quality of Service (QoS) enhance network security, segmentation, and traffic prioritization, respectively, allowing for a more controlled and optimized network environment.
-
Reliable and durable
With a mean time between failures (MTBF) of 238,410 hours and hot-swappable 3 fans, this switch is designed for long-term reliability and uninterrupted operation, minimizing downtime and maintenance requirements.
-
Comprehensive management
Support for various remote management protocols, including DHCP, IPv4, IPv6, SNMP, and Syslog, enables efficient network management and monitoring, facilitating easier configuration and troubleshooting.
|
| General |
| Device Type |
Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (UPOE) |
| Power Over Ethernet (PoE) |
UPOE |
| PoE Budget |
830 W |
| Performance |
Switching capacity: 208 Gbps
Stacking bandwidth: 480 Gbps
Forwarding rate: 154.76 Mpps |
| Capacity |
QoS queues: 8
Member ports per aggregated link: up to 8
VLANs with trunking: 4094 |
| MAC Address Table Size |
32000 entries |
| Max Units In A Stack |
8 |
| Routing Protocol |
IGMP, VRRP, OSPFv2, static IP routing, MSTP, RSTP, STP |
| Remote Management Protocol |
SNMP, DHCP, IPv4, IPv6, Syslog |
| Authentication Method |
RADIUS |
| Features |
VLAN support, port mirroring, Broadcast Storm Control, firmware upgradable, PVST, DHCP snooping, ACL support, QoS, DHCP server, DAI, STP Root Guard, UDLD, DHCP relay, Cisco StackPower technology, hot swappable 3 fans, network diagnostics, RBAC, push notification, STP BPDU Guard, STP loop guard, ZTP, DSCP to CoS Mutation, PIM, MAB, VLAN trunking, CDP, RPVST, sticky MAC, adaptive policy, usage statistics |
| Compliant Standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3bt |
| Built-in Devices |
3 x fans |
| Status Indicators |
Status |
| Expansion / Connectivity |
| Interfaces |
24 x 1000Base-T RJ-45 UPOE - 60 W
2 x network stack device
1 x management
1 x USB Type A
1 x USB Type B console |
| Expansion Slots |
1 (total) / 1 (free) x Expansion Slot |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Provided |
1100 Watt |
| Voltage Required |
AC 100-240 V (50 - 60 Hz) |
| 80 PLUS Certification |
80 PLUS Platinum |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| MTBF |
238,410 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, KN32, KN35, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, TCVN 7317, AN/NZS 60950.1, V-2/2015.04, V-3/2015.04, FCC CFR 47 Part 15 Class A, VCCI-CISPR 32 Class A |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
44.8 cm |
| Height |
4.4 cm |
| Weight |
7.54 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advanced replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
5 - 90% |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
