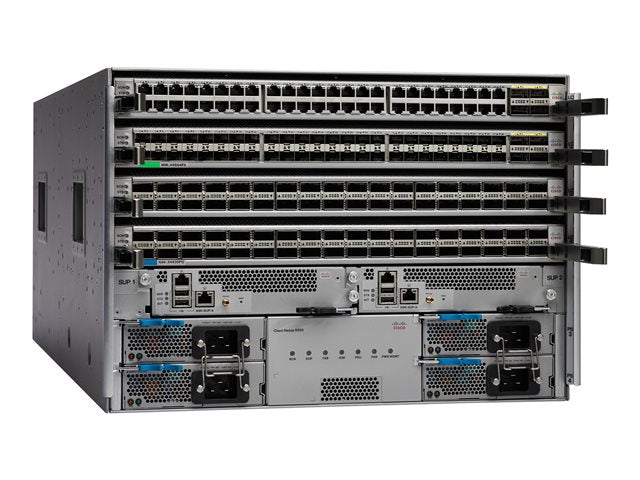

CISCO Nexus 9504 Шаси с 4 слота за линейни карти

CISCO Nexus 9504 Шаси с 4 слота за линейни карти

CISCO
Код KXG0132592

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

CISCO Nexus 9504 Chassis with 4 linecard slots

Manufacturer CISCO
Manufacturer Part No N9K-C9504

Marketing Description
Changing application environments are placing new demands on your IT infrastructure. With application workloads deployed across a mix of virtualized and nonvirtualized server and storage infrastructure, your network must provide constant connectivity, security, and visibility across bare-metal, virtualized, and cloud computing environments. The flexible and efficient chassis design for future expansion, with the capability to support more bandwidth and cooling and twice the number of power supplies needed to support today's maximum configuration.
The Cisco Nexus 9500 platform is the switch chassis designed without a midplane. Line cards and fabric modules connect directly. This design approach provides optimal front-to-back airflow and helps the switch operate using less power.
Product Features
  • Robust design
    The Cisco Nexus 9504 features a modular design that supports up to 4 devices or modules, allowing for flexible expansion as network demands grow. Its front to back airflow ensures optimal cooling for reliable performance under various operating conditions.
  • Comprehensive compliance
    Meeting a wide range of compliance standards including AS/NZS 60950-1, CISPR 22 Class A, and RoHS, the Cisco Nexus 9504 is designed to ensure safety, reliability, and environmental sustainability across diverse operational environments.
  • Enhanced power redundancy
    With support for up to 3 hot-plug internal power supplies and front-to-rear airflow feature, the Cisco Nexus 9504 ensures continuous operation and power efficiency, minimizing downtime and operational disruptions.
General
Device Type Switch
Enclosure Type Front to back airflow rack-mountable 7.1U
Features Modular design
Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x Expansion Slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
Power
Power Device Internal power supply (not installed) - hot-plug
Max Supported Qty 3
Power Redundancy Yes
Features Front-to-rear airflow
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, VCCI Class A, KN22, CNS 13438(95) Class A, EN 55022 Class A, EN 300 386
Dimensions & Weight
Width 44.5 cm
Depth 77.5 cm
Height 31.6 cm
Weight 39.3 kg
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 5 - 95% (non-condensing)
