| Marketing Description |

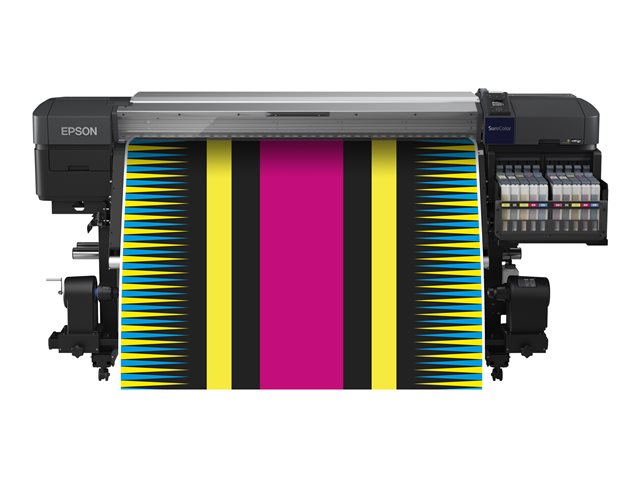

| The SC-F9400H offers businesses the option of printing with two genuine fluorescent ink solutions (yellow and pink) which can be used to create a wide range of bright, vivid colors for the production of sportswear, workwear and fashion items. The SC-F9400 series is an evolution of trusted Epson print technology and provides enhanced quality while sustaining productivity and reliability. |
| Product Features |
-
Fluorescent inks for vivid imaginations
For ambitious businesses that are looking to expand their current offering, genuine fluorescent yellow and pink inks have been added alongside the CMYK range, to help you stand out from the crowd.
-
Enhanced productivity
Maintaining a high output, even when printing intense colors, the SC-F9400H has been built with your efficiency in mind. And with higher capacity ink pouches, the SC-F9400H will keep you running for longer.
-
Scan and learn
It's never been simpler to carry out maintenance correctly. You can watch the printer's instructional video by scanning the QR code label, which is attached to the machine.
|
| General |
| Printer Type |
64" large-format printer - dye sublimation - colour |
| Printer |
| Inkjet Technology |
Epson PrecisionCore TFP |
| Ink Palette Supported (Colours) |
6-ink - cyan x 2, magenta x 2, yellow x 2, high density black x 2, flourescent yellow, flourescent pink |
| Nozzle Configuration |
720 nozzles (black), 720 nozzles (per color) |
| Minimum Ink Droplet Size |
4 pl |
| Refillable Tank |
Yes |
| Ink Cartridge Configuration |
10 tanks (2 each: cyan, magenta, yellow, high density black; 1 each: flourescent yellow, flourescent pink) |
| Ink Type |
Epson UltraChrome DS |
| Print Speed |
Up to 108.6 sq.m/hour - colour
Up to 108.6 sq.m/hour - B/W |
| Built-in Devices |
LCD display |
| Connectivity Technology |
Wired |
| Interface |
USB 2.0, Gigabit LAN |
| Max Resolution (B&W) |
720 x 1440 dpi |
| Max Resolution (Colour) |
720 x 1440 dpi |
| Language Simulation |
EPSON ESC/P Raster |
| Printer Features |
Automatic wet fabric wiper system, auto take up reel |
| Media Handling |
| Media Type |
Transfer paper, textile |
| Max Media Size |
Roll (162.6 cm) |
| Max Media Size (Custom) |
1626 mm |
| Media Sizes |
A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), Roll (111.8 cm), Roll (91.4 cm), Roll (162.6 cm), Roll (61 cm) |
| Media Thickness Range |
0.4 mm - 1 mm |
| Media Feeders |
1 x manual - 1 roll - Roll (162.6 cm) |
| Networking |
| Networking |
Print server |
| Expansion / Connectivity |
| Connections |
1 x Gigabit LAN - RJ-45
1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous |
| Included Accessories |
Maintenance kit, waste bottle |
| Consumables Included |
Ink refill (cyan)
Ink refill (magenta)
Ink refill (yellow)
Ink refill (high density black)
Ink refill (flourescent yellow)
Ink refill (flourescent pink) |
| Power |
| Power Device |
Power supply - internal |
| Frequency Required |
50/60 Hz |
| Power Consumption Operational |
600 Watt |
| Power Consumption Sleep |
14 Watt |
| Software / System Requirements |
| OS Required |
Microsoft Windows 7 (32/64 bits) SP1, Apple MacOS X Lion 10.7, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits) |
| Environmental Parameters |
| Min Operating Temperature |
15 °C |
| Max Operating Temperature |
25 °C |
| Humidity Range Operating |
40 - 60% |
| Dimensions & Weight |
| Width |
262 cm |
| Depth |
93.4 cm |
| Height |
133.2 cm |
| Weight |
290 kg |
