| Marketing Description |

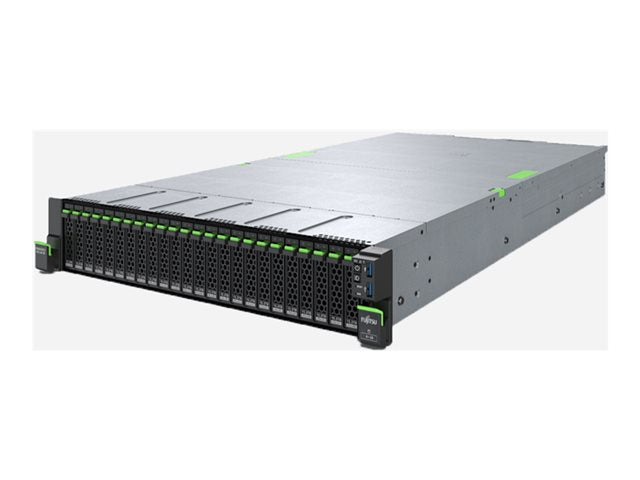

| The Fujitsu PRIMERGY RX2540 M7 delivers excellent performance, improved usability, and flexible expandability in an optimized compact 2U chassis. The PRIMERGY RX2540 M7 forms the valuable standard in every modern data center, using advanced technology developments to run nearly every workload from the most basic to business-critical applications depending on the chosen configuration |
| Product Features |
-
Unmatched performance
Xeon Silver processor offers up to 10 cores and PCI-Express 5.0, enabling significantly higher performance and efficiency.
-
Accelerate IT transformation
The DDR5 (4,800 MT/s) technology supported with 4th Gen Intel Xeon processors and a high-performing, large-capacity of 8 TB in 32 memory slots help turn more data into actionable insights.
-
Comprehensive protection
PRIMERGY servers are equipped with beneficial features to protect against, detect and recover from security breaches.
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 2U |
| Built-in Devices |
6 x fans |
| Server Scalability |
2-way |
| Front Accessible Bays Qty |
10 |
| Hot-Swap Bays Qty |
10 |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4410T |
| Clock Speed |
2.7 GHz |
| Max Turbo Speed |
4 GHz |
| Number of Cores |
10-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| CPU Upgradability |
Upgradable |
| Chipset Type |
Intel C741 |
| Cache Memory |
| Installed Size |
26.25 MB |
| Cache Per Processor |
26.25 MB |
| RAM |
| Installed Size |
32 GB (installed) / 8 TB (max) |
| Technology |
DDR5 SDRAM - ECC |
| Effective Memory Speed |
4800 MHz |
| Rated Memory Speed |
4800 MHz |
| Slots |
32 (Total) / 31 (empty) |
| Features |
Independent Memory Mode, registered, memory scrubbing, Adaptive Double-Device Data Correction (ADDDC), Single Device Data Correction (SDDC), Memory Mirroring, dual channel memory architecture |
| Configuration Features |
1 x 32 GB |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
SATA/SAS |
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name |
Fujitsu PRAID EP 3252-8i LP |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Networking |
| Remote Management Protocol |
IPMI 2.0 |
| Remote Management Controller |
Integrated Remote Management Controller (iRMC S6) |
| Features |
PXE support |
| Compliant Standards |
OCP 3.0 |
| Expansion / Connectivity |
| Bays |
1 (total) / 1 (free) x external 5.25" (9.5mm height) |
| Slots |
2 PCIe 5.0 x8
4 PCIe 5.0 x16 - low-profile
1 PCIe 4.0 x16 - low-profile |
| Interfaces |
6 x USB 3.0 (2 front, 2 rear, 2 internal)
1 x VGA
1 x management (Gigabit Ethernet) - RJ-45 |
| Miscellaneous |
| Included Accessories |
Rack mount kit QRL with CMA, iRMC Advanced Pack |
| Compliant Standards |
ErP Lot 9, WEEE, RoHS, CB, GS, NRTLc/us, FCC Class A certified, NMB-3 Class A, ICES-003 Class A, VCCI Class A, JIS C 61000-3-2, EAC, KC, CCC, RCM, BSMI |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Yes |
| Max Supported Qty |
2 |
| Operating System / Software |
| OS Provided |
No operating system |
| Software |
iRMC S6 eLCM activation licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight |
| Dimensions & Weight Details |
48.25 cm - 80 cm - 8.69 cm - with front bezel |
| Width |
43.5 cm |
| Depth |
80 cm |
| Height |
8.69 cm |
| Weight |
25 kg |
| Environmental Parameters |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
8 - 85% (non-condensing) |
| Sound Emission |
41.9 dBA |
