| Marketing Description |

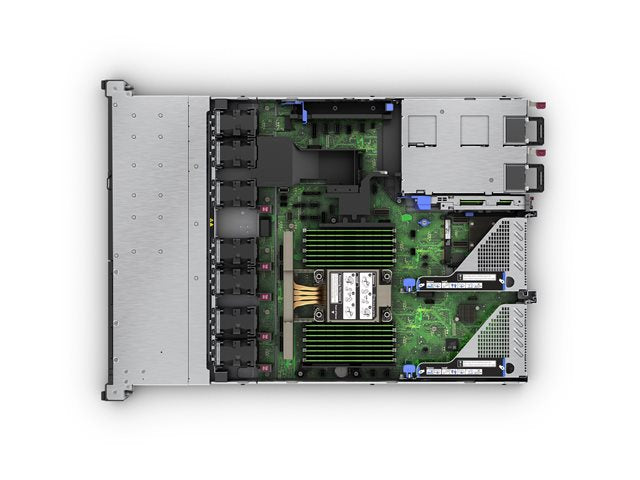

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable to diverse workloads and environments, the compact 1U 1P HPE ProLiant DL320 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency, the HPE ProLiant DL320 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL320 Gen11 supports the Intel Xeon, plus 4800 MT/s HPE DDR5 Smart Memory. Introducing PCIe Gen5 and Intel Software Guard Extensions (SGX) support on the single socket segment, the HPE ProLiant DL320 Gen11 delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at 1P economics. DL320 Gen11 is an excellent choice for daily business and workloads in Data Management, Virtualization, Content Delivery Network (CDN), Intelligent Video Analytics (IVA), General Compute, Data Collection, Software Defined Storage, Software Defined Compute, Cold Storage, Compute Storage, Edge AI, and Virtual Desktop Infrastructure (VDI). |
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 1U |
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability |
1-way |
| Hot-Swap Bays Qty |
4 |
| Localisation |
Region: European Union |
| Processor / Chipset |
| CPU |
Intel Xeon Bronze 3408U |
| Clock Speed |
1.8 GHz |
| Max Turbo Speed |
1.9 GHz |
| Number of Cores |
8-core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| CPU Upgradability |
Upgradable |
| Chipset Type |
Intel C741 |
| Cache Memory |
| Installed Size |
L3 Cache - 22.5 MB |
| Cache Per Processor |
22.5 MB |
| RAM |
| Installed Size |
16 GB (installed) / 2.04 TB (max) |
| Technology |
DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed |
4000 MHz |
| Rated Memory Speed |
4800 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
16 (Total) / 15 (empty) |
| Features |
Registered, HPE SmartMemory, 8-channel memory architecture |
| Configuration Features |
1 x 16 GB |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID |
| Channel Qty |
8 |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol |
IPMI 2.0, SNMP 3 |
| Features |
Wake on LAN (WoL), PXE support, ACPI support |
| Expansion / Connectivity |
| Bays |
4 (total) / 4 (free) x hot-swap 3.5" LFF |
| Slots |
2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode)
1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces |
1 x HPE iLO (1 in front) (service port)
3 x USB 3.2 Gen 1 (1 front, 2 rear)
1 x USB 2.0
1 x VGA
2 x LAN (Gigabit Ethernet) |
| Miscellaneous |
| Included Accessories |
5 x standard fans, HPE Easy Install Rails |
| Compliant Standards |
AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 200/240 V |
| Power Provided |
1000 Watt |
| 80 PLUS Certification |
80 PLUS Titanium |
| Operating System / Software |
| OS Provided |
No operating system |
| OS Certified |
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Canonical Ubuntu, Oracle Linux, Oracle VM, Citrix, CentOS |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
43.46 cm |
| Depth |
66.46 cm |
| Height |
4.28 cm |
| Weight |
13.2 kg |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
8 - 90% RH (non-condensing) |
