| Marketing Description |

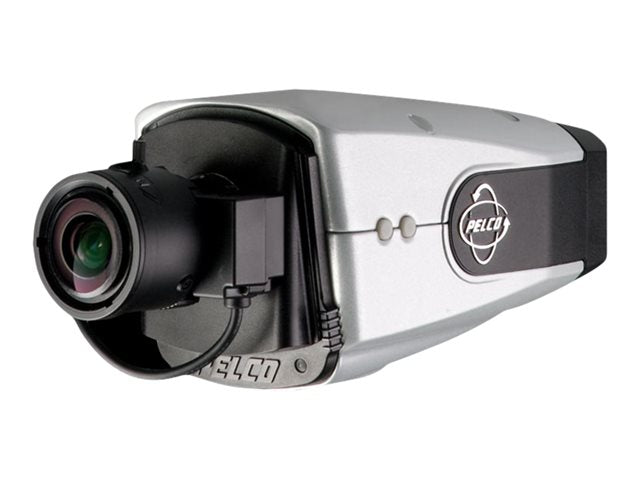

The IXE20 Series extended platform (EP) camera with Sarix technology is a 2.1 megapixel (MPx) network camera designed with industry-leading image quality and high performance processing power. Designed to install quickly, the camera includes automatic back focus control, built-in analytics, and other advanced features needed for demanding security applications.
Sarix technology defines the next generation of video security imaging performance, delivering high definition (HD) resolution, advanced low-light capabilities, consistent color science, and fast processing power. The H.264 compression video files are up to 20 times smaller making high definition video more affordable.
The Sarix IXE20 Series can support two simultaneous video streams. The two streams can be compressed in MJPEG and H.264 formats across several resolution configurations. The extended platform gives real time video (30 ips) with HD resolution using H.264 compression for optimized bandwidth and storage efficiency. The streams can be configured to a variety of frame rates, bit rates, and GOP (group of pictures) structures for additional bandwidth administration. |
| Product Features |
-
Web interface
The Sarix IXE20 Series uses a standard Web browser for powerful remote setup and administration. Up to 16 cameras can be viewed on the same network.
-
Video systemization
The Sarix IXE20 Series easily connects to Pelco IP and hybrid systems. The camera also features open architecture connectivity to third-party software. Pelco offers an application programming interface (API) for interfacing with Pelco's network cameras.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Width |
7.9 cm |
| Depth |
13.7 cm |
| Height |
8.5 cm |
| Weight |
0.51 kg |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Video Format |
NTSC, PAL |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Exposure Range |
1 sec - 1/100000 sec |
| Minimum Illumination |
0.5 lux - colour - F1.2
0.25 lux - B&W - F1.2 |
| Video Capture |
1920 x 1080 @ 15 fps
1600 x 1200 @ 20 fps
1280 x 1024 @ 20 fps
1280 x 960 @ 20 fps
1280 x 720 @ 30 fps
800 x 600 @ 30 fps
640 x 480 @ 30 fps
320 x 240 @ 30 fps |
| Still Image Capture Resolution |
1280 x 720, 640 x 480, 1280 x 960, 320 x 240, 1600 x 1200, 1280 x 1024, 640 x 512, 800 x 600, 1920 x 1080, 320 x 256, 320 x 176, 480 x 272, 480 x 368, 640 x 352 |
| Features |
Manual white balance, Backlight Compensation (BLC), IR filter, progressive scanning, Power over Ethernet, miniSD card slot, On-Board Analytics, auto gain control |
| Image Sensor |
| Type |
2.1 MP CMOS 1/3" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Lens Iris |
Auto iris (DC) |
| Focus Adjustment |
Automatic |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP, RTSP, RTP, HTTPS, UPnP, Bonjour, IGMP |
| Alarm Inputs Qty |
1 |
| Expansion / Connectivity |
| Interfaces |
1 x peripheral - terminal block
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x management - sub-mini phone stereo 2.5 mm
1 x accessory |
| Miscellaneous |
| Cables Included |
1 x video / audio / control cable - external - 1.2 m |
| Compliant Standards |
UL, C-Tick, ISO 9001, GOST, cUL, ICES-003 Class B, FCC Part 15 B |
| Power |
| Power Requirements |
AC 24 V / PoE - 390 mA |
| Power Device |
7 Watt |
| Software / System Requirements |
| Software Included |
Drivers & Utilities, Pelco Camera Sabotage |
| OS Required |
Apple MacOS X 10.4 or later, Microsoft Windows Vista / XP |
| Additional Requirements |
XGA monitor, Fast Ethernet network adapter |
| System Requirements Details |
Core 2 Duo - 2.6 GHz - RAM 2 GB |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts and labour - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
20 - 90% |
