| Marketing Description |

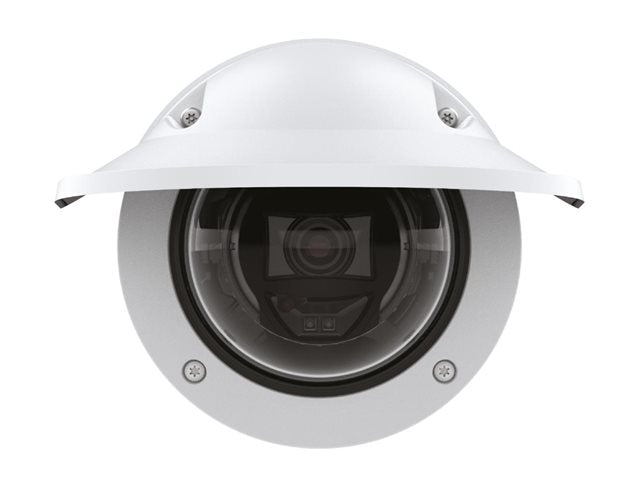

| From basic entry/exit to advanced access control, AXIS P3265-LVE-3 supports different levels of security. It comes with AXIS License Plate Verifier preinstalled and offers cost-effective license plate reading - 24/7. |
| Product Features |
-
Easy and cost-effective
Ideal for automated vehicle access control, AXIS P3265-LVE-3 includes a purpose-tuned Axis dome camera and a perpetual (one-time) license for AXIS License Plate Verifier analytics. This eliminates recurring licensing fees and ensures better cost control. This easy-to-install camera captures license plates and verifies them against the allow and blocklist stored in the camera to determine if a vehicle can enter a controlled area. So, you can eliminate people-hours to man gates, and free up resources for other tasks. And, because all the processing and storage takes place in the camera, there's no need for expensive servers and bandwidth requirements are reduced.
-
Automated license plate reading - day and night
AXIS P3265-LVE-3 delivers sharp images for license plate reading in all environments - day and night. This vandal-resistant, IK10-rated camera is safe to use even when installed at lower, more accessible heights. Featuring shock detection, it can send an alarm when it's been hit. This camera delivers 2 MP resolution and include Axis image enhancement technologies as well as OptimizedIR to ensure the ideal image settings for license plate reading - 24/7.
-
Flexible solution
This flexible, all-in-one camera kit supports different levels of security - from basic entry/exit to advanced access control. It offers built-in support for Network Door Controller allowing you to integrate with credential management systems and install a card reader as backup. It offers easy integration with your video management software (VMS). And, the application's open API (application programming interface) lets you add tailor-made applications for more complex requirements.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Audio Formats |
LPCM, AAC-LC, G.711, G.726, ADPCM, OPUS |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
14.9 cm |
| Depth |
14.9 cm |
| Height |
10.4 cm |
| Weight |
800 g |
| Localisation |
United States, United Kingdom, Europe, Australia |
| Bundled with |
AXIS License Plate Verifier |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format |
H.264, H.265, MJPEG |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Exposure Range |
2 sec - 1/66500 sec |
| Minimum Illumination |
0.1 lux - colour - F1.8 - 50 IRE
0.02 lux - B&W - F1.8 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
40 m |
| Frame Rate (max) |
60 frames per second |
| RAM |
1 GB |
| Flash Memory |
8 GB |
| Features |
Licence plate recognition (LPR), Lightfinder 2.0 technology, Forensic WDR, Zipstream technology, secure boot, Axis Edge Vault, remote focus, remote zoom, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Access Control, IR Corrected lens, infrared-cut filter, deep learning processing unit (DLPU), 16:10 aspect ratio, 16:9 aspect ratio, 4:3 aspect ratio, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), low latency mode, video streaming indicator, 2 video streams, digital PTZ function, auto AGC, full duplex audio, half duplex audio, NAS-Ready, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 180° image rotation, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, tone mapping, exposure mode, exposure zone, compression, defogging, dynamic text overlay, image mirror, image overlay, polygon privacy mask, target aperture, Vehicle Detection, TPM 2.0 module, polycarbonate housing |
| Image Sensor |
| Type |
2 MP PS RGB CMOS 1/2.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2.62 x |
| Focal Length |
3.4 mm - 8.9 mm |
| Lens Iris |
F/1.8 (P-Iris) |
| Min Focus Distance |
50 cm |
| Horizontal Field of View (degree) |
36 - 100 |
| Vertical Field of View (degree) |
20 - 53 |
| Panning |
| Range (degree) |
-180 to +180 |
| Tilting |
| Range (degree) |
75 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP |
| Alarm Inputs Qty |
1 |
| Alarm Outputs Qty |
1 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm |
EAP-TLS, TLS 1.2, TLS 1.3, PEAP, MSCHAPv2 |
| Miscellaneous |
| Included Accessories |
Weathershield, drill hole template, Resitorx TR20 screw bit, terminal block connector, connector guard, cable gaskets, owner authentication key |
| TAA Compliant |
Yes |
| Compliant Standards |
PVC-free, CSA, UL, cUL, BIS, UKCA, KC, EAC, VCCI Class A, RCM, CISPR 35, CISPR 32 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ThirdEdition, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, Common Criteria EAL4+, EAL 6+, IEEE 802.1x, X.509, IEEE 802.1ar, IEEE 802.3at, IEEE 802.3af, JEDEC, ECA, EN 63000:2018, REACH 1907/2006/CE, RoHS 2011/65/EU |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
4.8 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% RH (condensing) |
