| Marketing Description |

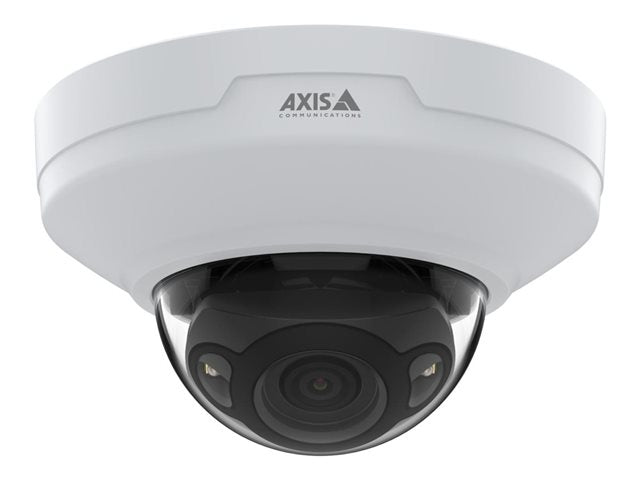

Discover the AXIS M4215-LV from the AXIS M42 Series, a network surveillance camera designed by Axis Communications for performance in PC and network camera applications. This model stands out with its versatile connectivity options, including RJ-45 for LAN/power and HDMI, making it a perfect fit for a variety of setups. The camera features a vari-focal lens, offering a broad angular field of view that ranges from 47 to 93 degrees horizontally, ensuring comprehensive coverage of the monitored area.
Built to withstand diverse environmental conditions, the AXIS M4215-LV operates reliably within a temperature range of 0 °C to 45 °C and humidity levels from 10 to 85% RH. Its robust design is complemented by surveillance capabilities, such as infrared illumination up to 20 m, day and night functionality, and a suite of features including Wide Dynamic Range and Axis Object Analytics for detailed monitoring. The camera's high-quality imaging is powered by a PS RGB CMOS sensor, supporting various digital video formats to deliver clear, high-definition footage at 1920 x 1080 resolution. With its combination of durability, flexibility, and features, the AXIS M4215-LV is an ideal choice for securing premises and enhancing surveillance operations. |
| Product Features |
-
Versatile connectivity
Equipped with both RJ-45 for LAN/power and Type-C for HDMI, this camera offers flexible connection options to seamlessly integrate into various setups.
-
Advanced optical system
Features a vari-focal lens with a wide angular field of view ranging from 47 to 93 degrees horizontally, allowing for precise adjustments to capture the desired area with clarity.
-
Robust environmental adaptability
Designed to operate in a wide range of temperatures from 0 °C to 45 °C and humidity levels from 10 to 85% RH, ensuring reliable performance in diverse conditions.
-
Enhanced surveillance capabilities
Incorporates infrared LEDs with a 20 m range and day and night functionality, providing clear images under any lighting conditions, alongside features like Wide Dynamic Range and Axis Object Analytics for comprehensive monitoring.
-
High-quality imaging
Utilizes a PS RGB CMOS sensor with 2,000,000 pixels and supports multiple digital video formats, including H.264 and H.265, ensuring detailed and efficient video capture.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes |
| Form Factor |
Dome |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
12 cm |
| Depth |
12 cm |
| Height |
7.1 cm |
| Weight |
366 g |
| Camera |
| Type |
Colour - Day&Night - fixed - vandal / weatherproof |
| Digital Video Format |
H.264, H.265, MJPEG, HEVC, AVC, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Exposure Range |
1/5 sec - 1/25000 sec |
| Minimum Illumination |
0.14 lux - colour - F1.7 - 50 IRE
0 lux - IR
0.03 lux - B&W - F1.7 - 50 IRE |
| Infrared LEDs |
Yes |
| Infrared Distance |
20 m |
| Digital Video Capture Resolution |
1920 x 1080, 320 x 240 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Lightfighter technology, Wide Dynamic Range (WDR), OptimizedIR, Zipstream technology, signed firmware, secure boot, Axis Edge Vault, remote focus, remote zoom, face detection, AXIS Object Analytics, people counting, infrared cut filter, manual 210° rotation, deep learning processing unit (DLPU), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 90° image rotation, Adaptive Bitrate (ABR), brightness control, colour control, compression, contrast control, exposure control, image mirror, image overlay, motion-adaptive exposure, Multi-Bitrate (MBR), Privacy Mask Function, sharpness control, text overlay, white balance, digital PTZ function, e-mail alerts, Pixel Counter Support, level grid, human detection, Vehicle Detection, Line Crossing Detection, IP address filtering |
| Image Sensor |
| Type |
2 MP PS RGB CMOS 1/2.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
1.9 x |
| Focal Length |
3.5 mm - 6.6 mm |
| Lens Iris |
F/1.7-2.6 |
| Min Focus Distance |
1.5 m |
| Horizontal Field of View (degree) |
47 - 93 |
| Vertical Field of View (degree) |
26 - 50 |
| Panning |
| Range (degree) |
-180 to +180 |
| Tilting |
| Range (degree) |
-40 to +65 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, QOS, TLS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Zeroconf |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
HDMI - Type D |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Owner authentication key |
| Compliant Standards |
IEC/EN 60529 IP42, IEC/EN 62262 IK08, BFR-free, CFR free, PVC-free, CSA, cUL, UL, BIS, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, FCC Part 15 B Class A, CAN ICES-3(A)/NMB3(A), KS C 9835, KS C 9832 Class A, AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 62368-1, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 62368-1, IEC/EN 62471, IS 13252, UL 62368-1, VCCI Class A, NIST SP500-267, IEEE 802.1x, IEEE 802.1ar, TLS v1.3, TLS v1.2, X.509, IEEE 802.3af, IEEE 802.3at, RoHS, ROHS Directive 2011/65/EU, EN 63000:2018, REACH |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
4.8 Watt |
| Software / System Requirements |
| Software Included |
AXIS Object Analytics, AXIS Video Motion Detection, AXIS Face Detector, AXIS Live Privacy Shield, virtual client licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Relative Humidity (operating) |
10 - 85% RH (non-condensing) |
