| Marketing Description |
| A unique dual chipset makes AXIS P3255-LVE the perfect platform for analytics based on deep learning. Ideal for various surveillance situations, it features granular object classification and all the high-quality AXIS P32 Series features. |
| Product Features |
-
Highly nuanced object classification

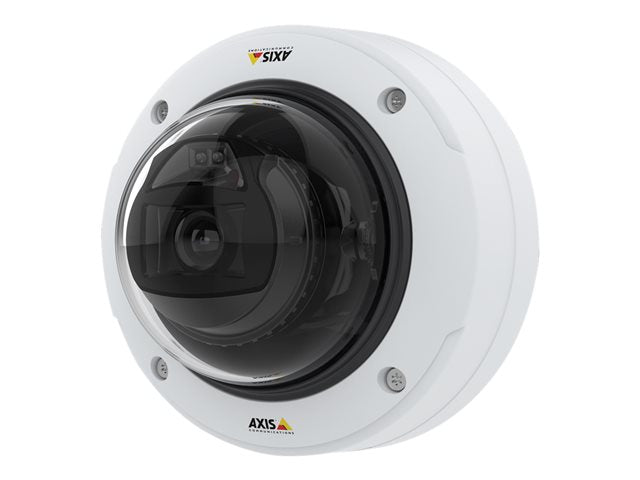

This fixed dome camera features an innovative dual chipset that is the basis for nuanced and remarkably granular object classification. It comes with AXIS Object Analytics preinstalled and the camera's dual chipset facilitates powerful artificial intelligence with deep learning. This makes it possible for AXIS Object Analytics to detect and classify humans and/or vehicles as well as distinguish between different types of vehicles such as cars, buses, trucks, and bikes (motorcycle/bicycle). You can decide which kinds of objects you want to detect and when alarms are triggered, and notifications are sent to security personnel. Basing notifications on recognizing the difference between different kinds of objects results in fewer false alarms and allows your operators to able to handle more cameras. This high-performance camera offers excellent image quality in HDTV 1080p resolution. And with Axis Lightfinder 2.0 and Axis Forensic WDR it delivers true colors and great detail in challenging light or near darkness. Furthermore, OptimizedIR ensures sharp video even in complete darkness without the need for extra lighting.
-
Endless opportunities with deep learning on the edge
A dual chipset, which combines the proprietary Axis ARTPEC chip with a deep-learning processing unit (DLPU), provides the perfect platform for developing customized analytics based on deep learning. This advanced hardware, in combination with the open Axis platform, allows analytics to run on AXIS P3255-LVE (on the edge), so there's no need for expensive servers. This results in a faster and more scalable system and facilitates complex and powerful analytics. Other benefits include real-time processing and lower costs and complexity. And storage and bandwidth needs, as well as privacy concerns, are reduced because only relevant video is transferred over the network.
-
When security is key
Enclosed in a dust and vandal-resistant IK10-rated casing, this outdoor-ready camera is protected against redirection, defocusing, and impacts. It's packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Audio Formats |
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor |
Dome |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
14.9 cm |
| Depth |
14.9 cm |
| Height |
10.4 cm |
| Weight |
800 g |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor |
| Digital Video Format |
MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/66500 sec |
| Minimum Illumination |
0.1 lux - colour - F1.8 - 50 IRE
0.02 lux - B&W - F1.8 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
40 m |
| Video Capture |
1920 x 1080 @ 60 fps |
| RAM |
2 GB |
| Flash Memory |
1 GB |
| Features |
Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, Privacy Mask Function, full duplex audio, active tampering alarm, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, OptimizedIR, audible alerts, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Pixel Counter Support, infrared-cut filter, Forensic WDR, IP address filtering, exposure zone, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology |
| Image Sensor |
| Type |
RGB CMOS 1/2.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2.6 x |
| Focal Length |
3.4 mm - 8.9 mm |
| Lens Iris |
F/1.8 auto iris (P-Iris) |
| Horizontal Field of View (degree) |
36 - 100 |
| Vertical Field of View (degree) |
20 - 53 |
| Panning |
| Range (degree) |
-180 to +180 |
| Tilting |
| Range (degree) |
-75 to +75 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, SIP, LLDP, USGv6 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - terminal block
Digital input/output - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Cable gaskets, drill hole template, Resistorx T20 tool L-key, weathershield, connector guard, terminal block connectors |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NMB-3 Class A, RCM, IS13252, IEC EN60529, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, KCC KN35, IEC/EN 62262, IEC/EN/UL 62368-1, IEEE 802.1x, NIST SP500-267 |
| Colour |
White |
| Power |
| Power Requirements |
PoE Class 4 |
| Power Device |
7.8 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% (condensing) |
