| Product Features |
-
Modernize your meetings
The innovative compute system features an exclusive tensor processing unit (TPU) that delivers high performance. TrueVoice noise cancellation technology scrubs audio to ensure ultra-clear communication. And the 4K-capable AI cameras deliver smoother pan/zoom movements.
-
Easy to install and manage
As the first kits for Google Meet incorporating Power over Ethernet (PoE), Series One room kits are easy and cost-effective to install. Here's why: with power and network combined in one Ethernet cable, there are fewer cables to run and less clutter under or on the table. In addition, PoE installations can be completed faster than traditional deployments. The kits are easily managed through the G Suite admin console, for seamless integration and control.
-
Approachable, reliable design
The approachable product design of the Series One room kits complements the modern workplace aesthetic. Its user-friendly interface makes it easy to join meetings and share content. The hardware is reliable and durable.
|
| General |
| Device Type |
Video conferencing kit |
| Kit Content |
Camera, soundbar, compute system, mic pod, touch controller |
| Dimensions & Weight Details |
Main system - Width 28.4 cm Depth 2.9 cm Height 13.5 cm
Sound bar - Width 70.5 cm Depth 9.5 cm Height 13.3 cm
Camera - Width 10.7 cm Depth 8.4 cm Height 4.2 cm
Touch screen - Width 24.5 cm Depth 16.4 cm Height 9.1 cm
Microphone - Width 9.5 cm Depth 9.5 cm Height 3 cm |
| Enclosure Colour |
Charcoal |
| Localisation |
Bulgaria |
| Display |
| Diagonal Size |
10.1" |
| Native Resolution |
1280 x 800 |
| Image Aspect Ratio |
16:10 |
| Image Brightness |
350 cd/m² |
| Image Contrast Ratio |
800:1 |
| Monitor Features |
2-point multi-touch, ±89° horizontal viewing angle, ±89° vertical viewing angle, smudge resistant |
| Video Input |
| Type |
Digital camera (colour) - external |
| Video Modes |
1080p |
| Features |
Built-in microphone, 120° field of view (horizontal), PoE support |
| Video Output |
| PC Configuration |
Core i7-10510U, 8GB RAM, 128GB SSD |
| Audio Input |
| Type |

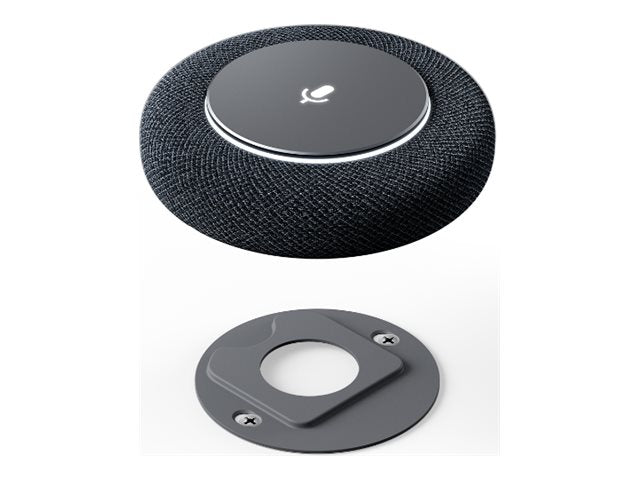

Microphone - desktop / wall mountable |
| Frequency Response |
100 - 24000 Hz |
| Audio Output |
| Type |
Sound bar |
| Output Power / Channel |
20 Watt |
| Frequency Response |
80 - 24000 Hz |
| Input Device |
| Type |
10.1" touchscreen |
| Connectivity Technology |
Wired |
| Features |
2-point simultaneous touch, 1280 x 800 resolution |
| Networking |
| Type |
Network adapter |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Features |
Power over Ethernet (PoE), dual-stream (2x2) |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax |
| Expansion / Connectivity |
| Interfaces |
3 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 1
1 x audio / video - HDMI input
2 x audio / video - HDMI output
4 x network (downlink) - RJ-45
1 x network (uplink) - RJ-45
1 x headphone/microphone combo jack |
| Miscellaneous |
| Cables Included |
3 x network cable - 5 m
3 x network cable - 2 m
1 x HDMI cable - 2 m |
| Mounting Kit |
Included |
| Included Accessories |
Wall bracket, table stand |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Power Device |
Power adapter - external |
| Voltage Required |
AC 100-240 V |
| Manufacturer Warranty |
| Service & Support |
Base warranty - 3 years
Extended warranty - 3 years |
| Bundled Services |
3 years Premier Support |
