| Marketing Description |
| For the modern workforce, whether they're in healthcare settings, at corporate offices, or at points of sale (POS), productivity must align with space-saving efficiency and uncompromised user experience. The compact ThinkCentre M70q Gen 3 Tiny desktop enables big ideas. With a 12th Generation Intel Core processor, the ThinkCentre M70q Gen 3 delivers enterprise-level power, speed, and potential in a desktop so small it can fit - or hide - almost anywhere. Engineered for manageability, security, and performance, this powerful device blends seamlessly into today's shifting and shrinking workspaces. Now with Modern Standby, get instanton capability while saving power. |
| Product Features |
-
Full-size performance
This Tiny desktop boasts full-size processing power with a 12th Generation Intel Core processor, , up to two DDR4 SODIMM (3200MHz), and dual punch-outs that allow users to configure ThinkCentre M70q Gen 3 to meet their needs.
-
Security inside and out
ThinkCentre devices allow employees to innovate fearlessly with the reinforced security of ThinkShield, Lenovo's comprehensive, end-to-end security solution that combines industry-leading hardware, software, services, and processes to protect data, ideas, and your business. ThinkCentre M70q Gen 3 has built-in and customizable security features, including self-healing BIOS, a TPM 2.0 chip, and a Kensington Cable Lock slot.
-
Comprehensive manageability
This Tiny desktop is easy to deploy, upgrade, and manage thanks to built-in driver support for older OS versions. Toolless access to the SSD and memory module makes expansion and maintenance fast and efficient. The ThinkCentre M70q Gen 3 is also designed to grow with your business. From industry-specific equipment to legacy peripherals, this desktop can connect them all.
-
Enhanced user experience

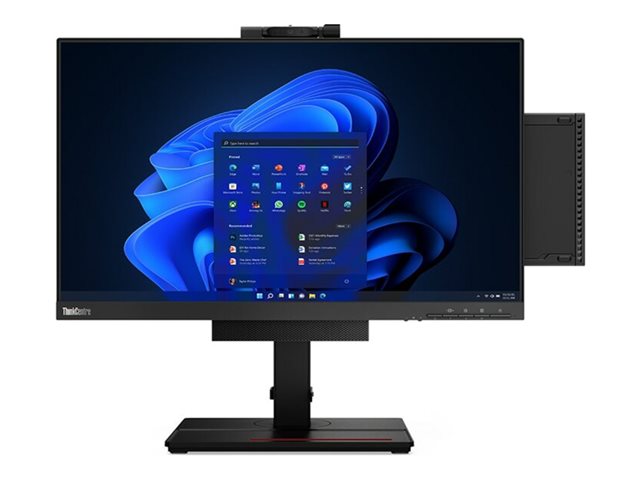

ThinkCentre M70q Gen 3 is designed with people - and shrinking workspaces - in mind. Its sleek, modern design and compact 1L form allow this Tiny PC to fit seamlessly into modern offices, healthcare, finance, or retail environments either sitting out, mounted out of the away, or bundled with Tiny-in-One (TIO). Users can connect ThinkCentre M70q Gen 3 to as many as four displays for maximum multitasking, while a USB-C port located on the front panel offers fast charging and quick data sharing.
|
| General |
| Type |
Personal computer |
| Product Form Factor |
Tiny |
| Built-in Devices |
Speaker |
| Embedded Security |
Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour |
Black |
| Localisation |
Language: Bulgarian |
| Processor / Chipset |
| CPU |
Intel Core i7 (12th Gen) 12700T |
| Clock Speed |
1.4 GHz (P-core) / 1 GHz (E-core) |
| Max Turbo Speed |
4.7 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores |
12-core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Chipset Type |
Intel Q670 |
| Cache Memory |
| Installed Size |
25 MB |
| Cache Per Processor |
25 MB |
| RAM |
| Installed Size |
16 GB (installed) / 64 GB (max) |
| Technology |
DDR4 SDRAM |
| Effective Memory Speed |
3200 MHz |
| Rated Memory Speed |
3200 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
2 (Total) / 1 (empty) |
| Features |
Dual channel memory architecture |
| Configuration Features |
1 x 16 GB |
| Hard Drive |
| Type |
SSD - M.2 2280 |
| Capacity |
1 x 512 GB |
| Interface Type |
PCI Express 3.0 x4 |
| Features |
TCG Opal Encryption, NVM Express (NVMe) |
| Storage Controller |
| Type |
1 x SATA |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Intel UHD Graphics 770 Shared Video Memory (UMA) |
| Video Interfaces |
HDMI, DisplayPort |
| Max Monitors Supported |
4 |
| Audio Output |
| Compliant Standards |
High Definition Audio |
| Input Device |
| Type |
Mouse, keyboard |
| Keyboard |
| Keyboard Name |
Lenovo Traditional Keyboard |
| Interface |
USB |
| Localization & Layout |
Bulgarian |
| Mouse |
| Mouse Name |
Lenovo Calliope Mouse |
| Interface |
USB |
| Networking |
| Ethernet Controller |
Intel I219-LM |
| Wireless LAN Supported |
Yes |
| Wireless NIC |
Intel Wi-Fi 6 AX 201 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features |
Wake on LAN (WoL), dual stream (2x2) |
| Expansion / Connectivity |
| Bays |
1 (total) / 1 (free) x internal 2.5" |
| Slots |
1 (total) / 0 (free) x M.2 Card (for WLAN)
1 (total) / 0 (free) x M.2 Card (for SSD) |
| Interfaces |
3 x USB 3.2 Gen 2 (1 front, 2 rear)
1 x USB 3.2 Gen 2 (1 in front) (data transfer, 5V 2.1A charging)
1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 5V 0.9A charging)
1 x headphones/microphone (1 in front)
1 x USB 2.0
1 x USB 3.2 Gen 1
1 x HDMI
1 x LAN (Gigabit Ethernet)
2 x DisplayPort 1.4 |
| Miscellaneous |
| Included Accessories |
Adapter cage |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), chassis intrusion switch |
| Security Slot Type |
Kensington security slot |
| VESA Mounting Interface |
100 x 100 mm, 75 x 75 mm |
| Compliant Standards |
RoHS, Energy-Related Products (ErP) Lot 3, TUV Rheinland Ultra Low Noise Certification, TUV Rheinland Low Noise Certification |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Device Type |
Power adapter |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
135 Watt |
| Efficiency |
89% |
| Operating System / Software |
| OS Provided |
Windows 11 Pro |
| Sustainability Information |
| TCO Certified |
TCO Certified Desktops 9 |
| EPEAT Compliant |
EPEAT Gold |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight |
| Width |
17.9 cm |
| Depth |
18.29 cm |
| Height |
3.65 cm |
| Weight |
1.25 kg |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% |
