| Marketing Description |
| Tiny in name but not in nature, M Series Tiny desktops deliver big-business performance with impressive processing power and platform stability. Both durable and energy efficient, they require very little space, too. |
| Product Features |
-

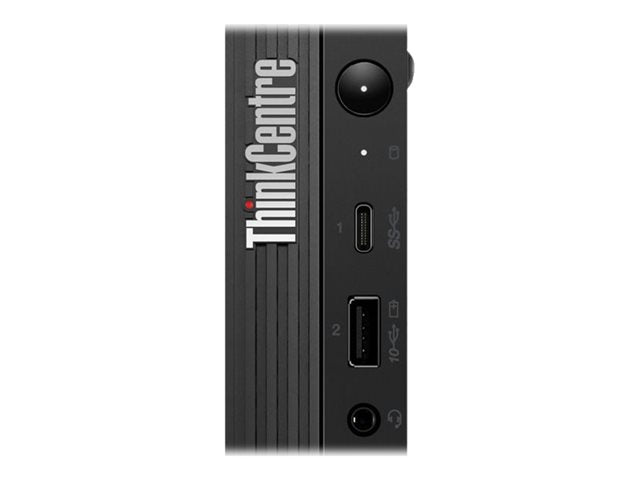

Compact yet full-featured desktops
Tiny in name but not in nature, M Series Tiny desktops deliver big-business performance with impressive processing power and platform stability. Both durable and energy efficient, they require very little space, too.
-
Power with peace of mind
Small enough to fit almost anywhere, M Series Tiny desktops give you the power to handle anything - from multitasking and multimedia to graphic design and high finance. They also come with the assurance that any future hardware changes will not affect the preloaded software image for up to 12 months, enabling you to plan ahead.
-
Durability meets versatility
Proudly carrying the Think name, these 1L PCs have undergone over 200 rigorous quality checks. This versatile solution gives you the power to customize and upgrade your system however you like.
|
| General |
| Type |
Personal computer |
| Product Form Factor |
Tiny |
| Built-in Devices |
Speaker |
| Embedded Security |
Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour |
Black |
| Localisation |
Language: Bulgarian |
| Processor / Chipset |
| CPU |
Intel Core i5 (10th Gen) 10400T |
| Clock Speed |
2 GHz |
| Max Turbo Speed |
3.6 GHz |
| Number of Cores |
6-core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Chipset Type |
Intel H470 |
| Cache Memory |
| Installed Size |
12 MB |
| Cache Per Processor |
12 MB |
| RAM |
| Installed Size |
8 GB (installed) / 64 GB (max) |
| Technology |
DDR4 SDRAM - non-ECC |
| Effective Memory Speed |
2666 MHz |
| Rated Memory Speed |
2933 MHz |
| Form Factor |
SO-DIMM 260-pin |
| Slots |
2 (Total) / 1 (empty) |
| Features |
Dual channel memory architecture |
| Configuration Features |
1 x 8 GB |
| Hard Drive |
| Type |
SSD - M.2 2280 |
| Capacity |
1 x 512 GB |
| Interface Type |
PCI Express 3.0 x4 |
| Features |
TCG Opal Encryption, NVM Express (NVMe) |
| Storage Controller |
| Type |
1 x SATA |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Intel UHD Graphics 630 Shared Video Memory (UMA) |
| Video Interfaces |
HDMI, DisplayPort |
| Audio Output |
| Compliant Standards |
High Definition Audio |
| Input Device |
| Type |
Mouse, keyboard |
| Keyboard |
| Keyboard Name |
Lenovo Traditional Keyboard |
| Interface |
USB |
| Localization & Layout |
Bulgarian |
| Mouse |
| Mouse Name |
Lenovo Calliope Mouse |
| Interface |
USB |
| Networking |
| Ethernet Controller |
Intel I219-V |
| Wireless LAN Supported |
Yes |
| Wireless NIC |
Intel Wi-Fi 6 AX 201 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6) |
| Features |
Wake on LAN (WoL), dual stream (2x2) |
| Expansion / Connectivity |
| Bays |
1 (total) / 1 (free) x internal 2.5" |
| Slots |
1 (total) / 0 (free) x M.2 Card (for WLAN)
1 (total) / 0 (free) x M.2 Card (for SSD) |
| Interfaces |
1 x USB 3.2 Gen 2 (1 in front) (Always On, fast-charging)
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 1 (1 in front)
1 x headphones/microphone (1 in front)
3 x USB 3.2 Gen 1
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
1 x HDMI
1 x serial
1 x VGA |
| Miscellaneous |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), chassis intrusion switch, tool-less chassis access |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
RoHS, Energy-Related Products (ErP) Lot 3, MIL-STD-810H |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Device Type |
Power adapter |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
65 Watt |
| Efficiency |
89% |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Silver |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight |
| Width |
17.9 cm |
| Depth |
18.3 cm |
| Height |
3.7 cm |
| Weight |
1.25 kg |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% |
