| Marketing Description |

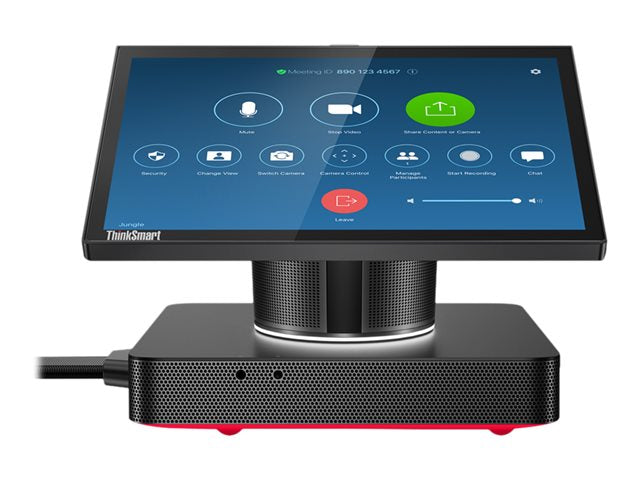

| The ThinkSmart Hub meeting room device is making meetings more efficient than ever. The redesigned hub has a slimmer design with a sleeker display, more speakers and microphones, an innovative single-cable mechanism, and more visible indicator lights. |
| Product Features |
-
Built for teamwork
The ThinkSmart Hub makes collaborating easy, whether it's across town or around the globe. Start your meetings on time, manage your cables, communicate via voice and chat in real time on Microsoft Teams, and share control with the rotatable display. Designed for small- and medium-sized rooms, this smart room device easily scales across a range of room sizes with a mix of curated accessories, providing a solution for a variety of environments.
-
Save time and money
With one-touch meeting start, participants can avoid dial-in delays and begin collaborating immediately via the ThinkSmart Hub. IT professionals can use the ThinkSmart Manager console to deploy, monitor, manage, and troubleshoot all Hub devices from one centralized location.
-
Clear and clean audio, video, and workspace
Don't miss a word - the ThinkSmart Hub's four built-in, premium-tuned 3W speakers and four dual-array mics will fill the meeting room and participants' remote locations with crystal-clear audio. The 10.1 inch antiglare, smudge-resistant display features 320 Nits brightness. And the device has a minimal footprint and a clutter-reducing single-cable mechanism.
|
| General |
| Platform Technology |
Intel vPro Platform |
| Type |
Personal computer |
| Bundled Services |
3 Years Lenovo Premier Support |
| Product Form Factor |
All-in-one |
| Built-in Devices |
4 speakers, 3-colour LED ring |
| Sensors |
Proximity sensor |
| Embedded Security |
Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour |
Raven black, red (bottom cover) |
| Localisation |
Language: English / region: Europe |
| Processor / Chipset |
| CPU |
Intel Core i5 (8th Gen) 8365U |
| Clock Speed |
1.6 GHz |
| Max Turbo Speed |
4.1 GHz |
| Number of Cores |
Quad-Core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Cache Memory |
| Installed Size |
6 MB |
| Cache Per Processor |
6 MB |
| RAM |
| Installed Size |
8 GB |
| Technology |
DDR4 SDRAM - non-ECC |
| Effective Memory Speed |
2400 MHz |
| Rated Memory Speed |
2400 MHz |
| Features |
Dual channel memory architecture |
| Configuration Features |
Provided memory is soldered |
| Hard Drive |
| Type |
SSD - M.2 2280 |
| Capacity |
1 x 256 GB |
| Interface Type |
PCI Express 3.0 x4 |
| Features |
NVM Express (NVMe) |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
LED |
| Touchscreen |
Yes (10-point multi-touch) |
| Diagonal Size |
10.1" |
| Native Resolution |
1920 x 1200 (Full HD) |
| Widescreen Display |
Yes |
| Image Aspect Ratio |
16:10 |
| Horizontal Viewing Angle |
+80 / -80 |
| Image Brightness |
320 cd/m² |
| Image Contrast Ratio |
1000:1 |
| Monitor Features |
Anti-glare, Wide Viewing Angle, 360° rotatable, smudge resistant, TDDI Technology |
| Graphics Controller |
| Graphics Processor |
Intel UHD Graphics Shared Video Memory (UMA) |
| Video Interfaces |
HDMI, DisplayPort |
| Audio Output |
| Compliant Standards |
High Definition Audio |
| Speakers Included |
4 |
| Input Device |
| Type |
No keyboard, no mouse |
| Audio Input |
| Type |
4 microphones |
| Networking |
| Ethernet Controller |
Intel I219-LM |
| Wireless LAN Supported |
Yes |
| Wireless NIC |
Intel Wireless-AC 9560 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features |
Wake on LAN (WoL), Intel Active Management Technology (AMT) 12, dual stream (2x2) |
| Expansion / Connectivity |
| Interfaces |
1 x headphones/microphone (1 in front)
2 x USB 3.1 Gen 2 (2 side)
1 x USB-C (1 side)
1 x DisplayPort (1 side)
1 x HDMI (1 side)
1 x LAN (Gigabit Ethernet) (1 side) |
| Miscellaneous |
| Cables Included |
ThinkSmart One Cable |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), secure cable management door |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
RoHS, TUV Rheinland Ultra Low Noise Certification |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Device Type |
Power adapter |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
90 Watt |
| Efficiency |
88% |
| Operating System / Software |
| OS Provided |
Windows 10 IoT Enterprise CBB 64-bit Edition English |
| Manufacturer Warranty |
| Service & Support |
Base warranty - 3 years - on-site
Extended warranty - 3 years - on-site |
| Dimensions & Weight |
| Width |
24 cm |
| Depth |
20 cm |
| Height |
18.53 cm |
| Weight |
2.45 kg |
