| Marketing Description |

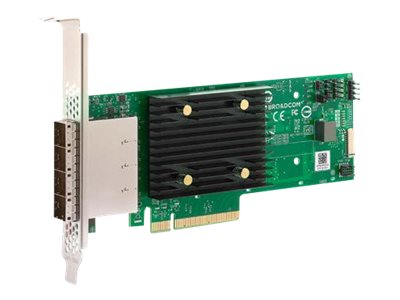

| The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS. |
| Product Features |
-
Enhanced connectivity
Equipped with a 36-pin 4x Mini SAS HD (SFF-8644) connector, the Lenovo ThinkSystem 440-16e storage controller ensures high-speed, reliable connectivity for your storage devices, supporting up to 16 channels for extensive storage options.
-
Robust performance
Featuring a Broadcom SAS3816 processor and a data transfer rate of 12 Gbit/s, this storage controller is designed to handle intensive data workloads, ensuring smooth and efficient operation of your hard drives and solid state drives.
-
Versatile compatibility
With support for both SATA 6 Gb/s and SAS 12 Gb/s interfaces, the Lenovo ThinkSystem 440-16e offers flexible compatibility with a wide range of storage devices, making it a versatile choice for diverse IT environments.
-
Advanced features
This storage controller comes with an array of advanced features including CacheCade, FastPath, and JBOD support, enhancing the performance and reliability of your storage solutions.
-
Reliable operation
Designed to operate within a wide range of environmental conditions and compliant with multiple standards, the Lenovo ThinkSystem 440-16e ensures dependable performance and adherence to global regulatory requirements.
|
| General |
| Device Type |
Storage controller - plug-in card - low profile |
| Host Bus |
PCIe 4.0 x8 |
| Storage Controller |
| Interface |
SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate |
12 Gbit/s |
| Supported Devices |
Hard drive, solid state drive |
| Channel Qty |
16 |
| Max Storage Devices Qty |
16 |
| Processor |
Broadcom SAS3816 |
| Expansion / Connectivity |
| Interfaces |
4 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (internal) |
| Miscellaneous |
| Included Accessories |
Low-profile bracket |
| Features |
Disk Data Format (DDF) support, CacheCade, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, JBOD support |
| Compliant Standards |
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| Software / System Requirements |
| OS Required |
Microsoft Windows Server 2016, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 7.9 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
55 °C |
| Humidity Range Operating |
20 - 90% (non-condensing) |
| Compatibility Information |
| Designed For |
Lenovo ThinkSystem SR530 7X08
Lenovo ThinkSystem SR590 7X99
Lenovo ThinkSystem SR630 7X02
Lenovo ThinkSystem SR630 V2 7Z71
Lenovo ThinkSystem SR645 7D2X
Lenovo ThinkSystem SR650 7X06
Lenovo ThinkSystem SR650 V2 7Z73
Lenovo ThinkSystem SR665 7D2V, 7D2W
Lenovo ThinkSystem ST650 V2 7Z74 |
