| Marketing Description |

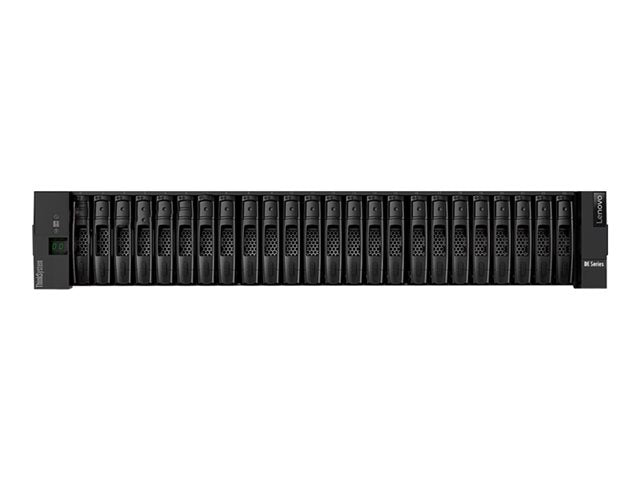

| Lenovo ThinkSystem DE4000H is a scalable, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications. |
| Product Features |
-
Efficient power management
Equipped with an 80 PLUS Platinum certified internal power supply, this storage array ensures efficient power usage and management, providing up to 913 W of power with redundancy for reliable operation.
-
High-capacity storage
Featuring 24 hot-swap 2.5" SFF expansion bays, the Lenovo ThinkSystem DE4000H Hybrid offers a flexible and scalable solution for high-capacity storage needs, supporting a wide range of Serial Attached SCSI 3 interfaces.
-
Advanced RAID support
With support for multiple RAID levels, including RAID 0, 1, 10, 3, 5, and 6, this hard drive array delivers robust data protection and performance, catering to diverse storage requirements and workloads.
-
Comprehensive compliance
Adhering to a broad spectrum of compliance standards, including AS/NZS CISPR22 Class A and UL 60950-1, the Lenovo ThinkSystem DE4000H Hybrid ensures compatibility and safety across various operational environments.
-
Optimal environmental adaptability
Designed to operate within a wide range of temperatures (5°C to 45°C) and humidity (8 - 90% non-condensing), ensuring reliable performance in diverse working conditions.
|
| General |
| Device Type |
Hard drive array |
| Enclosure Type |
Rack-mountable - 2U |
| Chassis |
| Supported Devices / Modules Qty |
24 |
| Supported Drives |
SAS-3 |
| Storage |
| HDD Array External Interface |
16Gb Fibre Channel |
| Host Channels |
2 |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SAS 12Gb/s |
| Data Transfer Rate |
1.2 GBps |
| Cache / Buffer Size (Max) |
16 GB |
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10 |
| Hard Drive |
| Type |
No HDD |
| Expansion / Connectivity |
| Expansion Bays |
24 (total) / 24 (free) x hot-swap - 2.5" SFF |
| Expansion Slots |
2 (total) / 0 (free) x expansion slot |
| Interfaces |
2 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644)
6 x 16Gb Fibre Channel - SFP+
1 x Ethernet 1000 (management) - RJ-45
1 x serial (management) - 5 pin Micro-USB Type A
1 x serial (management) - RJ-45 |
| Miscellaneous |
| Features |
Application snapshots, Dynamic Disk Pool (DDP) Technology |
| Cables Included |
1 x micro-USB to USB cable - 2 m
2 x power cable (C13-C14) - 1.5 m |
| Compliant Standards |
BSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Included Accessories |
Rack mounting kit |
| Power |
| Power Device |
2 x internal power supply - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Voltage Required |
AC 120/230 V - 50/60 Hz |
| Power Provided |
913 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Dimensions & Weight |
| Width |
44.9 cm |
| Depth |
55.3 cm |
| Height |
8.5 cm |
| Weight |
27.6 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
8 - 90% (non-condensing) |
