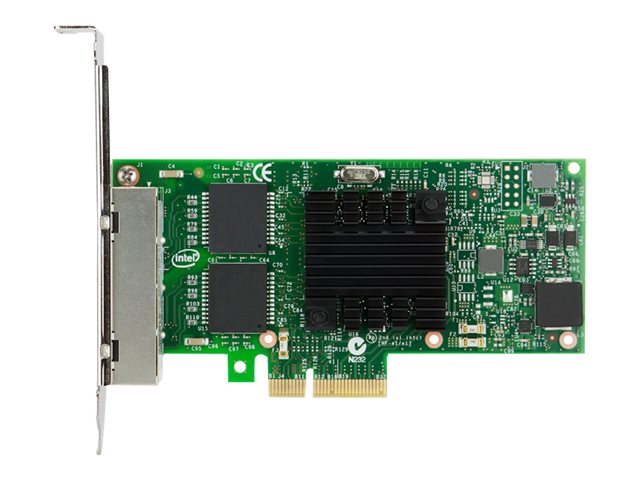

LENOVO ThinkSystem Intel I350-T4 PCIe 1Gb 4-портов RJ45 Ethernet адаптер

LENOVO ThinkSystem Intel I350-T4 PCIe 1Gb 4-портов RJ45 Ethernet адаптер

Lenovo
Код KXG0132664

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

LENOVO ThinkSystem Intel I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter

Manufacturer LENOVO
Manufacturer Part No 7ZT7A00535

Marketing Description
Based on the Intel I350 Gigabit Ethernet adapters from Lenovo build on Intel's history of delivering Ethernet products with flexible design and robust driver support. Mezzanine LAN-on-Motherboard Generation 2 (ML2) is a the cost-effective adapter form factor for System x servers that offers the flexibility advantages of a PCIe adapter while supporting integrated networking features such as Wake-on-LAN and direct connectivity to the server's IMM2 service processor for out-of-band systems management.
Product Features
  • Enhanced connectivity
    With four RJ-45 connectors, this network adapter offers multiple ports for enhanced connectivity, ensuring efficient network traffic management and expanded communication capabilities.
  • Robust performance
    Leveraging Intel's I350 processor, the adapter delivers reliable and high-speed data transfer rates of up to 1 Gbps, suitable for demanding network environments.
  • Advanced networking features
    Features such as Intel QuickData Technology, Virtual Machine Device Queues (VMDq), and Single Root I/O Virtualization (SR-IOV) provide optimized data processing and improved network virtualization, enhancing overall system efficiency.
  • Versatile support for standards
    Compliance with multiple IEEE standards including 802.1Q, 802.1p, and 802.3az, ensures broad compatibility and interoperability with various networking equipment and protocols.
  • Durable and reliable
    Designed to operate in a wide range of humidity and temperature, the adapter ensures stable performance in diverse environmental conditions, from 0°C to 55°C and 5 to 85% non-condensing humidity.
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x4
Networking
Ports 1000Base-T x 4
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-T
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Capacity Jumbo frame size: 9500
Features WOL, auto-uplink (auto MDI/MDI-X), Intel I/OAT, VMDq, PXE support, RSS, SR-IOV, Intel QuickData Technology, MSI-X, TCP/IP checksum offload, VEPA, MSI
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, IEEE 1588-2008
Processor / Memory
Processor 1 x Intel I350
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45
Miscellaneous
Included Accessories Low-profile bracket
Power
Power Consumption Operational 5.9 Watt
Dimensions & Weight
Width 1.7 cm
Depth 13.5 cm
Height 6.9 cm
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 55 °C
Humidity Range Operating 5 - 85% (non-condensing)
Compatibility Information
Designed For Lenovo ThinkAgile MX3330-F Appliance 7D19
Lenovo ThinkAgile MX3330-H Appliance 7D19
Lenovo ThinkAgile MX3331-F Certified Node 7D67
Lenovo ThinkAgile MX3331-H Certified Node 7D67
Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B
Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66
Lenovo ThinkAgile VX 1SE Certified Node 7Z58
Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12
Lenovo ThinkAgile VX1320 Appliance 7Z58
Lenovo ThinkAgile VX2330 Appliance 7Z62
Lenovo ThinkAgile VX3330 Appliance 7Z62
Lenovo ThinkAgile VX3331 7Z62
Lenovo ThinkAgile VX3530-G Appliance 7Z63
Lenovo ThinkAgile VX3575-G Integrated System 7D43
Lenovo ThinkAgile VX5520 Appliance 7Y94
Lenovo ThinkAgile VX5530 Appliance 7Z63
Lenovo ThinkAgile VX5575 Integrated System 7D43
Lenovo ThinkAgile VX7330-N Appliance 7Z62
Lenovo ThinkAgile VX7530 Appliance 7Z63
Lenovo ThinkAgile VX7575 Integrated System 7D43
Lenovo ThinkAgile VX7576 Certified Node 7D43
Lenovo ThinkAgile VX7820 Appliance 7Z13
Lenovo ThinkSystem SD530
Lenovo ThinkSystem SR250
Lenovo ThinkSystem SR250 V2 7D7Q
Lenovo ThinkSystem SR530
Lenovo ThinkSystem SR550
Lenovo ThinkSystem SR570
Lenovo ThinkSystem SR590
Lenovo ThinkSystem SR630
Lenovo ThinkSystem SR630 V2 7Z71
Lenovo ThinkSystem SR645 7D2X
Lenovo ThinkSystem SR650
Lenovo ThinkSystem SR650 V2 7D15, 7Z73
Lenovo ThinkSystem SR665 7D2V, 7D2W
Lenovo ThinkSystem SR670 V2 7Z23
Lenovo ThinkSystem SR850
Lenovo ThinkSystem SR950
Lenovo ThinkSystem ST250
Lenovo ThinkSystem ST250 V2 7D8F
Lenovo ThinkSystem ST50
Lenovo ThinkSystem ST50 V2 7D8J
Lenovo ThinkSystem ST550
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
