| Marketing Description |

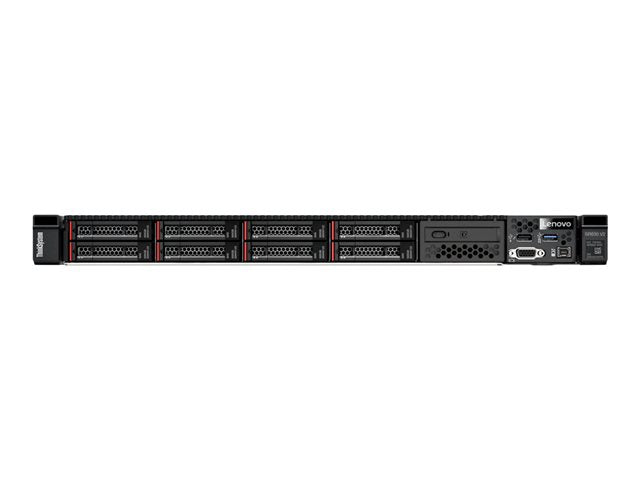

| The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC. |
| Product Features |
-
Efficient design
The Lenovo ThinkSystem SR630 V2's rack-mountable form factor is designed for space efficiency and scalability, fitting seamlessly into your business infrastructure.
-
Powerful performance
Equipped with an Intel Xeon Silver processor and DDR4 SDRAM, this server delivers reliable performance for a wide range of business applications.
-
Advanced security
Featuring a Trusted Platform Module (TPM 2.0) security chip, the Lenovo ThinkSystem SR630 V2 ensures your data is protected against external threats and unauthorized access.
-
Versatile connectivity
With a variety of interfaces including USB 3.1 Gen 1, USB 2.0, VGA, and management ports, this server offers flexible connectivity options for both current and future needs.
-
Robust video capabilities
The Matrox G200 graphics processor with 16 MB of video memory provides reliable video output for management and diagnostics, supporting VGA interfaces.
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 1U |
| Built-in Devices |
6 x fans |
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability |
2-way |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4310 |
| Clock Speed |
2.1 GHz |
| Max Turbo Speed |
3.3 GHz |
| Number of Cores |
12-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| Chipset Type |
Intel C621A |
| Cache Memory |
| Installed Size |
L3 Cache - 18 MB |
| Cache Per Processor |
18 MB |
| RAM |
| Installed Size |
32 GB (installed) / 8 TB (max) |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
2667 MHz |
| Rated Memory Speed |
3200 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
32 (Total) / 31 (empty) |
| Features |
Mixing of different types of memory modules is not supported, slots 17 - 32 are available in two-processor configuration only, Memory Mirroring, registered |
| Configuration Features |
1 x 32 GB |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name |
ThinkSystem RAID 9350-8i |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60, JBOD |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200 |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Remote Management Controller |
XClarity Controller (XCC) Enterprise |
| Expansion / Connectivity |
| Bays |
8 (total) / 8 (free) x hot-swap 2.5" |
| Slots |
1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces |
4 x USB 3.1 Gen 1 (1 front, 3 rear)
1 x USB 2.0 (1 in front)
2 x VGA (1 front, 1 rear)
1 x management
1 x diagnostics
1 x USB 3.1 Gen 1 (1 internal) |
| Miscellaneous |
| Compliant Standards |
BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, CELP, HJ 2507-2011, CNS 15663 section 5, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
750 Watt |
| 80 PLUS Certification |
80 PLUS Titanium |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Bronze |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
3.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Dimensions & Weight Details |
58.7 cm - 99.8 cm - 22.5 cm |
| Width |
44 cm |
| Depth |
77.3 cm |
| Height |
4.3 cm |
| Weight |
26.3 kg |
