| Marketing Description |

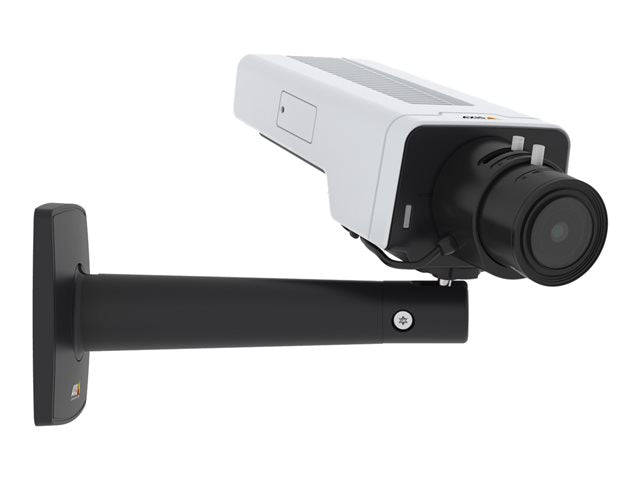

| This high-performance, fixed box camera acts as a deterrent and is ideal for surveillance in wide, open areas where a high level of detail is needed, such as at airports, cargo areas and public transportation systems. AXIS P1378 is free of hazardous brominated and chlorinated flame retardants (BFR/CFR free), increasing the camera's health and performance while lowering environmental impacts. |
| Product Features |
-
No detail too small
With excellent 4K resolution, AXIS P1378 captures detailed images of fast-moving objects and people. Thanks to Axis Zipstream with support for H.264/H.265, the camera provides exceptional savings on bandwidth and storage requirements without compromising image quality. It offers electronic image stabilization for stable images in situations where the camera is subject to vibrations. Plus, there's a video streaming indicator making it easy to check that the video is up and running.
-
Quality you can rely on
AXIS P1378 offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. Featuring P-Iris, it lets you capture images with better contrast, clarity, resolution and depth of field. It also features barrel distortion correction, defogging functionality, scene profiles and corridor format for optimized image settings.
-
Keeping you secure
AXIS P1378 is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it offers shock detection as well as a tampering alarm so you can be informed if there's any attempts to interfere with the camera, such as blocking or spray painting.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Audio Formats |
G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type |
Wall mount |
| Connectivity Technology |
Wired |
| Width |
21.4 cm |
| Depth |
8 cm |
| Height |
5.7 cm |
| Weight |
750 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution |
3840 x 2160 |
| Motion Detection |
Yes |
| Video Modes |
4K |
| Exposure Range |
1/5 sec - 1/8500 sec |
| Minimum Illumination |
0.15 lux - colour - F1.5 - 50 IRE
0.03 lux - B&W - F1.5 - 50 IRE |
| Digital Video Capture Resolution |
3840 x 2160, 160 x 90 |
| Frame Rate (max) |
30 frames per second |
| RAM |
2 GB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Privacy Mask Function, full duplex audio, Lightfinder technology, active tampering alarm, digital PTZ function, Event Notification, password protection, distortion correction function, shock detection, IR Corrected lens, Audio Detection, OptimizedIR, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, IP address filtering, electronic image stabilisation, auto defogging, secure boot, ONVIF (Profile T) support |
| Image Sensor |
| Type |
CMOS 1/1.8" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
2.6 x |
| Focal Length |
3.9 mm - 10 mm |
| Lens Iris |
F/1.5 auto iris (P-Iris) |
| Horizontal Field of View (degree) |
45 - 119 |
| Vertical Field of View (degree) |
25 - 62 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, USGv6 |
| Control Interface |
RS-485, RS-422 |
| Alarm Inputs Qty |
2 |
| Alarm Outputs Qty |
2 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Audio line out - 3.5 mm jack
Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Stand, connector kit, Resistorx L-key, Torx L-key T6 |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, EN 60529, IEC 62471, IEC 60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267 |
| Colour |
Black, white |
| Power |
| Power Requirements |
DC 12 - 28 V / PoE+ |
| Power Device |
10.7 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
5 - 95% (non-condensing) |
