| Marketing Description |
| NETGEAR Smart Managed Pro Switches offer powerful L2 and L2+/Layer 3 Lite features, great PoE functionality, and enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value. |
| Product Features |
-
IEEE 802.3at PoE+
PoE devices encompass VoIP phones, IP Security Cameras, Wireless access points, proximity sensors, door locks and other IoT devices. Wave 2 802.11ac access points and PTZ cameras increasingly require 30W (PoE+).
-
Dedicated SFP fiber uplinks
Dedicated SFP ports provide fiber uplinks without sacrificing any downlink Gigabit port. 4 SFP ports provide not only redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover.
-
Dynamic VLAN assignment
IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.
-
Static routing
A simple way to provide segmentation of the network with internal routing through the switch - reserving the router for external traffic routing only, making the entire network more efficient.
-
Comprehensive IPv6 Support for Management, ACL and QoS
Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement.
-
Build current network with future in mind
Ensure investment protection and a smooth migration to IPv6-based network without switch replacement. Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra Multicast router.
-
Robust security features
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
|
| General |
| Device Type |

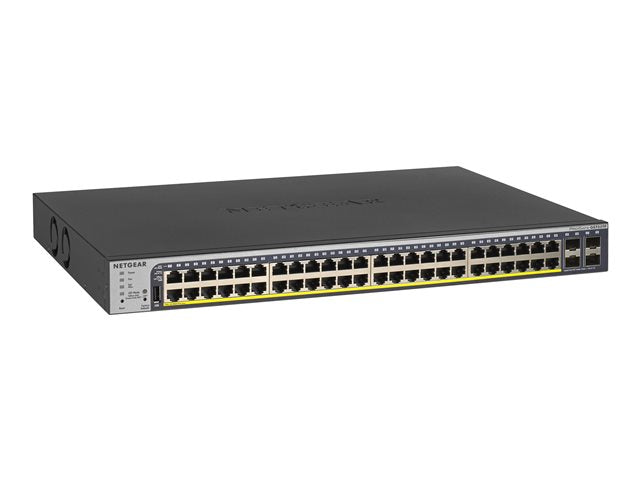

Switch - 48 ports - L3 - smart |
| Enclosure Type |
Rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
380 W |
| Performance |
Bandwidth: 104 Gbps
Forwarding performance (64-byte packet size): 77.38 Mpps |
| Capacity |
ACL: 100
ARP entries: 512
VLANs supported: 256
IPv4 routes (static): 32
IPv6 routes (static): 32
IGMP multicast groups: 512 |
| MAC Address Table Size |
16K entries |
| Jumbo Frame Support |
10KB |
| Routing Protocol |
Static IP routing |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Encryption Algorithm |
TLS |
| Authentication Method |
RADIUS, TACACS+ |
| Features |
DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, QoS, MLD snooping, DAI, DHCP relay, LACP, DHCP client, MVR, GARP, GVRP, ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, DoS protection, WRR, Auto VoIP, MAC lockdown |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor |
1: 700 MHz |
| RAM |
128 MB |
| Flash Memory |
32 MB |
| Status Indicators |
Port transmission speed, PoE, link/activity |
| Expansion / Connectivity |
| Interfaces |
48 x 10/100/1000 Base-T RJ-45 PoE+
4 x 1000Base-X SFP
1 x USB |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
1 |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| MTBF |
1,737,411 hours |
| Compliant Standards |
EN 60950, EN55024, CSA 22.2 No. 950, CB, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, FCC CFR47 Part 15 B Class A, IEC 950, ANSI C63.4-2014, EN 55022/CISPR 22 Class A, ICES-003:2016 issue 6 Class A, AS/NZS CISPR22:2009+A1:2010 Class A, AN/NZS 60950.1:2015, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
44 cm |
| Depth |
31 cm |
| Height |
4.32 cm |
| Weight |
4.93 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - phone consulting - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
