| Marketing Description |
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for Wi-Fi 6 Access Points now imply the need for faster speeds in the network.

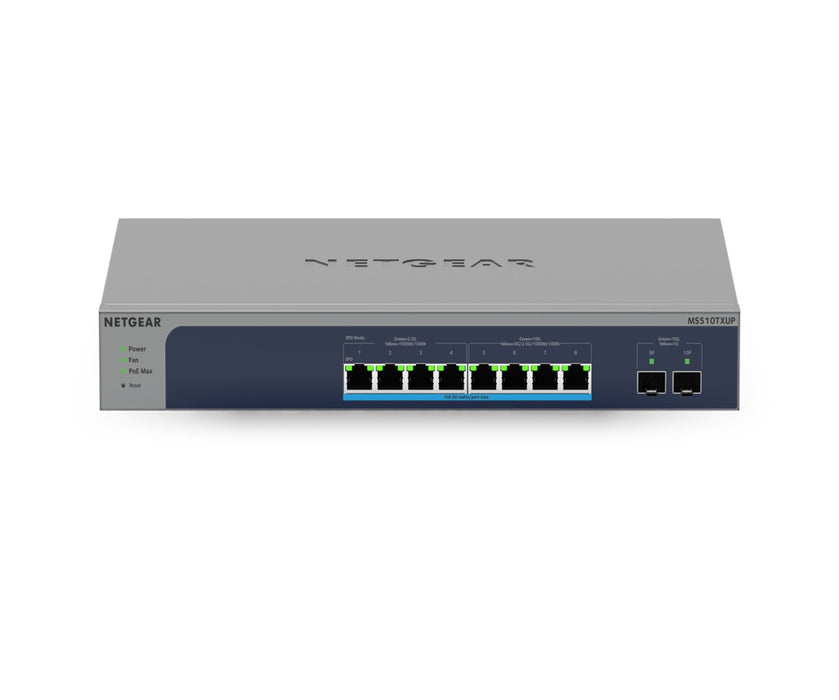

The MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as Wi-Fi 6 Access Points (eg. WAX610 from NETGEAR), multi-gig or 10G NAS.
NETGEAR Smart Switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.
To empower the Wireless and PoE applications, NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser. |
| Product Features |
-
Enhanced connectivity
With a variety of ports including 100/1000/2.5G and 10G SFP+ uplinks, the NETGEAR Smart MS510TXUP switch ensures versatile connectivity options for a wide range of devices and network demands, making it an ideal solution for growing businesses.
-
Robust security features
Equipped with advanced security protocols such as Extensible Authentication Protocol (EAP), RADIUS, and TACACS+, along with TLS 1.2 encryption, this switch provides a secure networking environment to protect sensitive data from unauthorized access.
-
Efficient power management
Featuring PoE++ with a generous 295 W budget, the switch delivers power and data over a single cable to PoE-enabled devices like IP cameras and VoIP phones, reducing cable clutter and power infrastructure costs.
-
High performance
Boasting a fabric throughput of 140 Gbps and forwarding rates up to 14.8 Mpps, the MS510TXUP switch handles large data volumes with ease, ensuring smooth and reliable network performance even under heavy traffic conditions.
-
Smart management features
Cloud managed with support for Zero-touch provisioning (ZTP) and dual firmware images, this switch simplifies network setup and maintenance, offering a user-friendly experience without compromising on advanced functionalities.
|
| General |
| Device Type |
Switch - 8 ports - L3 Lite - smart |
| Enclosure Type |
Rack-mountable, desktop |
| Ports |
4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) |
PoE++ |
| PoE Budget |
295 W |
| Performance |
Fabric throughput: 140 Gbps
Forwarding rate (64‑byte packets): 14.8 Mpps
2.5 Gbps copper latency (64-byte packets): 5.903 µs
2.5 Gbps copper latency (1518-byte packets): 6.040 µs
2.5 Gbps copper latency (9216-byte packets): 6.079 µs
10 Gbps copper latency (64-byte packets): 2.420 µs
10 Gbps copper latency (1518-byte packets): 2.501 µs
10 Gbps copper latency (9216-byte packets): 2.499 µs
10 Gbps fibre latency (64-byte packets): 1.257 µs
10 Gbps fibre latency (1518-byte packets): 1.337 µs
10 Gbps fibre latency (9216-byte packets): 1.348 µs |
| Capacity |
Packet buffer size: 2 MB
ACL entries (ingress): 100
VLANs supported: 256
IGMP groups: 256
Priority queues: 8
DHCP snooping entries: 256 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
10KB |
| Routing Protocol |
IGMP, STP, RSTP, MSTP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol |
IPv6, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, RADIUS, RSTP, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+ |
| Encryption Algorithm |
TLS 1.2 |
| Authentication Method |
RADIUS, Extensible Authentication Protocol (EAP), TACACS+ |
| Features |
ACL support, 802.1x authentication, Advanced QoS, DSCP support, DoS attack prevention, IGMP querier, IGMP snooping, egress rate limiting, EEE, cable test, GVRP, Voice VLAN, LLDP support, LLDP-MED, LACP, cloud managed, VoIP support, ZTP, DHCP snooping, protected ports, loop prevention, port mirroring, dual firmware images, firmware upgradable, store and forward, WRR, SP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, flow control, full duplex mode, block unknown multicast, DHCP client, Guest VLAN, DiffServ support, loopback detection, DNS client, BPDU, EAPOL, SNTP support, UDP, Syslog support, 3 fans |
| Compliant Standards |
IEEE 802.1x, IEEE 802.1p, IEEE 802.3az, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, UPnP |
| Processor |
: 1 GHz |
| RAM |
256 MB |
| Flash Memory |
64 MB |
| Status Indicators |
Power, fan, link/activity/speed, PoE max |
| Expansion / Connectivity |
| Interfaces |
4 x 100/1000/2.5G RJ-45 PoE++ - 60 W
4 x 100/1000/2.5G/5G/10G RJ-45 PoE++ - 60 W
2 x 10GBase-X SFP+ uplink |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
1 |
| Power Consumption Operational |
380 Watt |
| Miscellaneous |
| Included Accessories |
Rubber feet |
| Rack Mounting Kit |
Included |
| MTBF |
848,553 hours |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
33 cm |
| Depth |
20.6 cm |
| Height |
4.3 cm |
| Weight |
2.51 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
