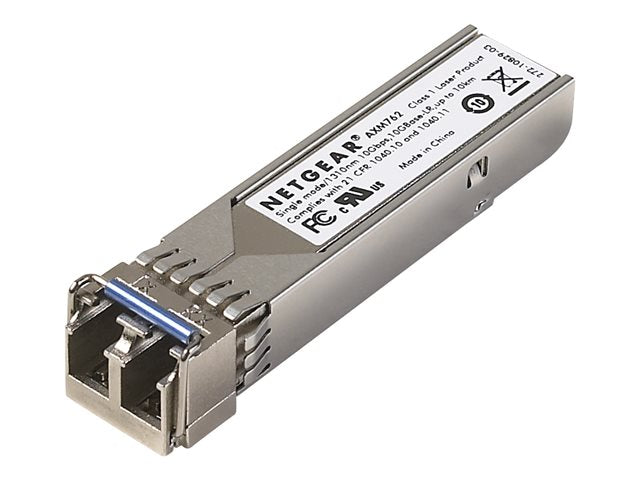

NETGEAR ProSafe 10GBASE-LR SFP+ - 10 модула AXM762 модули - насипно

NETGEAR ProSafe 10GBASE-LR SFP+ - 10 модула AXM762 модули - насипно

Netgear
Код KXG0132567

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

NETGEAR AXM762P10 10GBASE-LR SFP+ комплект от 10 модула AXM762 long reach Singlemode

Manufacturer NETGEAR
Manufacturer Part No AXM762P10-10000S

Marketing Description
This GBIC is built to insert into any one of the two built-in 10 GE SFP+ interfaces of GSM7328Sv2 and GSM7352Sv2, and into the 10GE SFP+ interface of AX743 adapter module for GSM73xxS/GSM73xxSv2. Once inserted (hot-swappable), the AXM761 10GBASE-LR SFP+ (LC connector) drives 10 Gigabit Ethernet up to 10 km distances with 9/125µm SMF single mode fiber cables, or up to 33 m distances with 62.5/125µm OM1 multimode fiber cables.
This is a pack of 10 AXM762 SFP+ modules.
Product Features
  • Adds 10Gigabit Ethernet "long-reach" LC fiber connectivity to the standard SFP+ interfaces
  • Fits into the two built-in 10GE SFP+ interfaces of GSM72xxPS / GSM73xxS
  • Fits into the 10GE SFP+ interface of the SFP+ Adapter module AX743
  • Fits into standard 10 Gigabit SFP+ interfaces
  • LC connector
  • Drives 10 Gigabit Ethernet up to 10 km distances with 9/125 µm SMF single mode fiber cables
  • Drives 10 Gigabit Ethernet up to 300 m distances with 50/125 µm laser-optimized OM3 multimode fiber cables
  • Drives 10 Gigabit Ethernet up to 33m distances with 62.5/125 µm OM1 multimode fiber cables
  • Provides hot-swappable installation or removal
  • 10GBaseLR fiber technology is the same for XFP and SFP+: one Switch equipped with XFP 10GBase-LR LC connectivity can uplink to another Switch equipped with SFP+ 10GBase-LR LC connectivity using the same fiber
General
Packaged Quantity 10 (specifications are for single item)
Device Type SFP+ transceiver module
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Cabling Type 10GBase-LR
Data Link Protocol 10GbE
Data Transfer Rate 10 Gbps
Optical Wave Length 1310 nm
Max Transfer Distance 300 m
Compliant Standards IEEE 802.3ae
Expansion / Connectivity
Interfaces 1 x Ethernet 10GBase-LR - LC single-mode x 2
Compatible Slots 1 x SFP+
Miscellaneous
MTBF 4,986,536 hours
Compliant Standards UL 1950, CSA 22.2 No. 950, RoHS
Dimensions & Weight
Width 1.37 cm
Depth 5.57 cm
Height 1.19 cm
Weight 19.2 g
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 70 °C
