| Marketing Description |

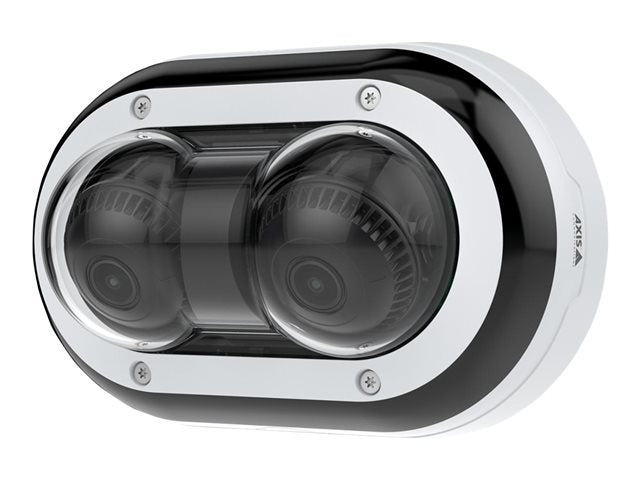

| This dual-sensor, multidirectional camera delivers excellent image quality even in challenging light conditions. Built on ARTPEC-8, it offers support for advanced analytics based on deep learning on the edge. |
| Product Features |
-
See it all - 24/7
AXIS P4705-PLVE includes 360° IR illumination with individually controllable LEDs so you'll enjoy clear images even in low light or complete darkness as well as undistorted colors during the day. Featuring AXIS Lightfinder you get color images recorded in near darkness. And Forensic WDR ensures clarity when there's both dark and light areas in the scene. It offers two 2MP channels and a frame rate of 30 fps letting you capture both wide angle and zoomed-in, detailed views. And, thanks to 2.5x zoom it delivers wide views and you can zoom in for all the details. Furthermore, audio input allows you to listen in to transactions or incidents.
-
Brilliant design
This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads and each head can be controlled individually so you can monitor scenes in two directions in wide or zoomed-in views. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously.
-
Deep learning on the edge
Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS object analytics, AXIS P4705-PLVE can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
-
Cost-efficient installation
With two camera heads in one camera, AXIS P4705-PLVE offers cost-effective installation. That's because there's only one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It offers edge storage for added storage capability and reliability. And, thanks to remote zoom and focus capabilities it eliminates the need for hands-on fine tuning and ensures fast and accurate installation. Furthermore, Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
|
| General |
| Device Type |
Network panoramic camera |
| Audio Support |
Yes: built-in microphone, two-way audio capability |
| Audio Formats |
LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
13.3 cm |
| Depth |
20.8 cm |
| Height |
8.8 cm |
| Weight |
975 g |
| Localisation |
English, German, French, Spanish, Italian, Russian, Chinese (simplified), Japanese, Korean, Portuguese, Polish, Chinese (traditional) |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format |
MJPEG, H.264, H.265 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Exposure Range |
1.5 sec - 1/20000 sec |
| Minimum Illumination |
0.1 lux - colour - F1.9 - 50 IRE
0 lux - B&W - F1.9 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
15 m |
| Digital Video Capture Resolution |
640 x 360, 1920 x 1080 |
| Frame Rate (max) |
60 frames per second |
| RAM |
2 GB |
| Flash Memory |
8 GB |
| Features |
Forensic WDR, progressive scanning, infrared-cut filter, IR Corrected lens, remote zoom, remote focus, -170° / +170° rotation, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 90° image rotation, brightness control, compression, contrast control, Corridor mode, day/night threshold, dynamic text overlay, exposure mode, image mirror, image overlay, polygon privacy mask, programmable exposure zones, saturation control, sharpness control, tone mapping, white balance, auto gain control, network speaker pairing, password protection, IP address filtering, HTTPs encryption, digest authentication, Access Control, user access log, centralised certificate management, brute force delay protection, signed firmware, secure boot, secure keystore, Trusted Platform Module (TPM), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Audio Detection, text overlay, e-mail alerts, Pixel Counter Support, aluminium housing, plastic housing, NAS-Ready, 360° field of view, Power over Ethernet, Lightfinder technology |
| Image Sensor |
| Type |
2 x 2 MP PS RGB CMOS 1/1.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2.5 x |
| Focal Length |
3.3 mm - 8.1 mm |
| Lens Iris |
F/1.9-3.2 fixed iris |
| Min Focus Distance |
50 cm |
| Horizontal Field of View (degree) |
39 - 107 |
| Vertical Field of View (degree) |
22 - 55 |
| Diagonal Field of View (degree) |
45 - 131 |
| Panning |
| Range (degree) |
-110 to +110 |
| Tilting |
| Range (degree) |
-75 to +75 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
TLS, EAP, IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMPv2, IGMPv3, IGMP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45
Microphone - 3.5 mm jack |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Mounting bracket, weathershield, connector kit, connector guard |
| Compliant Standards |
IEEE 802.1x, FIPS 140-2, EAL 4, NEMA250 Type 4X, BFR-free, PVC-free, CFR free, IEEE 802.3at, AES-256, CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, AS/NZS CISPR 32 Class A, VCCI Class A, RCM, CAN/CSA-C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP67, IEC/EN 60529 IP66, MIL-STD-810H, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267 |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Class 4 |
| Power Device |
7.9 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence, AXIS Companion, AXIS Camera Station, AXIS Video Motion Detection, AXIS Device Manager |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% RH (condensing) |
