| Marketing Description |
| Sarix Enhanced (E) range cameras feature SureVision technology, delivering high definition (HD) resolution, consistent color science, fast processing power, and simultaneous advanced low-light performance with Wide Dynamic Range (WDR) and Anti-Bloom technologies. New advancements include 3D Noise Filtering, smooth response to illumination changes, and improved tone mapping to retain color accuracy and overall image contrast. Designed to install quickly, the cameras include Auto Back Focus (ABF), built-in analytics, and other advanced features needed for demanding security applications. |
| Product Features |
- True Wide Dynamic Range (WDR)
- Advanced low-light performance
- Anti-Bloom Technology
- 3D Noise Filtering
- Enhanced Tone Mapping
- Power over Ethernet (PoE), IEEE 802.3af
- Built-in Pelco Analytics suite
- Local storage (Micro SD)
- ONVIF Profile S and Profile G conformant
|
| General |
| Device Type |
Network surveillance camera (no lens) |
| Audio Support |
Yes: two-way audio capability, built-in microphone |
| Connectivity Technology |
Wired |
| Width |
7.82 cm |
| Depth |
7.54 cm |
| Height |
13.59 cm |
| Weight |
520 g |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
1/2 sec - 1/48000 sec |
| Minimum Illumination |
0.1 lux - colour - F1.2 - shutter 1/30 sec
0.005 lux - colour - F1.2 - shutter 1/2 sec
0.05 lux - B&W - F1.2 - shutter 1/30 sec
0.0013 lux - B&W - F1.2 - shutter 1/2 sec |
| Digital Video Capture Resolution |
1280 x 720, 640 x 480, 1280 x 960, 320 x 240, 1600 x 1200, 1920 x 1080, 320 x 176, 640 x 352, 800 x 448, 800 x 608 |
| Frame Rate (max) |
30 images per second |
| Supported Image Formats |
JPEG |
| Still Image Capture Resolution |
2016 x 1523 |
| Features |
Digital noise reduction, date/time stamp, progressive scanning, Power over Ethernet, Wide Dynamic Range (WDR), ONVIF support, Motion Detection Technology, infrared cut filter, text stamp, multi-streaming, password protection, Camera Sabotage Analytics, 3D Noise Filtering, SureVision 2.0 Technology |
| Image Sensor |
| Type |
2 MP CMOS 1/3" |
| Lens Construction |
| Type |
CS-mount |
| Lens Iris |
Auto iris (DC) |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, IGMP, SSH, LDAP, SSL, QOS, EAP |
| Expansion / Connectivity |
| Ports |

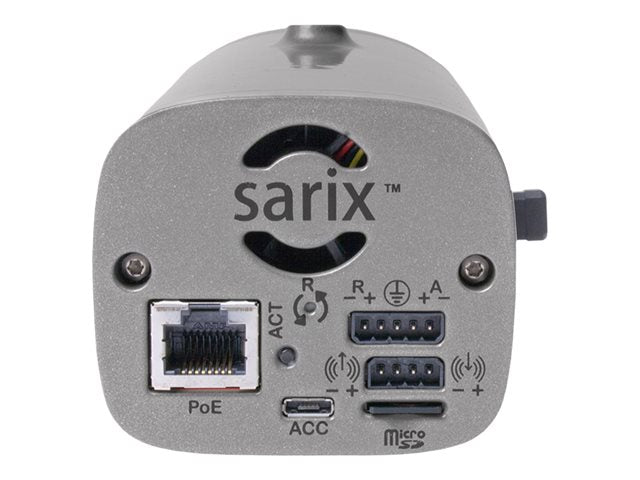

LAN/power - RJ-45
Audio line in - terminal block
Audio line out - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card |
| Miscellaneous |
| Compliant Standards |
FCC Class A certified, UL, C-Tick, ISO 9001, cUL, ICES-003, CB, KCC |
| Colour |
Silver |
| Power |
| Power Requirements |
PoE - 350 mA |
| Power Device |
9 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
20 - 85% (non-condensing) |
