| Marketing Description |
| The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks. |
| Product Features |
-
2nd Gen AMD EPYC processors and DDR4 ECC memory
The TS-h2490FU is armed with 2nd Gen AMD EPYC 7002 series processors (Rome). Based on the "Zen 2" architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.
-
U.2 NVMe Gen 3 x4 all-flash storage array

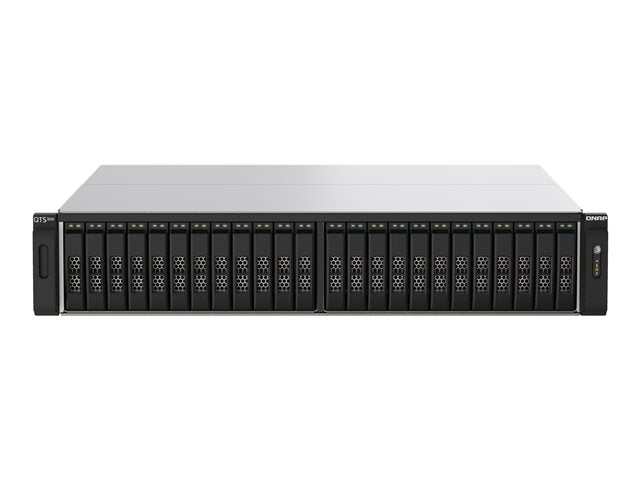

The 2U rackmount TS-h2490FU has 24 drive bays for U.2 NVMe Gen 3 x4 SSDs, with each individual SSD having 32Gb/s dedicated bandwidth for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TS-h2490FU provides solid foundations for overcoming complexity and performance demands in today's evolving data center workloads.
-
Multiple PCIe Gen 4 slots for flexible expansion
The TS-h2490FU is equipped with five PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h2490FU can take advantage of many PCIe cards to expand application potential.
-
Robust hardware paralleled to boost all-flash NVMe performance
The TS-h2490FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access. With a removable motherboard drawer design, IT staff can easily maintain the TS-h2490FU without needing to remove it from the rack.
|
| General |
| Device Type |
NAS server |
| Host Connectivity |
25 Gigabit Ethernet |
| Enclosure Type |
Rack-mountable |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 24 (max) |
| Width |
48.097 cm |
| Depth |
51.023 cm |
| Height |
8.83 cm |
| Weight |
15.2 kg () |
| Built-in Devices |
Led panel |
| Processor / Memory |
| Processors Installed |
1 x AMD EPYC 7302P 3 GHz |
| Number of Cores |
16-core |
| Max Supported Qty |
1 |
| Max Turbo Speed |
3.3 GHz |
| RAM |
256 GB (installed) / 4 TB (supported) - DDR4 |
| Features |
ECC, registered |
| Flash Memory Installed |
5 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
PCI Express 3.0 x4 (NVMe) |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| Networking |
| Data Link Protocol |
25GbE, 2.5GbE, 1GbE, 100Mb LAN |
| Network / Transport Protocol |
IPv4, IPv6, TCP/IP, DHCP, DDNS, HTTPs, HTTP, FTP, Telnet, SMB, iSCSI, SMTP, SFTP, NFS, PPTP, L2TP, IPSec |
| Remote Management Protocol |
HTTPS, HTTP, SSH, Telnet, SMTP, SNMP 2, SNMP 3, SFTP, TFTP, LDAP |
| Network Services Compatibility |
DHCP, DDNS, HTTPS, HTTP, Web-based Distributed Authoring and Versioning (WebDAV), FTP, Microsoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Microsoft Active Directory (AD), Network File System v3 (NFS v3), Network File System v4 (NFS v4), File Level Security (ACLs), SFTP |
| Features |
Hardware encryption, Jumbo Frames support, reset button, IPv4 and IPv6 dual stack, DHCP client, DHCP server, Wi-Fi USB dongle support, static routing, Link Aggregation, port trunking, failover protection, load balancing, NAT support, Spanning Tree Protocol (STP) support, web server, E-mail alert, SMS alert, push notification, SSD trim, compression (volume and LUN), deduplication (volume and LUN), snapshot (folder and LUN), iSCSI LUN clone/snapshot, VJBOD Cloud, wake on LAN (WOL), LDAP support, myQNAPcloud, Qsync, file sharing, event log, Syslog support, FTP server, FXP support, file station, Qfiling, hybrid backup sync, Amazon Glacier suport, Amazon S3 support, Microsoft Azure support, Google Drive support, OpenStack Swift-compatible, Dropbox support, Alibaba Cloud OSS support, Amazon Cloud Drive support, Backblaze B2 support, Microsoft OneDrive support, HiDrive support, hubiC support, Yandex Disk support, RTRR client, RTRR server, bandwidth control, Rsync compatible, Apple Time Machine compatible, built-in hardware transcoding, QuMagie, 1080p resolution support, 720p resolution support, Photo album server, Qsirch, VPN Server, VPN client, OpenVPN client, OpenVPN server, DLNA Media Server, Q'center (NAS CMS), Qfinder Pro, Chromecast support, download client, BitTorrent Client, Qcontactz, IFTTT agent, Qmiix agent, anti-malware protection, Access Control List (ACL) support, anti-virus protection, OpenStack compatible |
| Encryption Algorithm |
AES-NI, 256-bit AES, FIPS 140-2, SSL, TLS |
| Compliant Standards |
UPnP |
| Expansion / Connectivity |
| Expansion Bays |
24 (total) / 24 (free) x hot-swap - 2.5" |
| Expansion Slots |
1 x PCI Express 4.0 x16
2 x PCI Express 4.0 x8
2 x PCI Express 4.0 x4
16 (total) / 8 (free) x DIMM 288-pin |
| Interfaces |
2 x USB 3.2 Gen 1 - Type A
2 x 2.5 Gigabit Ethernet - RJ-45
4 x Ethernet 25Gb - SFP28 |
| Miscellaneous |
| Cables Included |
1 x network cable |
| Features |
Dual boot, reset button, built-in 4 cooling fans, audible alarm, S.M.A.R.T. support, power on after power fail, scheduled power on/off, LDAP support |
| Compliant Standards |
ISO 7779, TLS v1.1, TLS v1.0, TLS v1.2, FIPS 140-2, SSL |
| Included Accessories |
96 x flat head screws (for 2.5" HDD), 2 x power cables |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
1100 Watt |
| Software / System Requirements |
| Storage Operating System |
QNAP QuTS hero 4.5.0 |
| OS Required |
Apple MacOS X 10.10 or later, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Ubuntu 14.04, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
21.86 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Sound Emission |
53.5 dBA |
