| Marketing Description |
The versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces to houses of worship, lecture halls and medical environments.
The camera's 1/2.5-type Exmor R sensor captures up to 4K resolution images with excellent sensitivity, very low noise and rich, natural color reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.
High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.
Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio over an IP network.
Installation and set-up are easy, with a Picture Setting File allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC. |
| Product Features |
-
Excellent images, even in low light
The sensitive 1/2.5-type Exmor R sensor captures high-quality images with very low noise, even in dimly-lit environments.
-
Up to 40x zoom
Powerful zoom up to 40x (in Full HD) allows finely detailed frame-filling close-ups. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.
-
Wide viewing angle
Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approximately 70°.
-
Ideal for lecture capture
Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of speaker.
-
High speed movement and Picture Freeze Preset
Accurately capture the presenter's movements with maximum 300°/s pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a preset position - with no uncomfortable transitions for your audience.
-
Smooth pan-tilt-zoom
PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.
-
Simpler installation, lower costs
A single network cable carries camera power, video output and control signals to simplify installation and reduce cabling costs.
-
Remote viewing
View pictures remotely over the Internet from a web browser, with support for RTSP.
-
Fast, fuss-free set-up
The Picture Setting File function can apply the same camera settings among multiple cameras for fast set-up.
|
| General |
| Device Type |
Conference camera |
| Audio Support |
Yes: two-way audio capability |
| Audio Formats |
AAC-LC |
| Form Factor |
Dome |
| Camera Mount Type |
Ceiling mount |
| Connectivity Technology |
Wired |
| Width |
15.84 cm |
| Depth |
20.02 cm |
| Height |
17.75 cm |
| Weight |
1.8 kg |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom |
| Digital Video Format |
H.264, H.265 |
| Horizontal Resolution (TV Lines) |
1000 |
| Max Digital Video Resolution |
3840 x 2160 |
| Video Modes |
2160/29.97p, 2160/25p, 2160/23.98p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Digital Zoom |
40 |
| Exposure Range |
1/1 sec - 1/10000 sec |
| Minimum Illumination |
1.6 lux F2.0 - 50 IRE - shutter 1/30 sec |
| Digital Video Capture Resolution |
3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 576, 720 x 480, 640 x 360 |
| Frame Rate (max) |
60 frames per second |
| Features |
Auto gain control, auto exposure control, auto white balance, Clear Image Zoom, 256 preset positions, PTZ Motion Sync, Constant Bitrate (CBR), Variable Bitrate (VBR), Image Stabilisation, image flip |
| Image Sensor |
| Type |
8.5 MP Exmor R CMOS 1/2.5" |
| Lens Construction |
| Type |
Motorized zoom |
| Optical Zoom |
20 x |
| Focal Length |
4.4 mm - 88 mm |
| Lens Iris |
F/2.0-3.8 |
| Focus Adjustment |
Automatic, manual |
| Min Focus Distance |
8 cm |
| Horizontal Field of View (degree) |
70 |
| Panning |
| Range (degree) |
-170 to +170 |
| Speed (degree/sec) |
Up to 300 |
| Tilting |
| Range (degree) |
-20 to +90 |
| Speed (degree/sec) |
Up to 126 |
| Interfaces |
| Video |
HDMI, 3G-SDI |
| Network Protocols |
IPv4, IPv6, TCP/IP, UDP/IP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP, RTCP, RTSP, UPnP |
| Control Interface |
VISCA |
| Expansion / Connectivity |

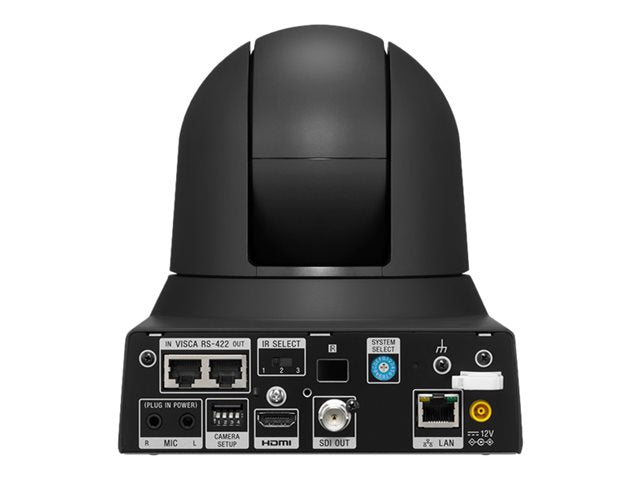

| Ports |
Audio line-in/microphone - 3.5 mm jack
HDMI output
3G-SDI
Serial RS-422 - RJ-45
LAN/power - RJ-45 |
| Miscellaneous |
| Included Accessories |
Remote control, 2 ceiling mount brackets, wire rope, cable fixing plate |
| Compliant Standards |
IEC 60130-10, JEITA, IEEE 802.3at |
| Colour |
Black |
| Power |
| Power Requirements |
DC 12 V / PoE Plus |
| Power Device |
Power adapter 25.5 Watt |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
