| Marketing Description |

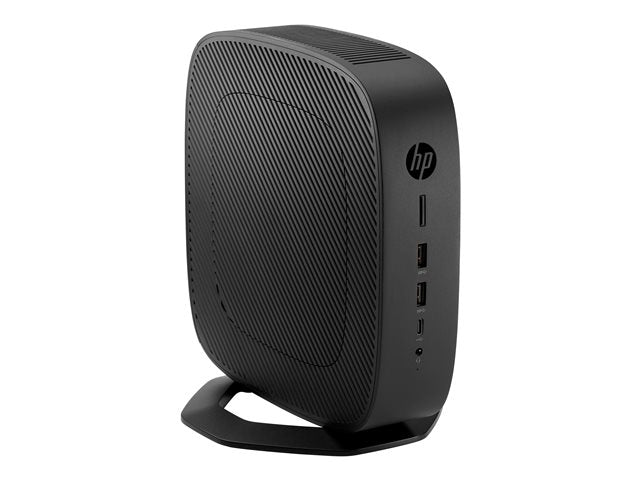

| HP t740 Thin Client is built to drive graphics-intensive workflows on virtual and local computing environments, projecting to up to six 4K displays. |
| Product Features |
-
Integrated TPM
Leverage a highly-secure, hardware-backed vault for storing and protecting authentication data.
-
Secure communication
Transfer data securely between data centers and thin clients with a wide variety of Fiber NIC options.
|
| General |
| Type |
Thin client |
| Product Form Factor |
SFF |
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip |
| Processor / Chipset |
| CPU |
AMD Ryzen Embedded V1756B |
| Clock Speed |
3.25 GHz |
| Max Turbo Speed |
3.6 GHz |
| Number of Cores |
Quad-Core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| CPU Upgradability |
Not upgradable |
| Cache Memory |
| Installed Size |
4 MB |
| Cache Per Processor |
4 MB |
| RAM |
| Installed Size |
8 GB (installed) / 32 GB (max) |
| Technology |
DDR4 SDRAM |
| Effective Memory Speed |
2400 MHz |
| Rated Memory Speed |
2400 MHz |
| Form Factor |
SO-DIMM 260-pin |
| Slots |
2 (Total) / 0 (empty) |
| Features |
Dual channel memory architecture |
| Configuration Features |
2 x 4 GB |
| Hard Drive |
| Type |
Flash - M.2 |
| Capacity |
1 x 128 GB |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
AMD Radeon Vega 8 |
| Video Interfaces |
DisplayPort |
| Max Monitors Supported |
4 |
| Input Device |
| Type |
Mouse, keyboard |
| Keyboard |
| Keyboard Name |
HP Business Slim Keyboard |
| Interface |
USB |
| Mouse |
| Technology |
Optical |
| Interface |
USB |
| Networking |
| Wireless LAN Supported |
Yes |
| Wireless NIC |
Intel Wireless-AC 9260 |
| Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards |
IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity |
| Slots |
2 (total) / 1 (free) x M.2 Card
1 (total) / 1 (free) x PCIe x16 - half-height (x8 mode) |
| Interfaces |
2 x USB 2.0
3 x USB 3.1 Gen 1 (1 front, 2 rear)
4 x DisplayPort
1 x USB 3.1 Gen 2
1 x USB-C 3.1 Gen 2
1 x headphones/microphone |
| Miscellaneous |
| Included Accessories |
90W Smart AC Adapter |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately) |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
FCC Class B certified, UL, BSMI, GS, CCC, ICES Class B, KCC Class B, CECP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, HP GSE |
| Power |
| Device Type |
Power adapter |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
90 Watt |
| Operating System / Software |
| OS Provided |
Windows 10 IoT Enterprise for Thin Clients 64-bit Edition |
| Software |
Citrix ICA, Mozilla Firefox, HP Easy Tools, HP Device Manager, LogOn Manager, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP CIK for Microsoft SCCM, Citrix Workspace Suite, HP Smart Zero Client Services |
| Sustainability Information |
| TCO Certified |
TCO Certified Desktops 9 |
| ENERGY STAR Certified |
Yes |
| Dimensions & Weight |
| Width |
5 cm |
| Depth |
21 cm |
| Height |
21 cm |
| Weight |
1.323 kg |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
