| Marketing Description |

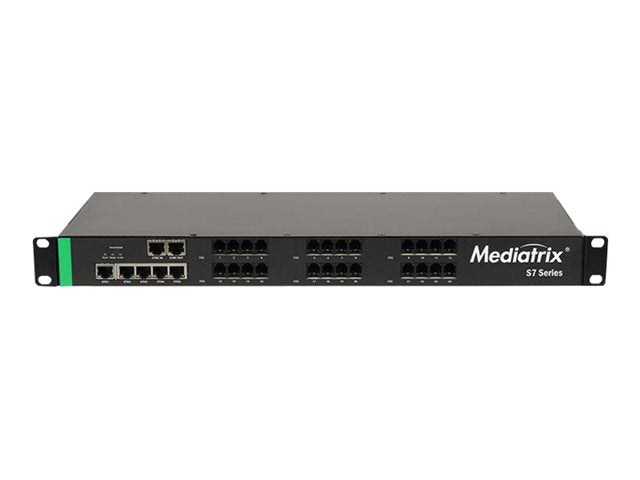

| The Mediatrix S7 Series of analog VoIP adaptors (ATAs) offers the ability to smoothly connect all IP and legacy equipment to a hosted or on premise IP-PBX. It is also the ideal solution to connect traditional PBXs and phones to an IP core network without impacting current customer base. The S7 allows operators and providers to use hybrid IP and analog telephone systems with a wide variety of cost-effective and easy-to-deploy applications including multi-tenant buildings, Hosted UC, and survivability for remote offices. |
| Product Features |
-
Interconnects any device to IP
The Mediatrix S7 Series links any analog connection to an IP network and delivers a rich feature set for a comprehensive VoIP solution.
-
Legacy PBX System Gateway
With FXS ports, local call switching, and userdefined call properties (including caller/calling ID), Mediatrix S7 Series gateways smoothly integrate into legacy PBXs.
-
Highly reliable fax and modem transmissions over IP
With T.38 and clear channel fax and modem passthrough capabilities, the Mediatrix S7 Series ensures seamless transport of voice and data services over IP networks.
-
Advanced mass management
The advanced provisioning capabilities deliver remarkable benefits to Mediatrix customers. Mediatrix enables centralized CPE management, a definite advantage to monitor the network, ensure service, and reduce operational costs.
|
| General |
| Device Type |
VoIP gateway |
| Height (Rack Units) |
1U |
| Width |
48.5 cm |
| Depth |
19.5 cm |
| Height |
4.4 cm |
| Weight |
3 kg |
| Networking |
| Form Factor |
Rack-mountable |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol |
UDP/IP, PPPoE, FTP, DHCP |
| Routing Protocol |
Static IP routing |
| Remote Management Protocol |
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, TR-069, TR-111, TR-104 |
| Features |
Firewall protection, NAT support, NAPT support, VLAN support, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, DiffServ support, manageable, IPv6 support, Deep Packet Inspection (DPI), Quality of Service (QoS), DHCP server, IPv4 support, DHCP client, Type of Service (ToS), router mode |
| Encryption Algorithm |
Triple DES, RSA, TLS, 128-bit AES, 256-bit AES |
| Authentication Method |
X.509 certificates |
| Compliant Standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| IP Telephony |
| VoIP Protocols |
SIP, RTP, SDP |
| Voice Codecs |
G.711, G.729a, G.726, T.38, G.729b |
| Telephony Interfaces |
24 phone (FXS) |
| IP Telephony Features |
Echo cancellation (G.168), call forwarding, adaptative jitter buffer, call waiting, call transfer, DTMF generation/detection |
| Communications |
| Protocols & Specifications |
ITU T.38 |
| Expansion / Connectivity |
| Interfaces |
5 x 1000Base-T - RJ-45
1 x synchronisation input - RJ-45
1 x synchronisation output - RJ-45
24 x FXS - RJ-11 |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
0 - 85% (non-condensing) |
