| Marketing Description |
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for Wi-Fi 6 Access Points now imply the need for faster speeds in the network.

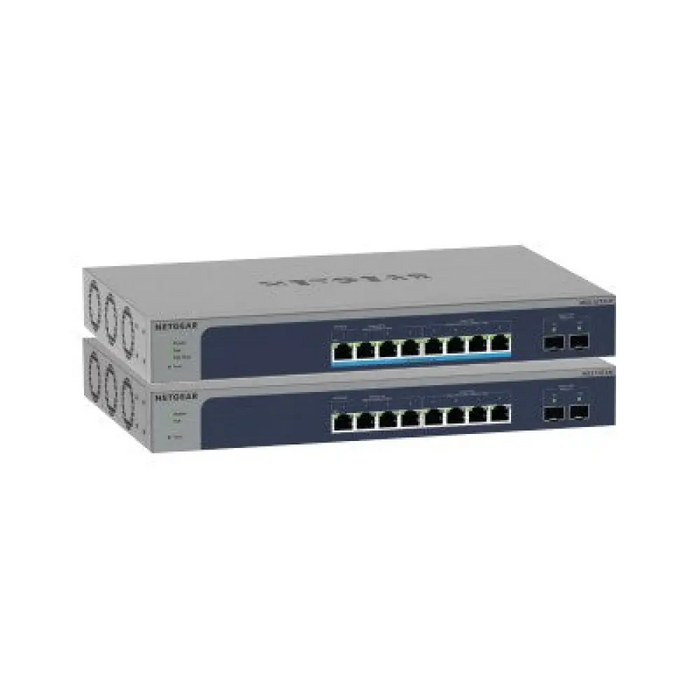

The MS510TXM 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support for deploying devices with multi-gig capabilities and speed, such as Wi-Fi 6 Access Points (eg. WAX610 from NETGEAR), multi-gig or 10G NAS.
NETGEAR Smart Switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.
To empower the Wireless and PoE applications, NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser. |
| Product Features |
-
Enhanced security
With support for Extensible Authentication Protocol (EAP), RADIUS, and TACACS+, this switch offers robust security features designed to protect your network from unauthorized access and ensure secure communication.
-
High performance
Boasting a fabric throughput of 140 Gbps and forwarding rates up to 14.8 Mpps, the NETGEAR Smart MS510TXM ensures efficient handling of network traffic, minimizing latency and maximizing data flow speeds.
-
Versatile connectivity
Featuring a mix of 100/1000/2.5G and 1/2.5/5/10GBase-T ports along with 10 Gigabit SFP+ uplinks, this switch offers flexible connection options to accommodate a wide range of devices and network layouts.
-
Advanced management
Equipped with cloud management capabilities, zero-touch provisioning (ZTP), and extensive remote management protocols, this switch simplifies network setup, monitoring, and management, allowing for seamless integration and maintenance.
-
Energy efficient
Incorporating Energy-Efficient Ethernet (EEE) and featuring 2 fans for optimal cooling, the MS510TXM operates efficiently, reducing power consumption and contributing to a lower total cost of ownership.
|
| General |
| Device Type |
Switch - 8 ports - L3 Lite - smart |
| Enclosure Type |
Rack-mountable, desktop |
| Ports |
4 x 100/1000/2.5G + 4 x 1/2.5/5/10GBase-T + 2 x 10 Gigabit SFP+ (uplink) |
| Performance |
Fabric throughput: 140 Gbps
Forwarding rate (64‑byte packets): 14.8 Mpps
2.5 Gbps copper latency (64-byte packets): 5.903 µs
2.5 Gbps copper latency (1518-byte packets): 6.040 µs
2.5 Gbps copper latency (9216-byte packets): 6.079 µs
10 Gbps copper latency (64-byte packets): 2.420 µs
10 Gbps copper latency (1518-byte packets): 2.501 µs
10 Gbps copper latency (9216-byte packets): 2.499 µs
10 Gbps fibre latency (64-byte packets): 1.257 µs
10 Gbps fibre latency (1518-byte packets): 1.337 µs
10 Gbps fibre latency (9216-byte packets): 1.348 µs |
| Capacity |
Packet buffer size: 2 MB
ACL entries (ingress): 100
VLANs supported: 256
IGMP groups: 256
Priority queues: 8
DHCP snooping entries: 256 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
10KB |
| Routing Protocol |
IGMP, STP, RSTP, MSTP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol |
IPv6, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, RADIUS, RSTP, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+ |
| Encryption Algorithm |
TLS 1.2 |
| Authentication Method |
RADIUS, Extensible Authentication Protocol (EAP), TACACS+ |
| Features |
ACL support, 802.1x authentication, Advanced QoS, DSCP support, DoS attack prevention, IGMP querier, IGMP snooping, egress rate limiting, EEE, cable test, 2 fans, GVRP, Voice VLAN, LLDP support, LLDP-MED, LACP, cloud managed, VoIP support, ZTP, DHCP snooping, protected ports, loop prevention, port mirroring, dual firmware images, firmware upgradable, store and forward, WRR, SP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, flow control, full duplex mode, block unknown multicast, DHCP client, Guest VLAN, DiffServ support, loopback detection, DNS client, BPDU, EAPOL, SNTP support, UDP, Syslog support |
| Compliant Standards |
IEEE 802.1x, IEEE 802.1p, IEEE 802.3az, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, UPnP |
| Processor |
: 1 GHz |
| RAM |
256 MB |
| Flash Memory |
64 MB |
| Status Indicators |
Power, fan, link/activity/speed |
| Expansion / Connectivity |
| Interfaces |
4 x 100/1000/2.5G RJ-45
4 x 1/2.5/5/10GBase-T RJ-45
2 x 10GBase-X SFP+ uplink |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
1 |
| Power Consumption Operational |
47 Watt |
| Miscellaneous |
| Included Accessories |
Rubber feet |
| Rack Mounting Kit |
Included |
| MTBF |
1,059,519 hours |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
33 cm |
| Depth |
20.6 cm |
| Height |
4.3 cm |
| Weight |
2.08 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
