| Marketing Description |

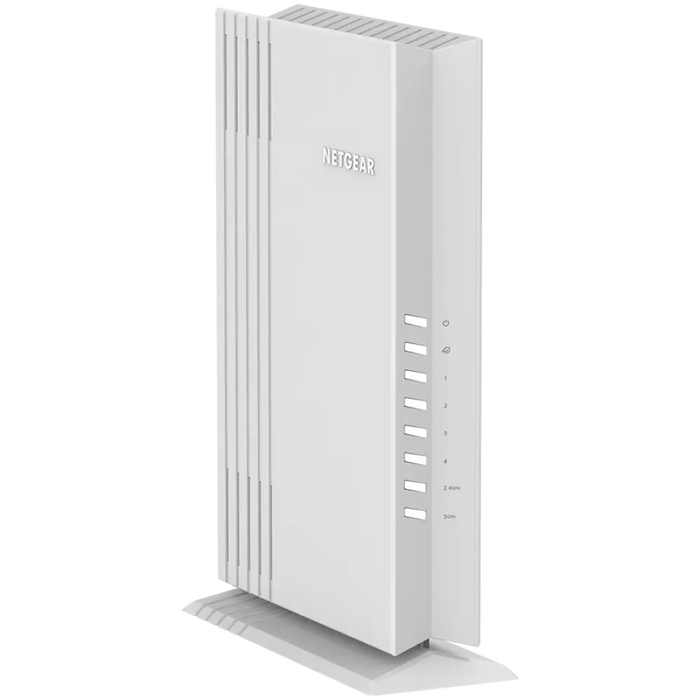

The NETGEAR Wi-Fi 6 AX3200 Dual-Band Wireless Access Point (AP) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports Dual-band concurrent Wi-Fi operations at 2.4 GHz and 5 GHz with a combined throughput of 3.2 Gbps (800 Mbps at 2.4 GHz and 2400 Mbps at 5 GHz).
The WAX206 Wi-Fi 6 Access Point provides standalone configuration with easy setup for a reliable, 802.11ax high-performance and cost-effective wireless solution. The WAX206 features a 2.5GbE uplink port for non-blocking Wi-Fi throughput and four gigabit Ethernet local area network ports for gigabit speed connectivity to wired devices. |
| Product Features |
- Easy setup in minutes with an intuitive Graphical User Interface (GUI)
- Comprehensive monitoring and management through a local web portal user interface
- Supports wireless security features (WPA, WPA2 and WPA3)
- MAC based Access Control List to protect against intruders
- Support Wi-Fi 6 802.11ax wireless clients to achieve maximum speed
- Backward compatible to allow legacy devices to connect at their fastest speed
- Wi-Fi 6 802.11ax technology
- Dual-band concurrent operation between 2.4GHz and 5GHz frequency ranges
|
| General |
| Device Type |
Wireless router - 4-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band |
2.4 GHz / 5 GHz |
| Performance |
Maximum throughput (2.4 GHz): 800 Mbps
Maximum throughput (5 GHz): 2400 Mbps |
| Capacity |
Maximum number of clients: 128
SSIDs total: 3 |
| Network / Transport Protocol |
HTTP |
| Remote Management Protocol |
HTTP |
| Encryption Algorithm |
WPA, WPA2, WPA3 |
| Authentication Method |
Radio Service Set ID (SSID) |
| Features |
VPN support, auto-uplink (auto MDI/MDI-X), MAC address filtering, WMM support, ACL support, SOHO |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n (draft 2.0), IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, CB, IEC 60950-1, LVD, EN 62368-1 |
| Status Indicators |
Power, LAN, Internet, 2.4/5 GHz |
| Expansion / Connectivity |
| Interfaces |
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
WAN: 1 x 100M/1G/2.5G Gigabit Ethernet - RJ-45 |
| Aerial |
| Aerial |
Internal |
| Power |
| Power Device |
External power adapter |
| Installed Qty |
1 |
| Miscellaneous |
| Cables Included |
1 x network cable |
| Dimensions & Weight |
| Width |
17 cm |
| Depth |
6.3 cm |
| Height |
24.2 cm |
| Weight |
504 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 3 years - response time: next business day
Technical support - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% |
