| Marketing Description |

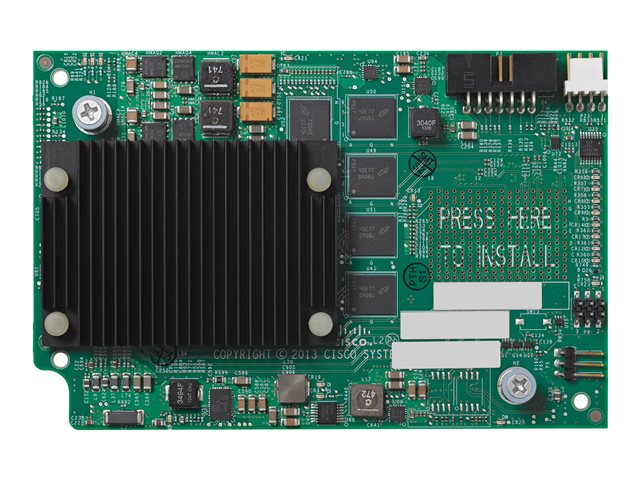

| The Cisco UCS Virtual Interface Card (VIC) 1380 is a 2-port, 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)-capable mezzanine adapter. This innovation is designed exclusively for the B200 M3 and M4 generation of Cisco UCS B-Series Blade Servers. |
| Product Features |
-
Stateless and agile
The capability to define, create, and use interfaces on demand provides a stateless and agile server infrastructure. The personality of the card is determined dynamically at boot time using the service profile associated with the server. The service profile is used to determine the number of PCIe interfaces, type (vNIC or vHBA), identity (MAC address) and World Wide Name (WWN), failover policy, bandwidth, and quality-of-service (QoS) policies.
-
VXLAN
VXLAN enables overlay networks for virtual machines (VMs), allowing them to communicate or move between hosts within or between your data centers. It encapsulates layer 2 frames within Layer 3 UDP packets making the entire infrastructure appear as a local layer 2 network.
-
NVGRE
NVGRE is a network virtualization technology that attempts to alleviate the scalability problems associated with large cloud computing deployments. It uses Generic Routing Encapsulation (GRE) to tunnel layer 2 packets over layer 3 networks.
-
UsNIC
User space NIC improves the performance of software applications using the Message Passing Interface (MPI) instead of sockets or other communication APIs. It does this through bypassing the OS kernel when sending and receiving networking packets. The applications interact directly with a Cisco UCS VIC, which improves the networking performance of your computing application.
-
RoCE
RoCE is a high bandwidth, low-latency protocol that has lower CPU utilization than traditional TCP/IP. It is targeted for HPC and Microsoft's SMB Direct (Windows Server 2012/R2) environments.
-
VMQ
VM Queue is a hardware virtualization technology for the efficient transfer of network traffic to a virtualized host OS. It uses DMA to transfer all incoming frames that should be routed to a receive queue to the receive buffers that are allocated for that queue.
-
DPDK
DPDK is designed for fast-packet processing on Intel Xeon processors. It is a set of software libraries that improves packet processing performance for the most demanding applications commonly found in telco and service provider networks.
-
NetFlow
NetFlow provides services for IP applications, including network traffic accounting, usage-based network billing, network planning, security, and network monitoring capabilities such as denial of service. NetFlow provides valuable information about network users and applications, peak usage times, and traffic routing.
-
Simplify Data Center Cabling
Cisco SingleConnect technology unifies LAN, SAN, and systems management.
|
| General |
| Device Type |
Network adapter |
| Form Factor |
Plug-in module |
| Networking |
| Data Link Protocol |
10 Gigabit Ethernet, 40 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE) |
| Performance |
Throughput: 80 Gbps |
| Features |
Jumbo Frames support, priority-based flow control, SR-IOV, iSCSI boot, RSS, QoS, Cisco SingleConnect technology |
| Compliant Standards |
IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb |
| Dimensions & Weight |
| Width |
9.3 cm |
| Height |
18.4 cm |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Compatibility Information |
| Designed For |
Cisco UCS B200 M3 PERFORMANCE-2 SmartPlay Solution, B200 M3 VALUE-2 SmartPlay Solution, B200 M4 Blade Server, B200 M4 Blade Server (Not sold Standalone ), B260 M4 Blade Server for SAP HANA, C220 M4 High-Density Rack Server (Large Form Factor Disk Drive Model), C220 M4 High-Density Rack Server (Small Form Factor Disk Drive Model), C220 M4 Rack Server, C220 M4 SFF (Not sold Standalone), C240 M4 High-Density Rack Server (Large Form Factor Disk Drive Model), C240 M4 High-Density Rack Server (Small Form Factor Hard Disk Drive Model), C240 M4 SFF (Not sold Standalone), C460 M4 Rack Server for SAP HANA Scale-Up, Mini Smart Play 8 B200 M3 Entry, Mini Smart Play 8 B200 M3 Entry Plus, Mini Smart Play 8 B200 M3 Value Plus, Smart Play 8 B200 M3 Performance-2 Expansion Pack, Smart Play 8 B200 M3 Performance-3 Expansion Pack, Smart Play 8 B200 M3 Value 2, Smart Play 8 B200 M4 Entry, Smart Play 8 B200 M4 Entry Expansion Pack, Smart Play 8 B200 M4 Performance, Smart Play 8 B200 M4 Performance Expansion Pack, Smart Play 8 B200 M4 Performance Plus Expansion Pack, Smart Play 8 B200 M4 Starter, Smart Play 8 B200 M4 Starter Expansion Pack, Smart Play 8 B200 M4 Value, Smart Play 8 B200 M4 Value Expansion Pack, Smart Play 8 B200 M4 Value Plus, Smart Play 8 B200 M4 Value Plus Expansion Pack, Smart Play 8 B260 M4 Entry Expansion Pack, Smart Play 8 B260 M4 Performance Expansion Pack, Smart Play 8 C220 M4 SFF Entry, Smart Play 8 C220 M4 SFF Entry Expansion Pack, Smart Play 8 C220 M4 SFF Entry Plus, Smart Play 8 C220 M4 SFF Entry Plus Expansion Pack, Smart Play 8 C220 M4 SFF Performance, Smart Play 8 C220 M4 SFF Performance Plus, Smart Play 8 C220 M4 SFF Value, Smart Play 8 C220 M4 SFF Value Plus, Smart Play 8 C240 M4 SFF Entry Plus, Smart Play 8 C240 M4 SFF Performance, Smart Play 8 C240 M4 SFF Performance Plus, Smart Play 8 C240 M4 SFF Value, Smart Play 8 C240 M4 SFF Value Expansion Pack, Smart Play 8 C240 M4 SFF Value Plus, VDI C240 M4 SFF |
