| Marketing Description |

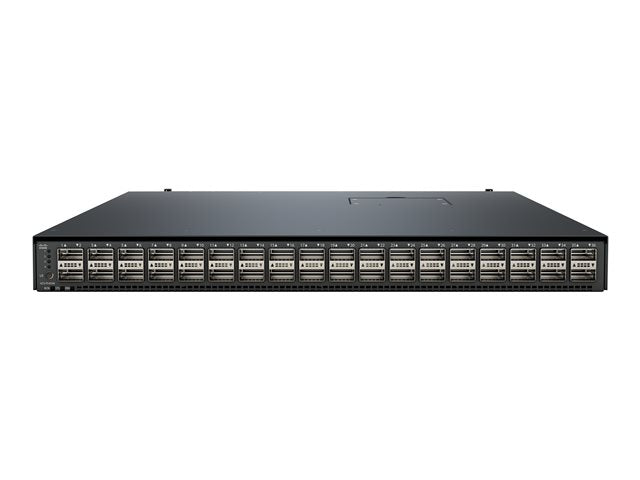

The Cisco UCS 6536 Fabric Interconnect (FI) is a core part of the Cisco Unified Computing System, providing both network connectivity and management capabilities for the system. The Cisco UCS 6536 Fabric Interconnect offers line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, Fiber Channel, NVMe over Fabric, and Fiber Channel over Ethernet (FCoE) functions.
The Cisco UCS 6536 Fabric Interconnect provides the communication backbone and management connectivity for the Cisco UCS X-Series compute nodes, UCS X9508 X-series chassis, UCS B-series blade servers, UCS 5108 B-series server chassis, and UCS C-series rack servers. All servers attached to a Cisco UCS 6536 Fabric Interconnect become part of a single, highly available management domain. In addition, by supporting a unified fabric, Cisco UCS 6536 Fabric Interconnect provides both LAN and SAN connectivity for all servers within its domain. |
| Product Features |
-
Management (Cisco UCS Manager/Cisco Intersight)
Allows all elements connected to the interconnects to participate in a single, highly available management domain.
-
Unified fabric
Decreases TCO by reducing the number of NICs, HBAs, switches, and cables required. Support Fiber Channel and Ethernet traffic concurrently in a Unified Fabric.
-
Fabric extender architecture
Scales to 20 blade chassis without adding complexity by eliminating the need for dedicated chassis management and blade switches and by reducing the number of cables needed. Provides deterministic latency for optimized application performance.
-
Performance powerful
Provides high-speed, low-latency connectivity to the chassis. Provides approximately 50 percent reduction in end-to-end system latency.
-
Lossless fabric
Provides a reliable, robust foundation for unifying LAN and SAN traffic on a single transport.
-
Priority-based Flow Control (PFC)
Simplifies management of multiple traffic flows over a single network link. Supports different classes of service, helping enable both lossless and classic Ethernet on the same fabric.
-
Systemwide bandwidth management
Helps enable consistent and coherent Quality of Service (QoS) throughout the system.
-
Rear ports
Helps keep cable lengths short and efficient.
-
Redundant hot-swappable fans and power supplies
Helps enable high availability in multiple configurations. Increases serviceability. Provides uninterrupted service during maintenance. Each fan module consists of two fan rotors. Redundancy of fan is implemented in the rotor level, with a total of 12 rotors across 6 fan modules.
|
| General |
| Device Type |
Switch - 36 ports - Managed |
| Enclosure Type |
Front to back airflow rack-mountable 1U |
| Subtype |
100 Gigabit Ethernet |
| Ports |
30 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 + 4 x 10/25/40/100 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel + 2 x 1/10/25/40/100 Gigabit QSFP28 |
| Performance |
Switching throughput: 7.42 Tbps
Latency: < 1 µs
Layer 2 hardware forwarding: 7.42 Tbps
Layer 2 hardware forwarding: 2.4 Bpps
Aggregate data rate: 14.84Tbps |
| Capacity |
Layer 2 VLANs: 3000
QoS hardware queues per port: 16 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9216 bytes |
| Routing Protocol |
IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol |
RMON |
| Features |
DCBX support, priority-based flow control, enhanced transmission selection, QoS, LACP support, LACP, CoS, FET, FCoE support, breakout capability, PFC, VLAN encapsulation, WRR, RPVST+, Quad-core CPU, 6 fan modules |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bg |
| RAM |
32 GB |
| Built-in Devices |
6 x fans |
| Status Indicators |
Power, status, beaconing |
| Expansion / Connectivity |
| Interfaces |
30 x 10/25/40/100Gbit LAN QSFP28 FCOE / uplink
4 x 10/25/40/100Gbit LAN or 8/16/32Gb Fibre Channel QSFP28 FCOE / unified port
2 x 1/10/25/40/100Gbit LAN QSFP28 FCOE / uplink
1 x 10/100/1000 Base-T RJ-45 management
1 x USB Type A
1 x serial (RS-232) RJ-45 console
2 x 10/100/1000 Base-T clustering |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Power Provided |
1100 Watt |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Consumption Operational |
348 Watt |
| Features |
Port side exhaust |
| Miscellaneous |
| Included Accessories |
Chassis accessory kit |
| Cables Included |
4 x 100GBase-CR4 passive copper cable - 3 m |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Software / System Requirements |
| Software Included |
Cisco Intersight, Cisco UCS Manager 4.2 |
| Dimensions & Weight |
| Width |
43.9 cm |
| Depth |
62.7 cm |
| Height |
4.4 cm |
| Weight |
11.6 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 95% (non-condensing) |
| Compatibility Information |
| Designed For |
P/N: UCSX-M7-SUSTAIN, UCSX-M7-XCCELERATE |
