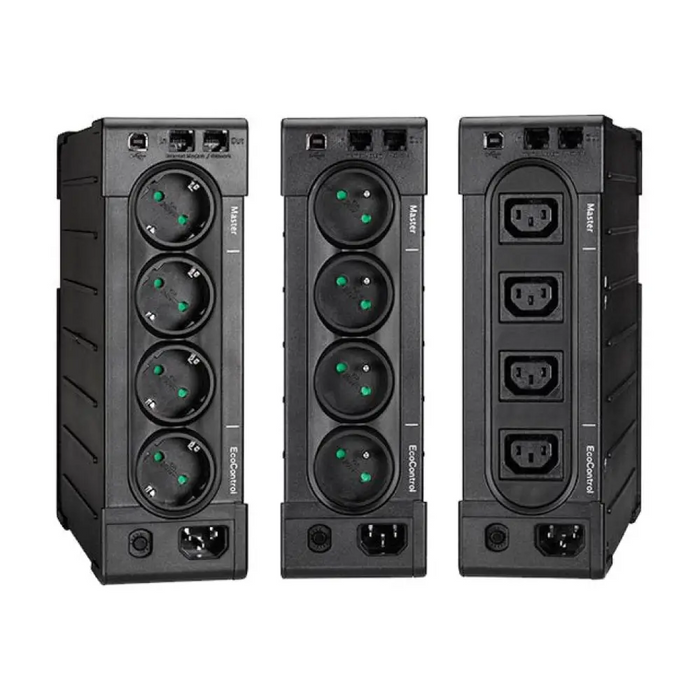

EATON UPS Ellipse PRO 1600 USB FR шкаф/кула - AC 230 V

EATON UPS Ellipse PRO 1600 USB FR шкаф/кула - AC 230 V - 1000 Watt - 1600 VA - USB - French 8 Output - 2U - 19 инча

Eaton
Код KXG0134736

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

EATON UPS Ellipse PRO 1600 USB FR rack/tower - AC 230 V - 1000 Watt - 1600 VA - USB - French 8 Output - 2U - 19inch

Manufacturer EATON
Manufacturer Part No ELP1600FR

Marketing Description
The Eaton Ellipse PRO 1600, 1600 VA, is a line interactive UPS specifically developed to protect workstations with demanding applications. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse PRO also provides effective protection against damaging surges.
The Ellipse PRO features a LCD display for real time status and measurements. This model includes 2 Eco Control power outlets, that enable energy savings up to 20 percent. It complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
General
Device Type UPS - external
Height (Rack Units) 2U
Rack Size 19"
Power Device
UPS Technology Line interactive
Input Voltage AC 230 V
Input Voltage Range AC 165 - 285 V
Input Voltage Range (Adjustable) AC 150 - 285 V
Frequency Provided 50/60 Hz
Frequency Required 50/60 Hz
Input Connectors 1 x power IEC 60320 C14
Power Output Connectors Details 4 x power CEE 7/5 (UPS and surge)
4 x power CEE 7/5 (surge)
Output Voltage AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Power Capacity 1000 Watt / 1600 VA
Dataline Surge Protection Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Surge Suppression Yes
Circuit Protection Circuit breaker
Battery
Quantity 2
Technology Lead Acid
Capacity 9 Ah
Run Time (Up To) 9 min at half load
5 min at 70% load
Networking
Remote Management Interface USB
Expansion / Connectivity
Interfaces 1 x management (USB) - 4 pin USB Type B
Miscellaneous
Cables Included USB cable - external
Rack Mounting Kit Optional
Features Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Compliant Standards CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
Software / System Requirements
Software Included Eaton UPS Companion
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Limited warranty - batteries - 3 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 35 °C
Humidity Range Operating 0 - 85%
Dimensions & Weight
Width 8.2 cm
Depth 39 cm
Height 27.5 cm
Weight 11.3 kg
