| Marketing Description |

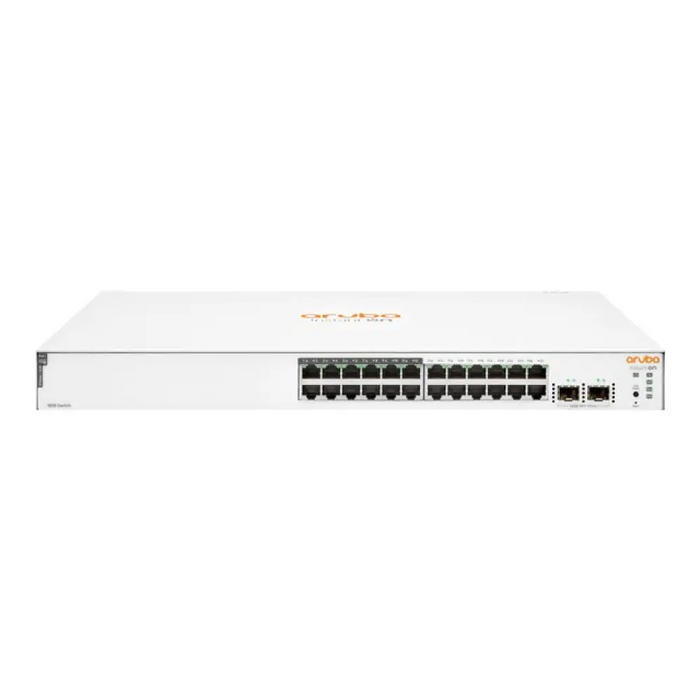

| The HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch is designed to meet the demands of modern businesses, offering a blend of performance, security, and manageability. With 24 Gigabit Ethernet ports, including 12 with PoE+ capability, it provides the necessary infrastructure to support both current and emerging network devices. Security is a priority, with features like SSL encryption and DoS protection ensuring a secure network environment. The switch is also cloud-managed, offering flexibility and ease in network management from anywhere. Performance is ensured, with a 52 Gbps switching capacity and up to 38.68 Mpps throughput, ensuring smooth data flow even in high-demand scenarios. Additionally, its energy-efficient design not only reduces operational costs but also supports environmental sustainability initiatives. Ideal for businesses looking for a scalable, secure, and high-performing networking solution. |
| Product Features |
-
Enhanced connectivity
With 24 Gigabit Ethernet ports including 12 PoE+ ports, this switch facilitates high-speed connections and power to devices, supporting a diverse range of network needs.
-
Robust security
Features like SSL encryption, Denial of Service (DoS) protection, and a Trusted Platform Module (TPM) ensure your network's integrity and safeguard against unauthorized access.
-
Efficient management
Cloud managed with support for SNMP, HTTP, and HTTPS protocols, this switch offers flexibility in monitoring and managing your network remotely, enhancing operational efficiency.
-
Optimized performance
Boasting a 52 Gbps switching capacity and up to 38.68 Mpps throughput, the switch ensures smooth data flow and high performance for demanding network environments.
-
Energy conscious
Incorporating ENERGY STAR Ethernet (EEE) and a smart power budget of 195 W, it optimizes power usage, reducing operational costs and environmental impact.
|
| General |
| Device Type |
Switch - 24 ports - smart |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
195 W |
| Performance |
Latency (100 Mbps): 5.2 µs
Latency (1 Gbps): 2.8 µs
Throughput: 38.68 Mpps
Switching capacity: 52 Gbps |
| MAC Address Table Size |
16000 entries |
| Jumbo Frame Support |
9216 bytes |
| Routing Protocol |
IGMP, IGMPv2 |
| Remote Management Protocol |
HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP |
| Encryption Algorithm |
SSL |
| Features |
Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support |
| Compliant Standards |
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at |
| Processor |
1 x ARM: 800 MHz |
| RAM |
512 MB SDRAM |
| Flash Memory |
256 MB |
| Status Indicators |
Port status, link/activity, speed, port duplex mode |
| Expansion / Connectivity |
| Interfaces |
12 x 1000Base-T RJ-45
2 x Gigabit LAN SFP
12 x 1000Base-T RJ-45 PoE+ |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Consumption Operational |
244.6 Watt |
| Miscellaneous |
| MTBF |
96.6 years |
| Compliant Standards |
AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 SecondEdition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 ThirdEdition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3 |
| Dimensions & Weight |
| Width |
44.3 cm |
| Depth |
25.3 cm |
| Height |
4.39 cm |
| Weight |
3.47 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime
Technical support - live chat - lifetime
Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
15 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 - 95% (non-condensing) |
