| Marketing Description |
| The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. |
| Product Features |
- Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies
- Zero Touch AV over IP with pre-configured L2 Multicast on all models (10G AV encoders and decoders) and SDVoE-ready
- Advanced Layer 3 feature set including IP Multinetting/CIDR, Static, PBR, VRRPv2, OSPFv3, PIM-SM, VxLAN, BGP4, VRF-Lite
- Optimized for "Spine and Leaf" redundant AV installations, with or without MLAG between spine switches
- Up to 320 TX / 320 RX (10 Gigabit) nodes all line rate with each other in a redundant spine and leaf architecture
|
| General |
| Device Type |

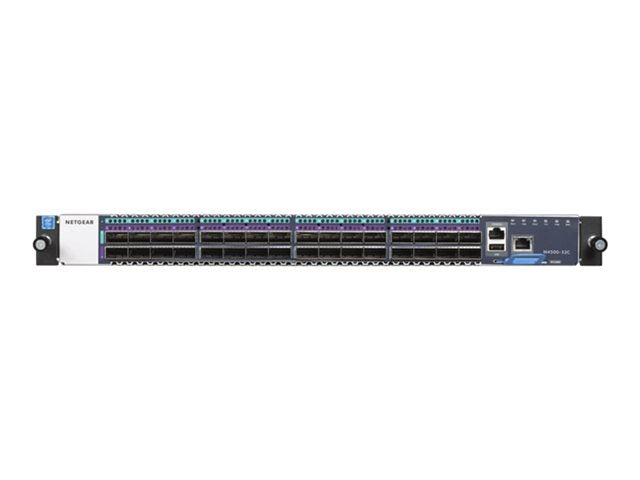

Switch - 32 ports - L3 - Managed |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
10 Gigabit Ethernet |
| Ports |
32 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28 |
| Performance |
Switching capacity: 6.4 Tbps
Throughput: 2 Bpps |
| Capacity |
Virtual interfaces (VLANs): 4000
IPv4 routes: 32000
IPv6 routes: 24000
Latency: 64
ARP entries: 8000
Multicast entries (IPv4): 2048
Multicast entries (IPv6): 2048
NDP entries: 2500
Static routes: 128
IGMP multicast groups: 4000
LAG groups: 64 |
| MAC Address Table Size |
32K entries |
| Jumbo Frame Support |
9KB |
| Routing Protocol |
BGP-4, IS-IS, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv2, Bidirectional Forwarding Detection (BFD), CIDR, RSTP, STP |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SCP, ASF, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Authentication Method |
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), MS-CHAP v.2 |
| Features |
Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, sFlow, MSTP support, DCBX support, DHCP snooping, ACL support, QoS, VRF-Lite, DAI, UDLD, LACP support, LLDP support, DHCP relay, RSPAN, dual firmware images, NDP, loop prevention, CoS, 802.1x authentication, 6 fans, Storm Control, IP source guard, Back Pressure Support, PFC, VXLAN, RBAC, SSM, AAA, VLAN Double Tagging (Q-in-Q), MLAG, SPAN, PIM, port trunking, MAB, BPDU Guard, 256MB packet buffer |
| Compliant Standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| Processor |
1 x Intel Atom C3558 |
| RAM |
8 GB DDR3L SDRAM |
| Built-in Devices |
128 GB SSD |
| Status Indicators |
Power, system, fan, link/activity/speed, PSU |
| Expansion / Connectivity |
| Interfaces |
32 x 100GBase-X QSFP28
1 x management (RS-232) RJ-45
1 x USB Type A
1 x management (Gigabit LAN) RJ-45 |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Power Provided |
750 Watt |
| Voltage Required |
AC 120/230 V |
| Power Consumption Operational |
426 Watt |
| Features |
Front-to-rear airflow |
| Miscellaneous |
| Cables Included |
Console cable |
| Rack Mounting Kit |
Included |
| MTBF |
281,359 hours |
| Compliant Standards |
BSMI, EN 60950, UL 1950, IEC 60950, CB, FCC CFR47 Part 15, LVD, RCM, BSMI CNS 14336-1, EN 61000-3-3:2013, YD/T993-1998, EN 61000-3-2:2014, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 55024:2010 Class A, T9254-2008 (Class A), EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
44 cm |
| Depth |
50.8 cm |
| Height |
4.32 cm |
| Weight |
9.78 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
