| Marketing Description |

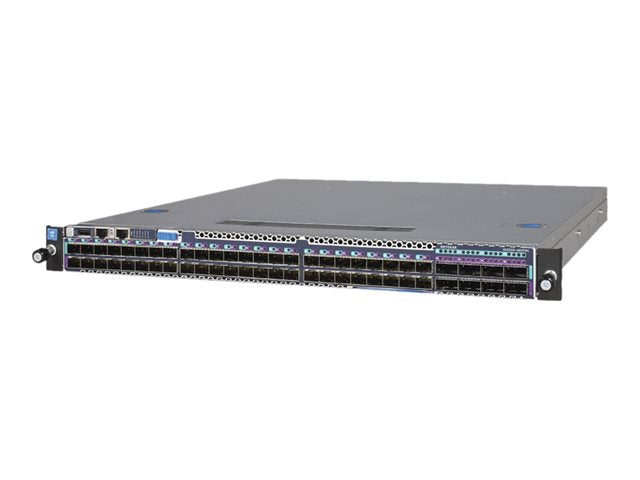

| The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a cost dramatically lower than other matrix switches. Removing the need for layer 3 PIM routing, these switches offer IGMP and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network. |
| Product Features |
-
Higher availability
To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications.
-
Pro AV installations
Installers opting to use M4500 switches model in their installation will find that it is already pre-configured out of the box.
|
| General |
| Device Type |
Switch - 48 ports - L3 - Managed |
| Enclosure Type |
Front to back airflow rack-mountable 1U |
| Subtype |
10 Gigabit Ethernet |
| Ports |
48 x 10 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 |
| Performance |
Switching capacity: 4 Tbps
Throughput: 2 Bpps |
| Capacity |
Virtual interfaces (VLANs): 4000
IPv4 routes: 32000
IPv6 routes: 24000
MLD interfaces: 2048
ARP entries: 8000
Multicast entries (IPv4): 2048
Multicast entries (IPv6): 2048
NDP entries: 2500 |
| MAC Address Table Size |
32K entries |
| Jumbo Frame Support |
9KB |
| Routing Protocol |
BGP-4, BGP, IGMPv2, PIM-SM, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, VRRPv2, CIDR, RSTP, STP |
| Remote Management Protocol |
SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI, IPv4, IPv6, TACACS+ |
| Authentication Method |
RADIUS, TACACS+ |
| Features |
ARP support, DiffServ support, IPv6 support, sFlow, STP support, VRRP support, DHCP snooping, QoS, VRF-Lite, IPv4 support, LACP support, DHCP relay, LACP, RSPAN, dynamic ARP protection, static routing, CoS, 6 fans, IP source guard, SSM, AAA, MLAG, BPDU Guard, 4+2 redundant fans, 256MB packet buffer |
| Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| Processor |
1 x Intel Atom C3558 |
| RAM |
8 GB DDR3L SDRAM |
| Built-in Devices |
128 GB SSD |
| Expansion / Connectivity |
| Interfaces |
48 x 25GBase-X SFP28
8 x 100GBase-X QSFP28
1 x serial (RS-232) RJ-45
1 x USB Type A |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Power Provided |
750 Watt |
| Voltage Required |
AC 110/240 V |
| Power Consumption Operational |
394 Watt |
| Miscellaneous |
| Included Accessories |
Mounting screws, rack rails kit, 2 mounting ears |
| MTBF |
289,052 hours |
| Compliant Standards |
BSMI, EN 60950, UL 1950, IEC 60950, CB, FCC CFR47 Part 15, LVD, RCM, BSMI CNS 14336-1, EN 61000-3-3:2013, YD/T993-1998, EN 61000-3-2:2014, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 55024:2010 Class A, T9254-2008 (Class A), EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
44 cm |
| Depth |
50.8 cm |
| Height |
4.32 cm |
| Weight |
9.73 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
